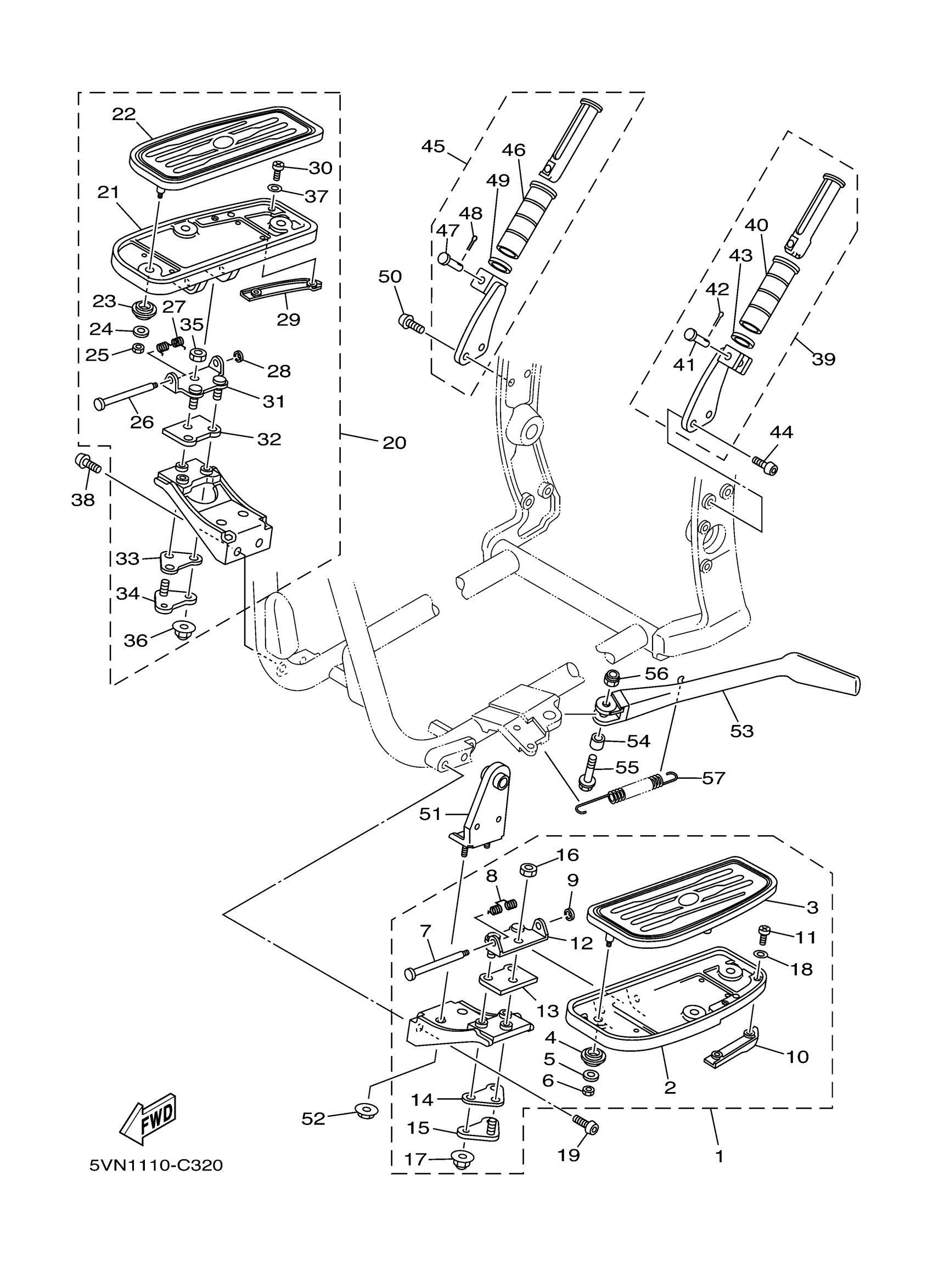

Yamaha XV17AMSC (ROAD STAR MIDNIGHT CA) 5VR2 2004 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

5VN-27410-00-00

Unavailable

2

FOOTREST

4NK-27451-10-00

Unavailable

3

COVER, FOOTREST

4WM-27413-00-00

Unavailable

4

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

5

WASHER PLATE 829771780000

90201-05033-00

$10.49

6

NUT, U

95617-05100-00

$9.49

7

SHAFT

3D8-27427-00-00

$7.99

8

SPRING, RETURN

4NK-27426-00-00

$6.99

9

CIRCLIP(53L)

99001-06600-00

$1.01

10

MOLE 1

4WM-27496-00-00

Unavailable

11

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

12

BRACKET, FOOTREST 2

5VN-27422-00-00

$29.99

13

DAMPER, FOOTREST

5VN-27414-00-00

$7.99

14

DAMPER, FOOTREST 2

5VN-27424-00-00

$7.99

15

PLATE, SOTPPER

5VN-27123-00-00

Unavailable

16

NUT(6TA)

95317-06600-00

Unavailable

17

. NUT, CAP

90176-06007-00

Unavailable

18

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

19

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

20

FRONT FOOTREST ASSY (RIGHT)

5VN-27420-00-00

Unavailable

21

FOOTREST

4NK-27461-10-00

Unavailable

22

COVER, FOOTREST

4WM-27423-00-00

Unavailable

23

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

24

WASHER PLATE 829771780000

90201-05033-00

$10.49

25

NUT, U

95617-05100-00

$9.49

26

SHAFT

3D8-27427-00-00

$7.99

27

SPRING, RETURN

4NK-27426-00-00

$6.99

28

CIRCLIP(53L)

99001-06600-00

$1.01

29

MOLE 2

4WM-27497-00-00

Unavailable

30

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

31

BRACKET, FOOTREST 2

5VN-27422-00-00

$29.99

32

DAMPER, FOOTREST

5VN-27414-00-00

$7.99

33

DAMPER, FOOTREST 2

5VN-27424-00-00

$7.99

34

PLATE, SOTPPER

5VN-27123-00-00

Unavailable

35

NUT(6TA)

95317-06600-00

Unavailable

36

. NUT, CAP

90176-06007-00

Unavailable

37

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

38

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

39

REAR FOOTREST ASSY 1

4WM-27430-11-00

Unavailable

40

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

41

PIN, CLEVIS

90240-06146-00

Unavailable

42

PIN, COTTER (648)

91490-20015-00

Unavailable

43

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

44

BOLT

90111-08002-00

Unavailable

45

REAR FOOTREST ASSY 2

4WM-27440-11-00

Unavailable

46

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

47

PIN, CLEVIS

90240-06146-00

Unavailable

48

PIN, COTTER (648)

91490-20015-00

Unavailable

49

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

50

BOLT

90111-08002-00

Unavailable

51

BRACKET 3

4WM-27443-10-00

Unavailable

52

NUT, SELF-LOCKING

90185-08169-00

Unavailable

53

STAND, SIDE

4WM-27311-00-00

Unavailable

54

COLLAR(4NK)

90387-1007K-00

Unavailable

55

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

56

NUT, U

90185-10037-00

Unavailable

57

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
