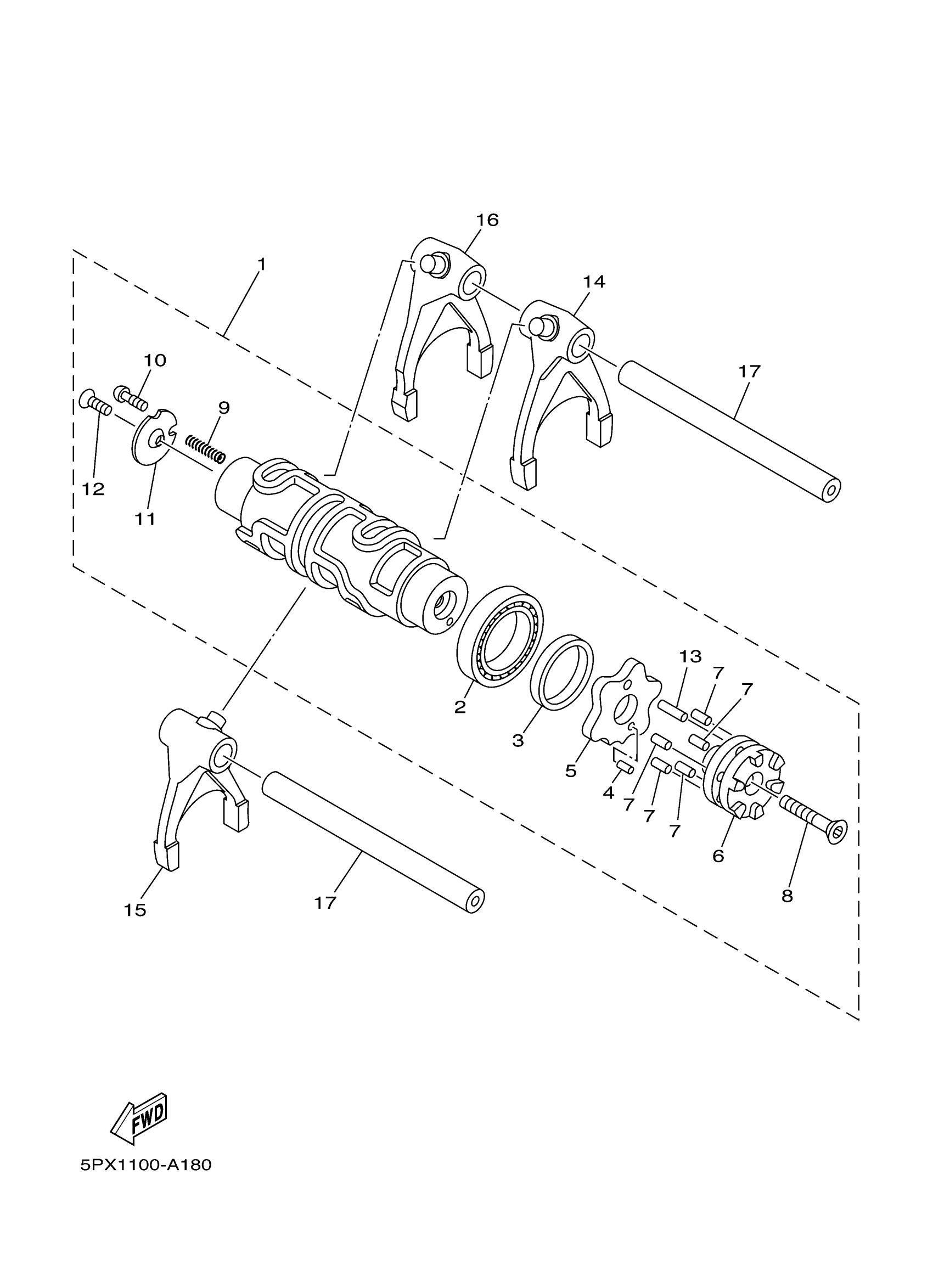

Yamaha XV17AMSC (ROAD STAR MIDNIGHT CA) 5VR2 2004 SHIFT CAM FORK Diagram

SHIFT CAM ASSY

5PX-18540-00-00

Unavailable

BRG,R-B (4X7)

93306-90602-00

$41.99

SPACER (26H)

90560-30234-00

Unavailable

PIN (2H7)

93603-10049-00

Unavailable

PLATE, STOPPER

4NK-18141-00-00

Unavailable

SEGMENT

4NK-18185-00-00

Unavailable

PIN,DOWEL (168)

93604-12037-00

$8.49

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

POINT, NEUTRAL

4UN-18542-00-00

$8.99

PLATE, SIDE 2

4UN-18566-00-00

$19.99

SCREW(3HX)

90149-05245-00

$8.49

PIN, DOWEL (409)

93604-16092-00

$3.18

FORK, SHIFT 1

4WM-18511-00-00

Unavailable

FORK, SHIFT 2

4WM-18512-00-00

Unavailable

FORK, SHIFT 3

5PX-18513-00-00

Unavailable

BAR, SHIFT FORK GUIDE 1

4NK-18531-00-00

Unavailable
