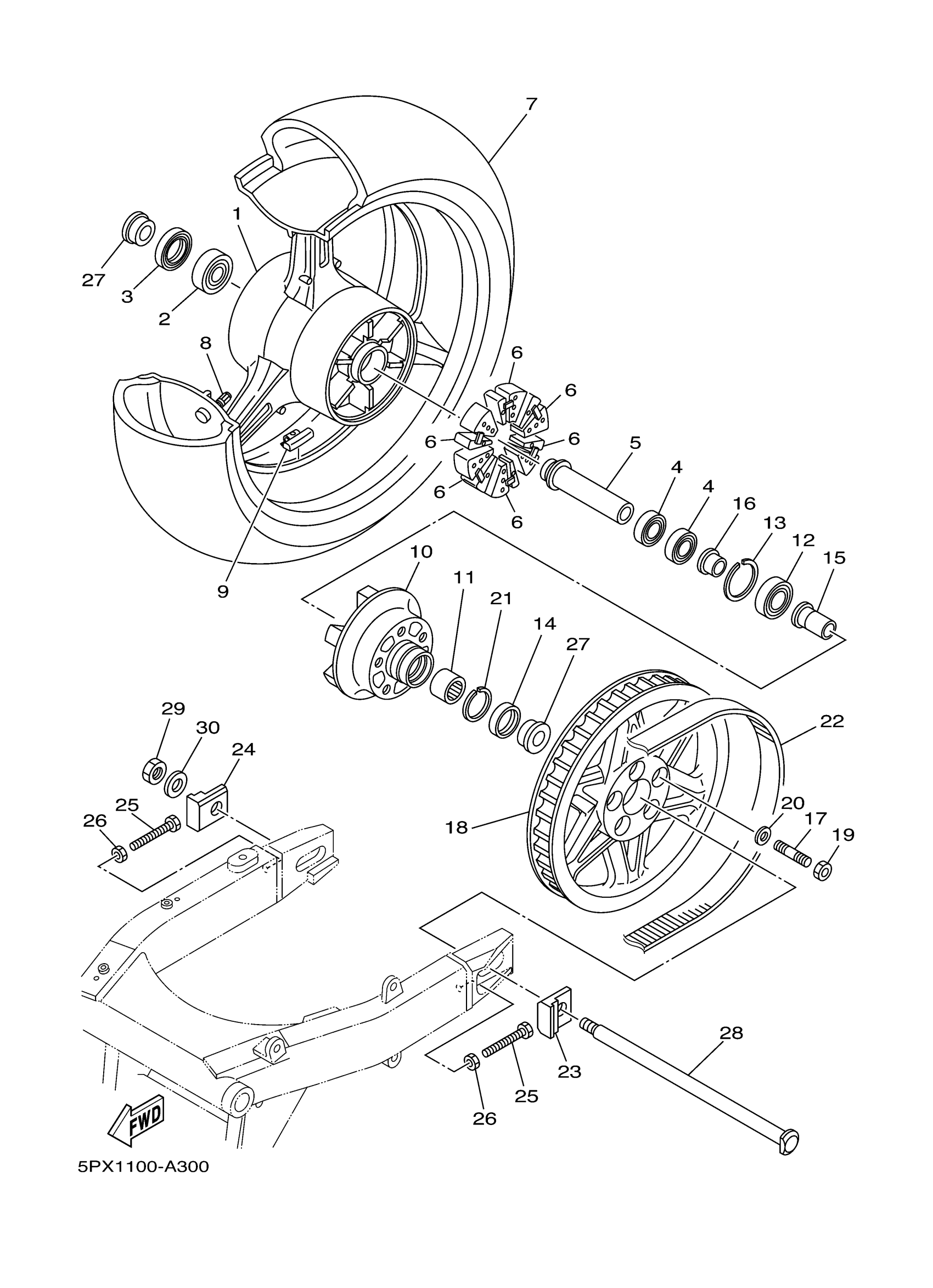

Yamaha XV1700PCRC (ROAD STAR WARRIOR CA) 5PX5 2003 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
5PX-25338-02-7B
Unavailable
5
SPACER, BEARING
5PX-25317-00-00
Unavailable
6
DAMPER
4WM-25364-00-00
Unavailable
7
TIRE (200/50ZR-17M/C75WBT020R)
94120-17008-00
Unavailable
7
TIRE (200/50 ZR-17M/C 75WD220)
94120-17009-00
Unavailable
9
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
10
CLUTCH, HUB
5PX-25366-00-00
Unavailable
13
CIRCLIP(26H)
99009-52500-00
Unavailable
14
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
15
COLLAR, WHEEL
4WM-25376-10-00
Unavailable
16
COLLAR, WHEEL
4WM-25377-00-00
Unavailable
17
BOLT, STUD
95617-12630-00
Unavailable
18
SPROCKET, DRIVEN (70T)
5PX-25470-00-00
Unavailable
19
NUT, U
95614-12100-00
Unavailable
20
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
21
CIRCLIP
93450-35163-00
Unavailable
22
BELT
5PX-46241-11-00
Unavailable
23
PULLER, CHAIN 1
5PX-25388-00-00
Unavailable
24
PULLER, CHAIN 2
5PX-25389-00-00
Unavailable
25
BOLT(3GM)
90101-08766-00
Unavailable
26
NUT(6TA)
95337-08600-00
Unavailable
27
COLLAR(3BC)
90387-202X9-00
Unavailable
28
AXLE, WHEEL
5PX-25381-00-00
Unavailable
29
NUT, SELF-LOCKING
90185-18009-00
Unavailable
30
WASHER, PLATE (1J7)
90201-18620-00
Unavailable
