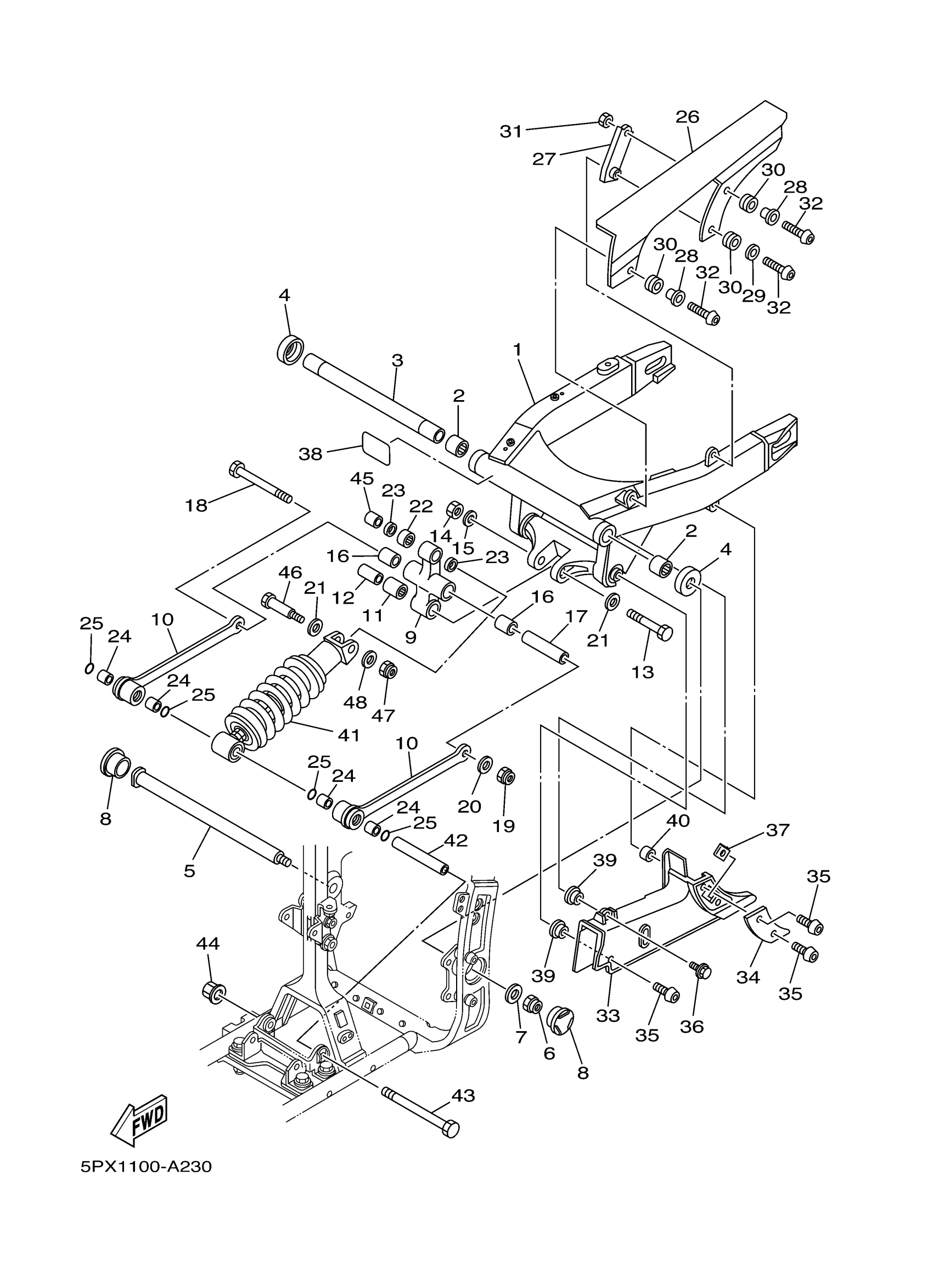

Yamaha XV1700PCRC (ROAD STAR WARRIOR CA) 5PX5 2003 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

5PX-22110-00-00

Unavailable

2

BEARING, CYLINDRICAL(36Y)

93317-42550-00

Unavailable

3

BUSH

5PX-22184-00-00

Unavailable

4

COVER, THRUST 1

5JJ-22128-00-00

$35.99

5

SHAFT, PIVOT

5PX-22141-10-00

$70.99

6

NUT, SELF-LOCKING

90185-18009-00

$18.99

7

WASHER, PLATE (5K7)

90201-18264-00

$8.49

8

COVER

4KM-2219X-00-00

$14.49

9

ARM, RELAY

5PX-2217A-00-00

Unavailable

10

ARM 1

4WM-2217M-00-00

Unavailable

11

BEARING, CYLINDRICAL(2GH)

93317-42060-00

$46.99

12

COLLAR (34L)

90387-122J6-00

Unavailable

13

BOLT

90101-12002-00

Unavailable

14

NUT, U (4PM)

95617-12100-00

$4.16

15

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

16

BEARING, CYLINDRICAL(2GH)

93317-41761-00

Unavailable

17

COLLAR(2GH)

90387-126T1-00

Unavailable

18

BOLT(2GH)

90101-12673-00

Unavailable

19

NUT, U (4PM)

95617-12100-00

$4.16

20

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

21

WASHER, PLATE

90201-13013-00

Unavailable

22

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

23

OIL SEAL

93109-17071-00

Unavailable

24

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

Unavailable

25

O-RING (1L9)

93210-18322-00

Unavailable

26

CASE, CHAIN

5PX-22311-00-00

Unavailable

27

STAY, CHAIN CASE

5PX-2213J-01-00

Unavailable

28

COLLAR (8G8)

90387-06648-00

Unavailable

29

WASHER, PLATE

90201-06095-00

Unavailable

30

GROMMET

90480-13004-00

Unavailable

31

NUT(6TA)

95317-06600-00

Unavailable

32

BOLT

90111-06038-00

Unavailable

33

CASE, CHAIN 2

5PX-22312-00-00

Unavailable

34

PLATE, GUIDE 1

5PX-22341-00-00

Unavailable

35

SCREW(3XV)

90149-06298-00

Unavailable

36

BOLT, WITH WASHER

90119-06001-00

Unavailable

37

NUT, SPRING(4ES)

90183-06069-00

Unavailable

38

SEAL

4DN-21268-00-00

Unavailable

39

COLLAR

90387-065T2-00

Unavailable

40

COLLAR

90387-06106-00

Unavailable

41

SHOCK ABSORBER ASSY, REAR

5PX-22210-20-00

Unavailable

42

COLLAR

90387-1214E-00

Unavailable

43

BOLT(3GD)

90101-12695-00

Unavailable

44

NUT, U FLANGE

95607-12200-00

Unavailable

45

COLLAR(3TJ)

90387-127W0-00

Unavailable

46

BOLT(1WG)

90101-10659-00

Unavailable

47

NUT, U

95617-10100-00

Unavailable

48

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
