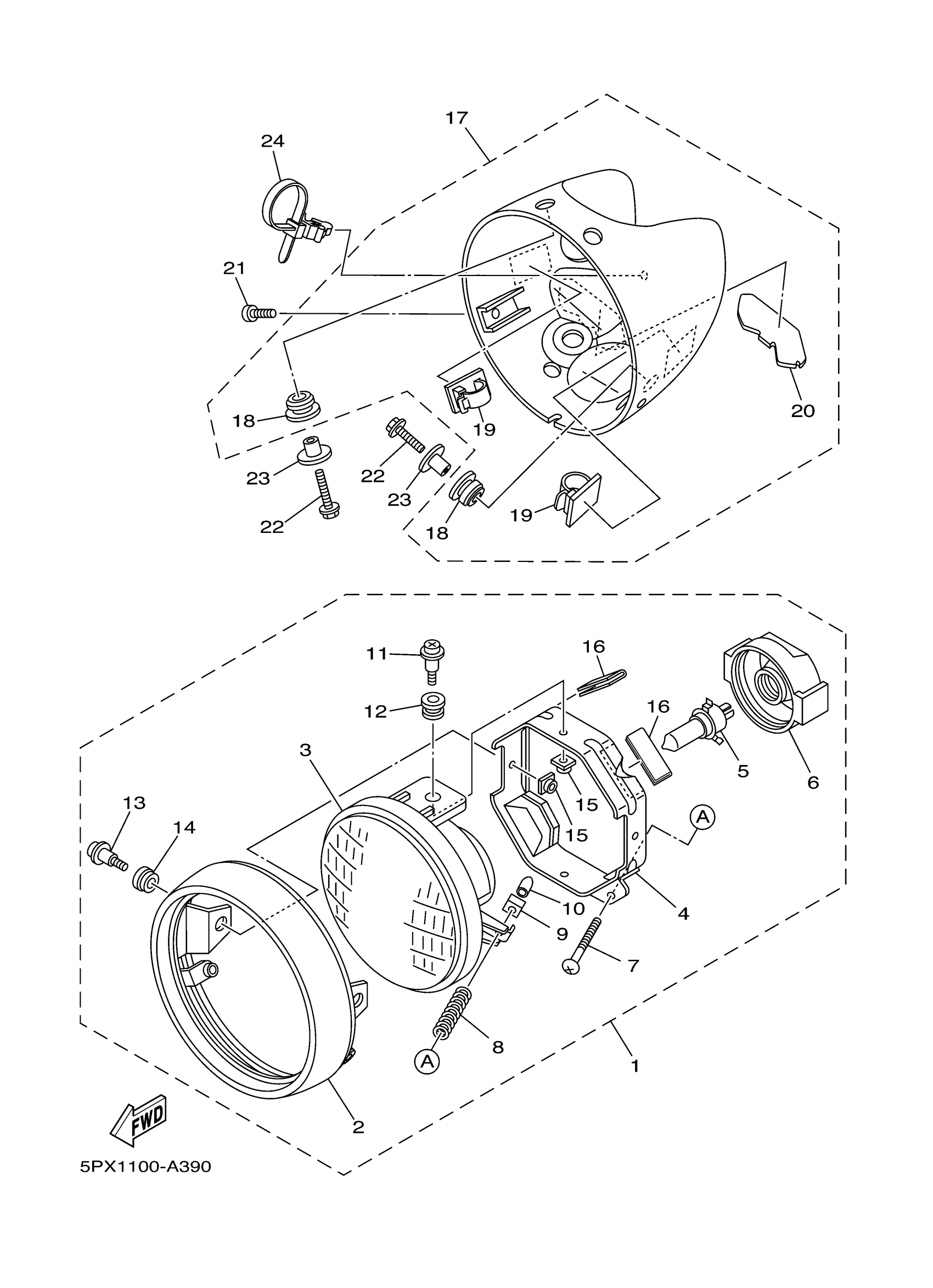

Yamaha XV1700PCRC (ROAD STAR WARRIOR CA) 5PX5 2003 HEADLIGHT Diagram
#
Description
Price
1
HEADLIGHT UNIT ASSY
5PX-84310-01-00
Unavailable
2
. RIM, HEADLIGHT
5PX-84315-00-00
Unavailable
16
SEAL
5PX-21669-01-00
Unavailable
17
BODY ASSY
5PX-84330-00-00
Unavailable
18
DAMPER, HEADLIGHT 1
5PX-84366-00-00
Unavailable
19
CLAMP(4FM)
90464-13185-00
Unavailable
20
PLATE, GUIDE
5PX-8413G-00-00
Unavailable
21
SCREW, BIND(4DN)
98980-05014-00
Unavailable
22
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
23
COLLAR
90387-06175-00
Unavailable
24
CLAMP(2TV)
90464-10112-00
Unavailable
