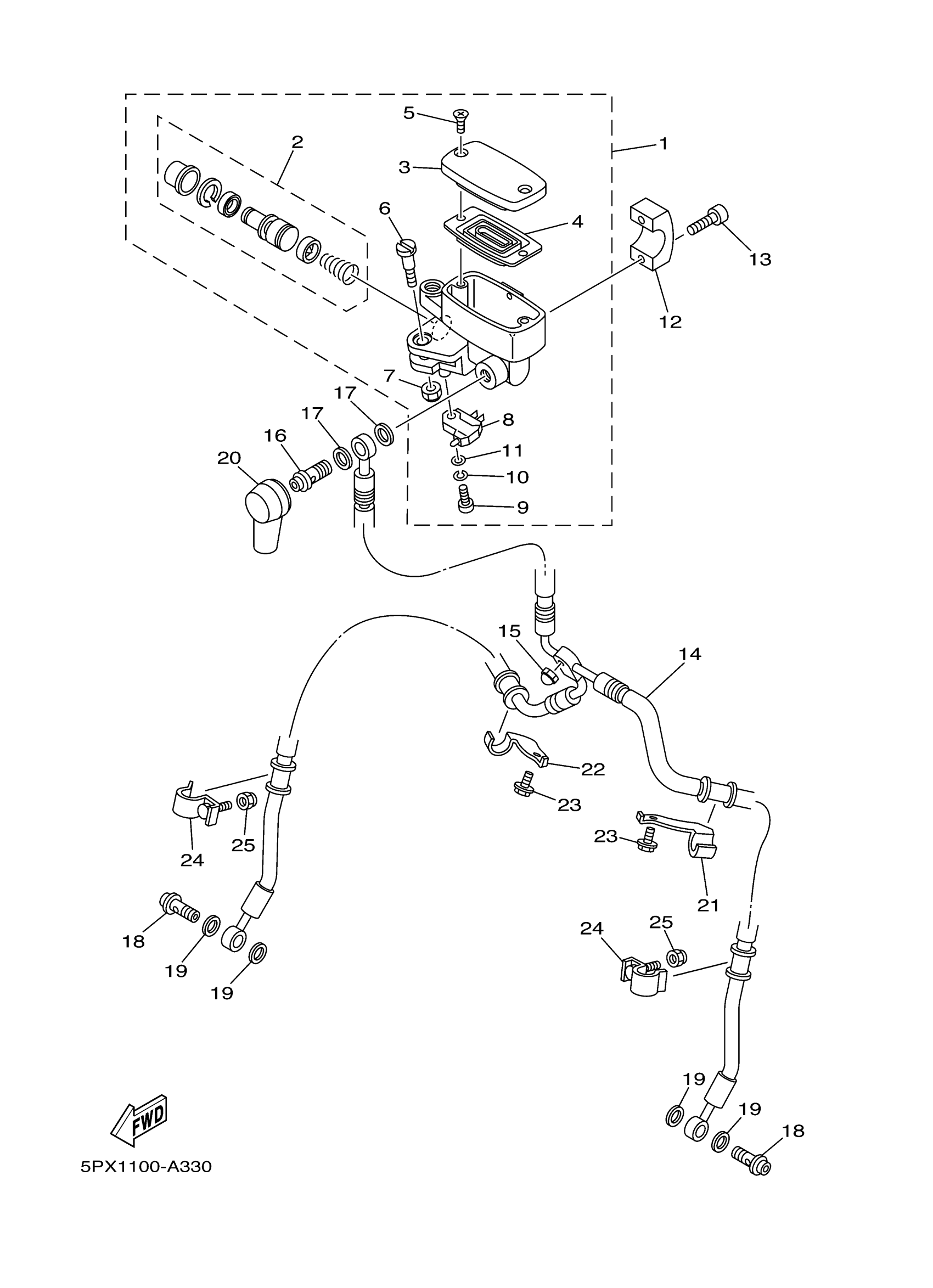

Yamaha XV1700PCRC (ROAD STAR WARRIOR CA) 5PX5 2003 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5PX-W2587-01-00

Unavailable

2

CYLINDER KIT, MASTER

5PX-W0041-00-00

$75.99

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW, PAN HEAD

98511-04012-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

HOSE, BRAKE 1

5PX-25872-00-00

Unavailable

15

NUT(4MY)

95307-06800-00

$3.82

16

BOLT, UNION

90401-10172-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

21

HOLDER, BRAKE HOSE

5PX-25886-00-00

Unavailable

22

HOLDER, BRAKE HOSE

5PX-25887-00-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

HOLDER, BRAKE HOSE 1

5PX-25875-00-00

Unavailable

25

NUT(4MY)

95307-06800-00

$3.82
