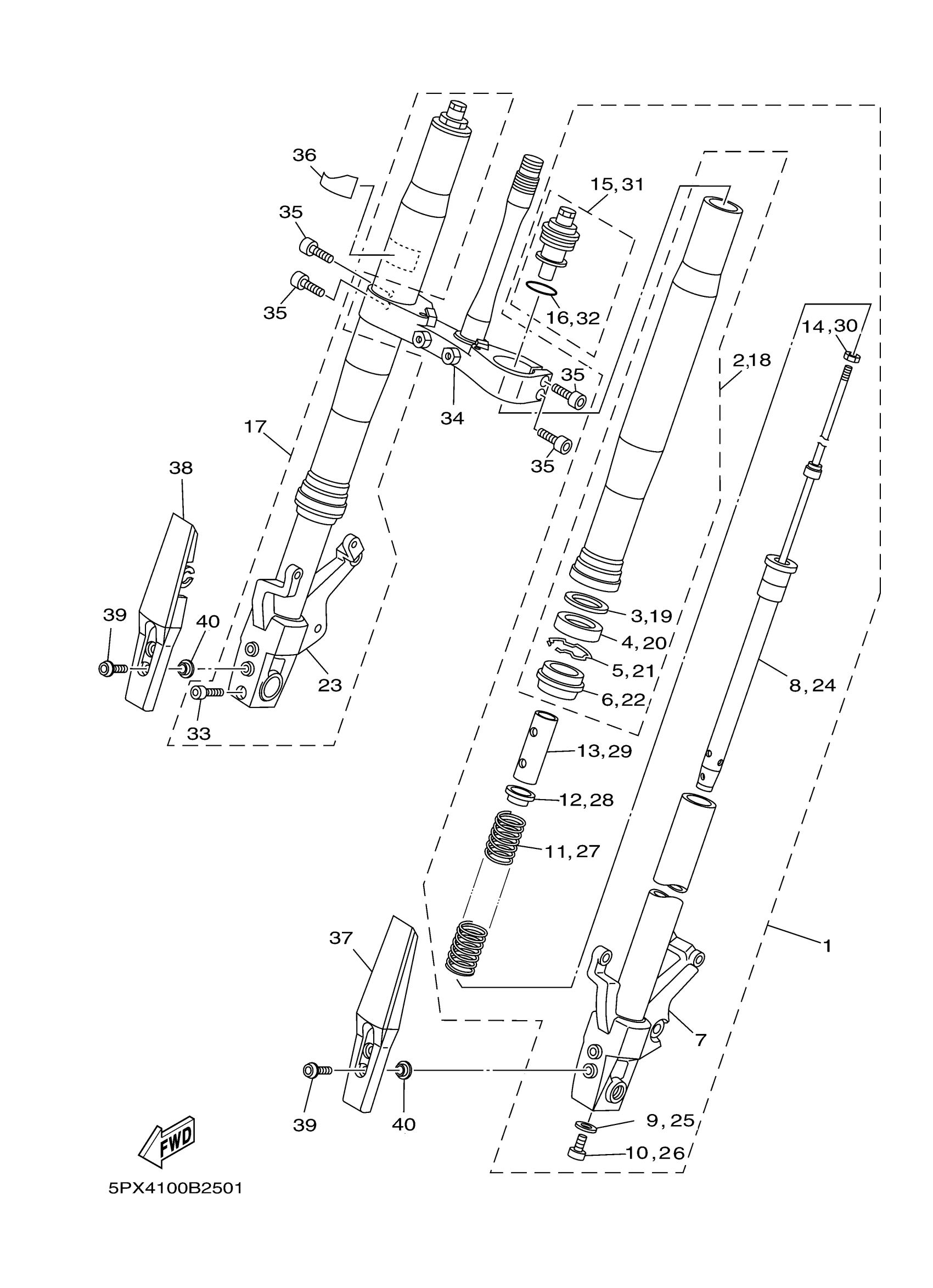

Yamaha XV1700PCRC (ROAD STAR WARRIOR CA) 5PX5 2003 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5PX-23102-03-00
Unavailable
2
. TUBE, OUTER (RIGHT)
5PX-23136-01-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
5PX-23170-02-00
Unavailable
10
BOLT
3R4-23181-L0-00
Unavailable
11
. SPRING, FRONT FORK
5PX-23141-00-00
Unavailable
12
SEAT, SPRING UPPER
4XV-23142-00-00
Unavailable
13
. SPACER
4XV-23118-00-00
Unavailable
15
. BOLT, CAP
5PX-23111-00-00
Unavailable
16
O-RING
3XJ-23147-L0-00
Unavailable
17
FRONT FORK ASSY (R.H)
5PX-23103-03-00
Unavailable
18
. TUBE, OUTER (RIGHT)
5PX-23136-01-00
Unavailable
23
.. INNER TUBE COMP 2
5PX-23120-00-00
Unavailable
24
. CYLINDER COMP, FRONT FORK
5PX-23170-02-00
Unavailable
26
BOLT
3R4-23181-L0-00
Unavailable
27
. SPRING, FRONT FORK
5PX-23141-00-00
Unavailable
28
SEAT, SPRING UPPER
4XV-23142-00-00
Unavailable
29
. SPACER
4XV-23118-00-00
Unavailable
31
. BOLT, CAP
5PX-23111-00-00
Unavailable
32
O-RING
3XJ-23147-L0-00
Unavailable
33
BOLT,SOCKET
91314-08040-00
Unavailable
34
UNDER BRACKET COMP.
5PX-23340-00-00
Unavailable
35
BOLT,SOCKET
91314-08030-00
Unavailable
36
SEAL
5PX-23844-00-00
Unavailable
37
COVER, UNDER 1
5PX-23123-00-7B
Unavailable
38
COVER, UNDER 2
5PX-23133-00-7B
Unavailable
39
SCREW(3XV)
90149-06298-00
Unavailable
40
COLLAR
90387-06050-00
Unavailable
