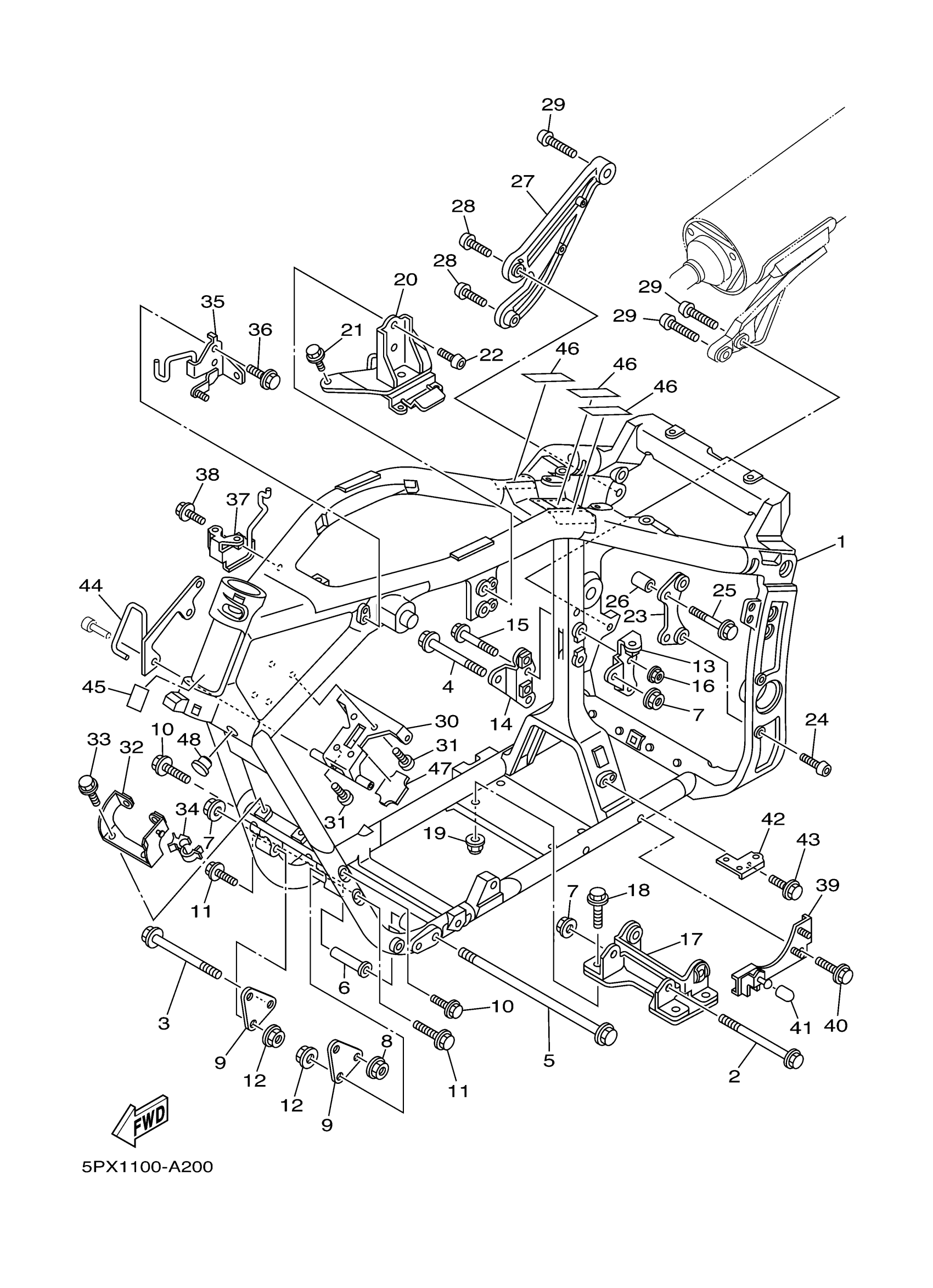

Yamaha XV1700PCRC (ROAD STAR WARRIOR CA) 5PX5 2003 FRAME Diagram
#
1
FRAME COMP.
5PX-21110-00-00
Unavailable
2
BOLT, FLANGE
90105-12087-00
Unavailable
3
BOLT, FLANGE
90105-12016-00
Unavailable
5
BOLT, WASHER BASED
90105-126A6-00
Unavailable
6
BOLT, ENGINE ADJUSTING
5PX-21495-01-00
Unavailable
10
BOLT, FLANGE
90105-10049-00
Unavailable
13
STAY, ENGINE 2
5PX-21315-00-00
Unavailable
14
STAY, ENGINE 3
5PX-21316-00-00
Unavailable
16
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
17
STAY, ENGINE 5
5PX-21318-00-00
Unavailable
18
BOLT, FLANGE
95817-10030-00
Unavailable
19
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
20
STAY, ENGINE 3
5PX-21317-00-00
Unavailable
21
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
22
BOLT
90111-10003-00
Unavailable
23
STAY 1
5PX-2137F-00-00
Unavailable
24
BOLT
90111-10009-00
Unavailable
25
BOLT, FLANGE
90105-10049-00
Unavailable
26
COLLAR
90387-10013-00
Unavailable
27
STAY, MUFFLER 1
5PX-21445-00-00
Unavailable
28
BOLT
90111-10006-00
Unavailable
29
SCREW, PAN HEAD (22U)
90157-10043-00
Unavailable
30
BRACKET, COIL
99999-03552-00
Unavailable
31
BOLT,SOCKET
91317-06025-00
Unavailable
32
BRACKET, REGULATOR
5PX-2128A-00-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
CLAMP(4GY)
90464-20191-00
Unavailable
35
HOLDER,WIRE 1
5PX-21597-11-00
Unavailable
36
BOLT, FLANGE
95817-06016-00
Unavailable
37
HOLDER, WIRE 2
5PX-21598-00-00
Unavailable
38
BOLT, FLANGE
95817-06016-00
Unavailable
39
BRACKET, HORN
5PX-21343-00-00
Unavailable
40
BOLT, WASHER BASED(4KG)
90105-060A0-00
Unavailable
41
STOPPER, MAIN STAND
3VR-27114-00-00
Unavailable
42
BRACKET, SWITCH
5PX-21453-00-00
Unavailable
43
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
44
HOLDER, CABLE
5PX-21161-00-00
Unavailable
45
SEAL
5PX-21268-00-00
Unavailable
46
SEAL
5PX-21269-00-00
Unavailable
47
SHEET 1
5PX-21266-00-00
Unavailable
48
PLUG
90338-15110-00
Unavailable
