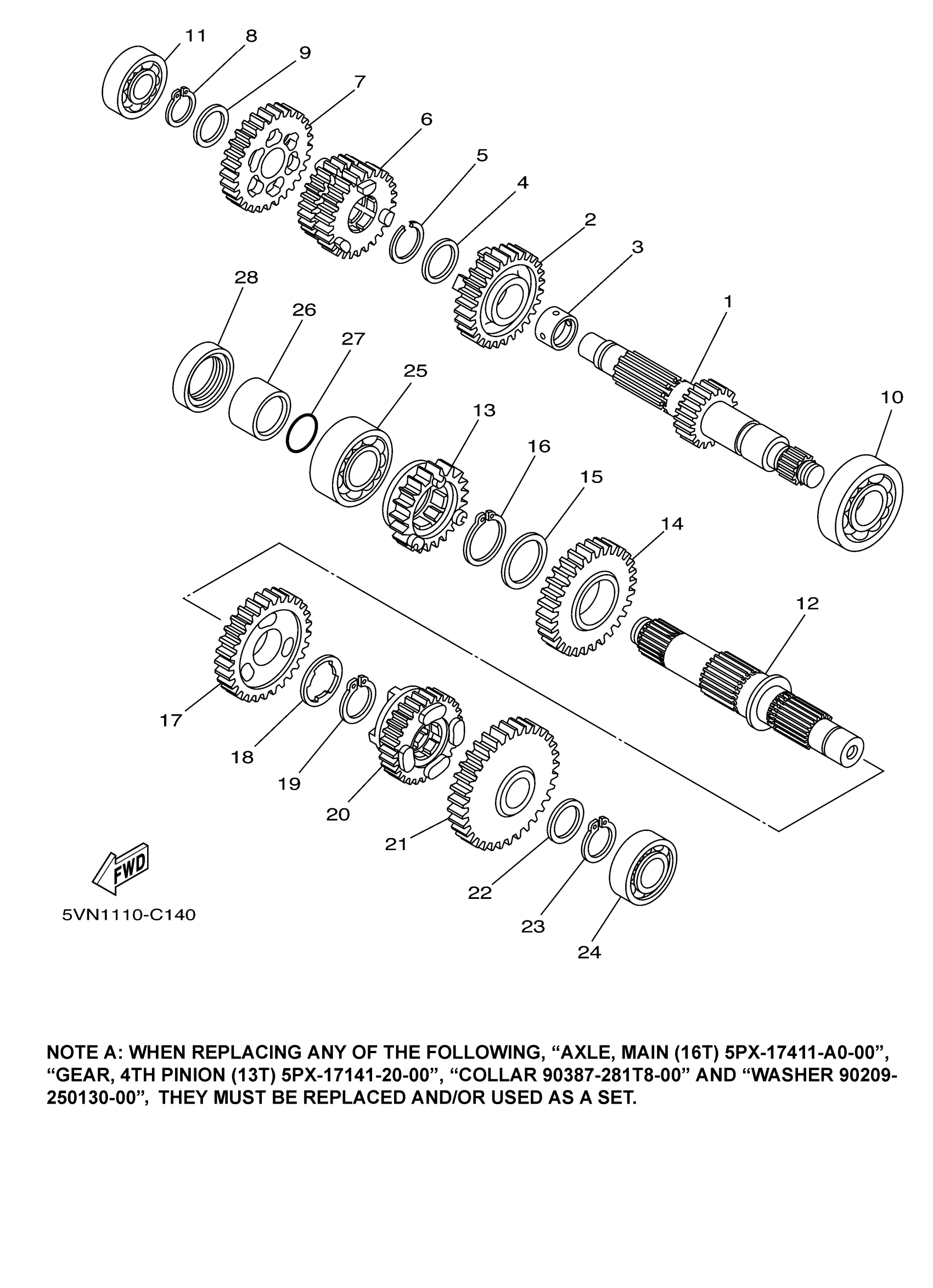

Yamaha XV1700PCRC-B (ROAD STAR WARRIOR CA) 5PX8 2003 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (16T)

5PX-17411-A0-00

Unavailable

2

GEAR, 4TH PINION (31T)

5PX-17141-20-00

Unavailable

3

COLLAR(2GH)

90387-281T8-00

Unavailable

4

WASHER

90209-25013-00

Unavailable

5

CIRCLIP (2H7)

93440-28062-00

$8.49

6

GEAR, 2ND PINION (25T/19T)

5PX-17121-00-00

Unavailable

7

GEAR, 5TH PINION (30T)

5PX-17151-00-00

Unavailable

8

CIRCLIP (4H7)

93410-23056-00

$7.49

9

WASHER, PLATE(1FK)

90201-232K5-00

Unavailable

10

BEARING

93306-37806-00

Unavailable

11

BEARING

93306-30441-00

$63.99

12

AXLE, DRIVE

4WM-17421-00-00

Unavailable

13

GEAR, 5TH WHEEL (24T)

5PX-17251-00-00

Unavailable

14

GEAR, 2ND WHEEL

4NK-17221-01-00

$118.99

15

WASHER (26H)

90209-32231-00

Unavailable

16

CIRCLIP (371)

93440-34025-00

Unavailable

17

GEAR, 3RD WHEEL

4NK-17231-01-00

Unavailable

18

WASHER (3J3)

90209-27192-00

Unavailable

19

CIRCLIP (3J3)

93440-30077-00

Unavailable

20

GEAR, 4TH WHEEL (24T)

5PX-17241-01-00

Unavailable

21

GEAR, 1ST WHEEL (38T)

5PX-17211-00-00

Unavailable

22

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

23

CIRCLIP (256)

93410-25017-00

Unavailable

24

BRG,R-B 6205DU8 52MM NK

93306-20550-00

Unavailable

25

BEARING

93305-20607-00

Unavailable

26

COLLAR

90387-3015P-00

Unavailable

27

O-RING(36Y)

93210-30660-00

Unavailable

28

OIL SEAL

93103-38184-00

Unavailable
