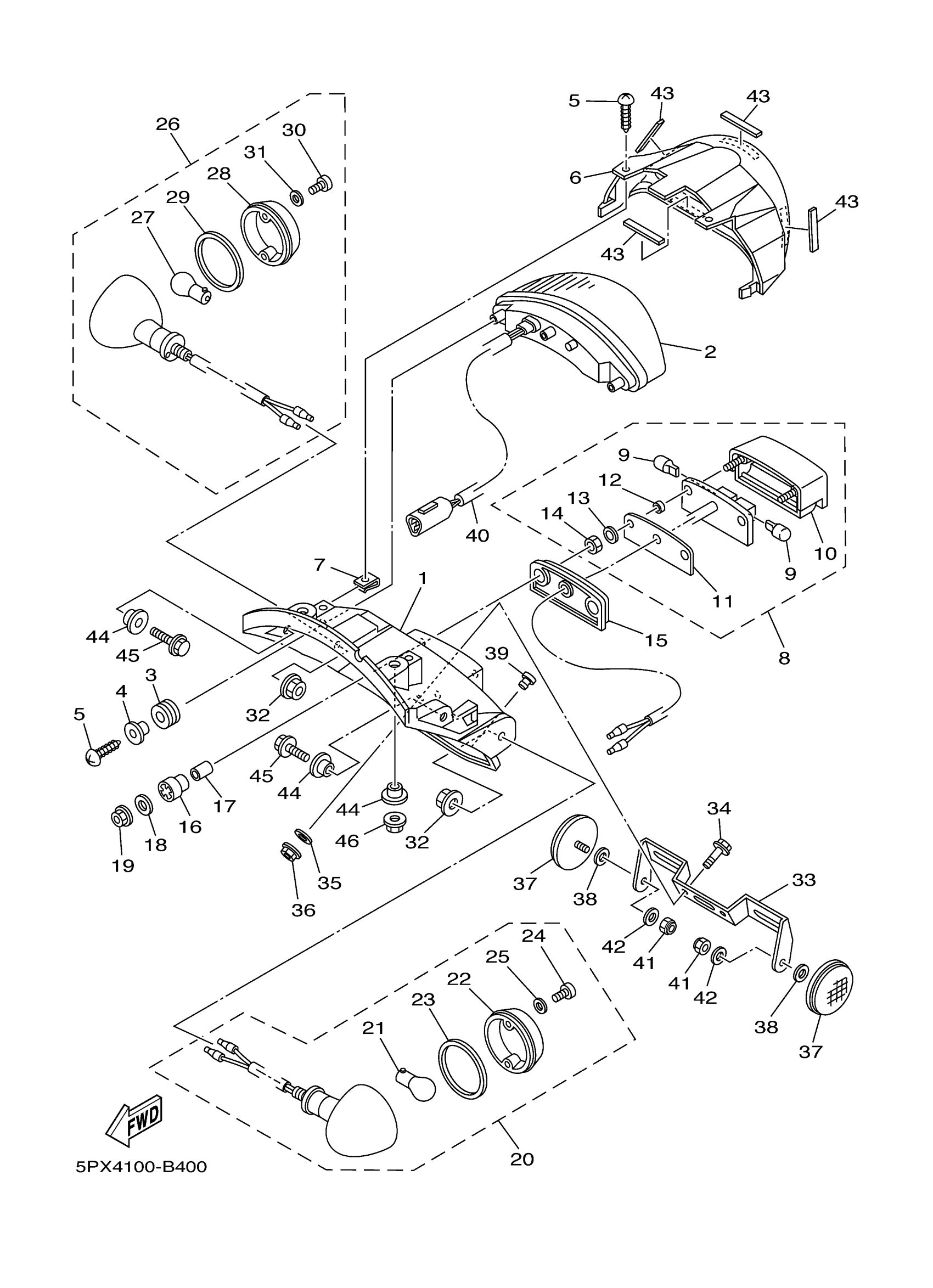

Yamaha XV1700PCRC-B (ROAD STAR WARRIOR CA) 5PX8 2003 TAILLIGHT Diagram

#

Description
Price

1

BASE, TAILLIGHT

5PX-84711-00-00

Unavailable

2

TAILLIGHT UNIT ASSY

5PX-84710-00-00

Unavailable

3

DAMPER

5PX-84553-00-00

$3.64

4

COLLAR

5PX-84557-00-00

$3.74

5

SCREW, TRUSS TAP.

97707-50012-00

$4.63

6

COVER, TAILLIGHT

5PX-84716-00-00

Unavailable

7

NUT, SPRING(1YT)

90183-05042-00

$5.60

8

LICENCE LIGHT UNIT ASSY

5PX-84745-00-00

Unavailable

9

BULB

5PX-84744-00-00

$3.22

10

BODY, LICENCE LIGHT

5PX-84749-00-00

$83.99

11

. WASHER

3J2-84772-00-00

Unavailable

12

.. COLLAR, LICENSE BRACKET

3J2-84757-00-00

Unavailable

13

WASHER, SPECIAL

3J2-84754-00-00

$0.99

14

NUT, SPECIAL

5PX-84748-00-00

Unavailable

15

SEAT, BASE

5PX-84742-00-00

$7.99

16

DAMPER

3F9-84553-00-00

Unavailable

17

COLLAR (420)

90387-06241-00

Unavailable

18

WASHER PLATE 829771780000

90201-05033-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

20

REAR FLASHER LIGHT ASSY 1

5PX-83330-01-00

Unavailable

21

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

22

. LENS, FLASHER

5PX-83312-00-00

Unavailable

23

GASKET, FLASHER LENS

5PX-83313-00-00

Unavailable

24

. SCREW, SPECIAL

5PX-83358-00-00

Unavailable

25

WASHER

5PX-83348-00-00

Unavailable

26

REAR FLASHER LIGHT ASSY 2

5PX-83340-01-00

Unavailable

27

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

28

. LENS, FLASHER 2

5PX-83342-00-00

Unavailable

29

GASKET, FLASHER LENS

5PX-83313-00-00

Unavailable

30

. SCREW, SPECIAL

5PX-83358-00-00

Unavailable

31

WASHER

5PX-83348-00-00

Unavailable

32

NUT(3GG)

90179-12588-00

Unavailable

33

BRACKET, LICENSE

5PX-84751-00-00

Unavailable

34

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

35

WASHER, PLATE

90201-06380-00

Unavailable

36

NUT, SELF-LOCKING

95617-06100-00

Unavailable

37

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

38

WASHER PLATE 829771780000

90201-05033-00

Unavailable

39

PLUG(1NL)

90338-07180-00

Unavailable

40

CORD, TAILLIGHT

5PX-84717-00-00

Unavailable

41

NUT,U

5PX-84548-00-00

Unavailable

42

WASHER,PLATE

5PX-84754-00-00

Unavailable

43

DAMPER

5PX-84753-00-00

Unavailable

44

COLLAR (8G8)

90387-06648-00

Unavailable

45

BOLT, FLANGE

95817-06012-00

Unavailable

46

NUT,SELF-LOCKING

95607-06200-00

Unavailable
