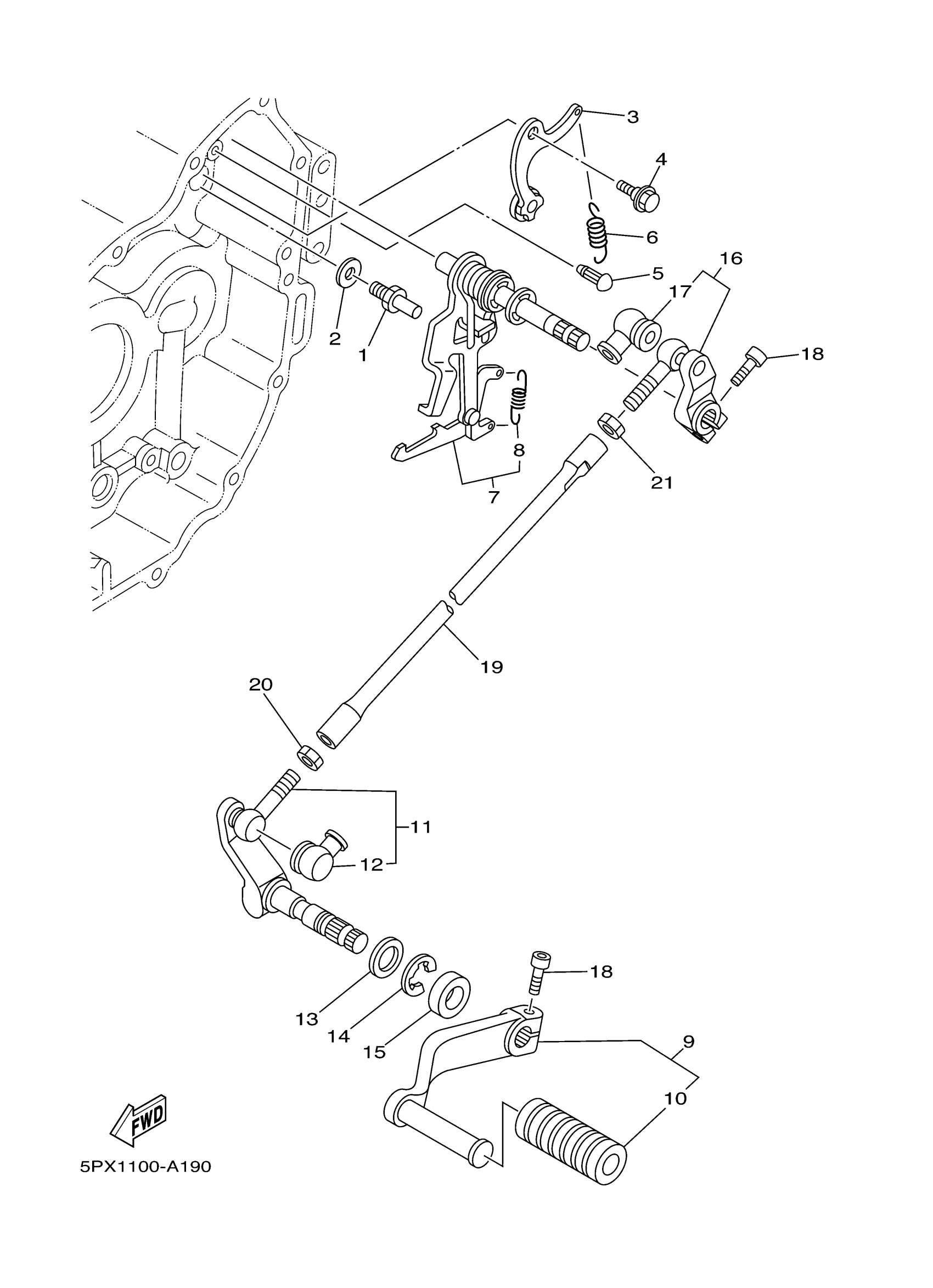

Yamaha XV1700PCRC-B (ROAD STAR WARRIOR CA) 5PX8 2003 SHIFT SHAFT Diagram
#
Description
Price
3
STOPPER LEVER ASSY
26H-18140-02-00
Unavailable
6
SPRING, TENSION
90506-18007-00
Unavailable
7
SHIFT SHAFT ASSY
4WM-18101-01-00
Unavailable
9
SHIFT PEDAL ASSY
5PX-18110-20-00
Unavailable
11
KNOB, SHIFTER
5PX-18164-00-00
Unavailable
14
. CIRCLIP
99001-12600-00
Unavailable
16
SHIFT LEVER ASSY
5VN-18150-00-00
Unavailable
18
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
19
ROD, SHIFT
5PX-18115-01-00
Unavailable
20
. NUT
95380-08700-00
Unavailable
21
NUT(1KT)
90170-08358-00
Unavailable
