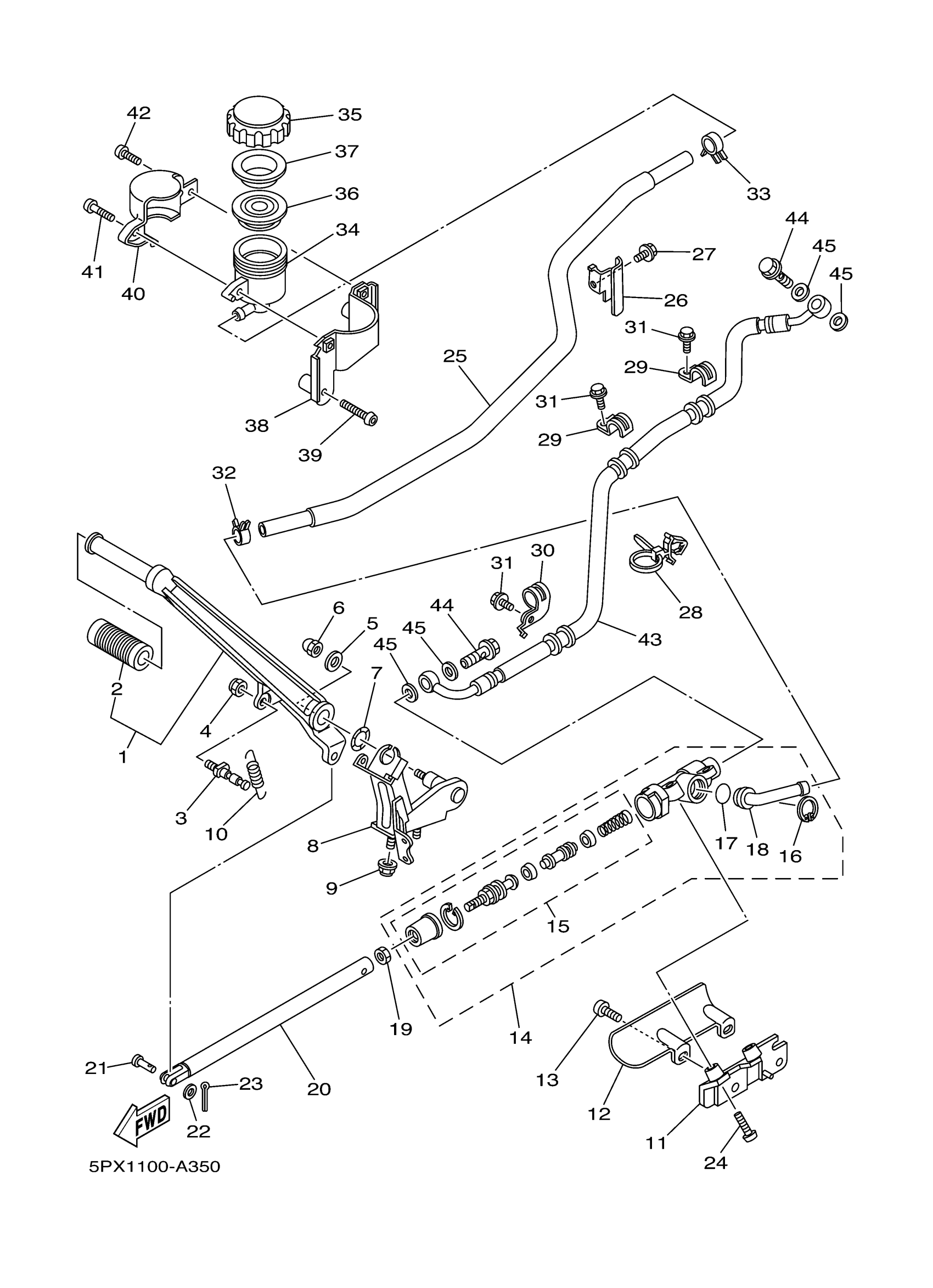

Yamaha XV1700PCRC-B (ROAD STAR WARRIOR CA) 5PX8 2003 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5PX-27200-20-00

Unavailable

2

COVER, SHIFT PEDAL

4NK-18113-10-00

$7.99

3

PIN, PEDAL CRANK

5EB-27813-00-00

Unavailable

4

NUT, U (1X2)

95680-08100-00

$7.49

5

WASHER, PLATE (12X)

90201-087F0-00

$5.60

6

NUT, CROWN(82U)

90176-08063-00

$7.49

7

WASHER, WAVE(6T4)

90206-14086-00

$8.49

8

BRACKET 4

5PX-2741L-00-00

Unavailable

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

SPRING, TENSION

90506-20009-00

$5.60

11

BRACKET, MASTER CYLINDER

5PX-25867-00-00

Unavailable

12

PROTECTOR

5PX-27491-00-00

Unavailable

13

BOLT, BUTTON

92014-08020-00

$8.49

14

RR. MASTER CYLINDER ASSY.

4NK-2583V-00-00

Unavailable

15

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

16

CIRCLIP

2VN-25866-00-00

Unavailable

17

O-RING (22U)

93210-15566-00

Unavailable

18

CONNECTER

3LD-2582A-00-00

Unavailable

19

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

20

JOINT

5PX-27222-00-00

Unavailable

21

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

22

WASHER(6TA)

92907-06200-00

Unavailable

23

PIN, COTTER

91490-16020-00

Unavailable

24

BOLT, BUTTON HEAD

92014-08030-00

Unavailable

25

HOSE, RESERVOIR

5PX-25895-01-00

Unavailable

26

HOLDER, FUEL PIPE

5PX-21374-00-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

28

CLAMP(2TV)

90464-10112-00

Unavailable

29

HOLDER, BRAKE HOSE 2

3XV-25876-00-00

Unavailable

30

HOLDER, BRAKE HOSE 5

5PX-2588F-00-00

Unavailable

31

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

32

CLIP (5K4)

90467-14057-00

Unavailable

33

CLIP(3YX)

90467-13133-00

Unavailable

34

TANK, RESERVOIR

47X-25894-00-00

Unavailable

35

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

36

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

37

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

38

HOLDER, RESERVE TANK

5PX-2582E-00-00

Unavailable

39

BOLT, BUTTON

92017-06035-00

Unavailable

40

COVER, RESERVOIR TANK

5PX-25888-00-00

Unavailable

41

BOLT

90111-06031-00

Unavailable

42

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

43

HOSE, BRAKE 4

5PX-2581J-00-00

Unavailable

44

BOLT, UNION(3GM)

90401-10159-00

Unavailable

45

WASHER, PLATE(481)

90201-10118-00

Unavailable
