MIDDLE DRIVE GEAR

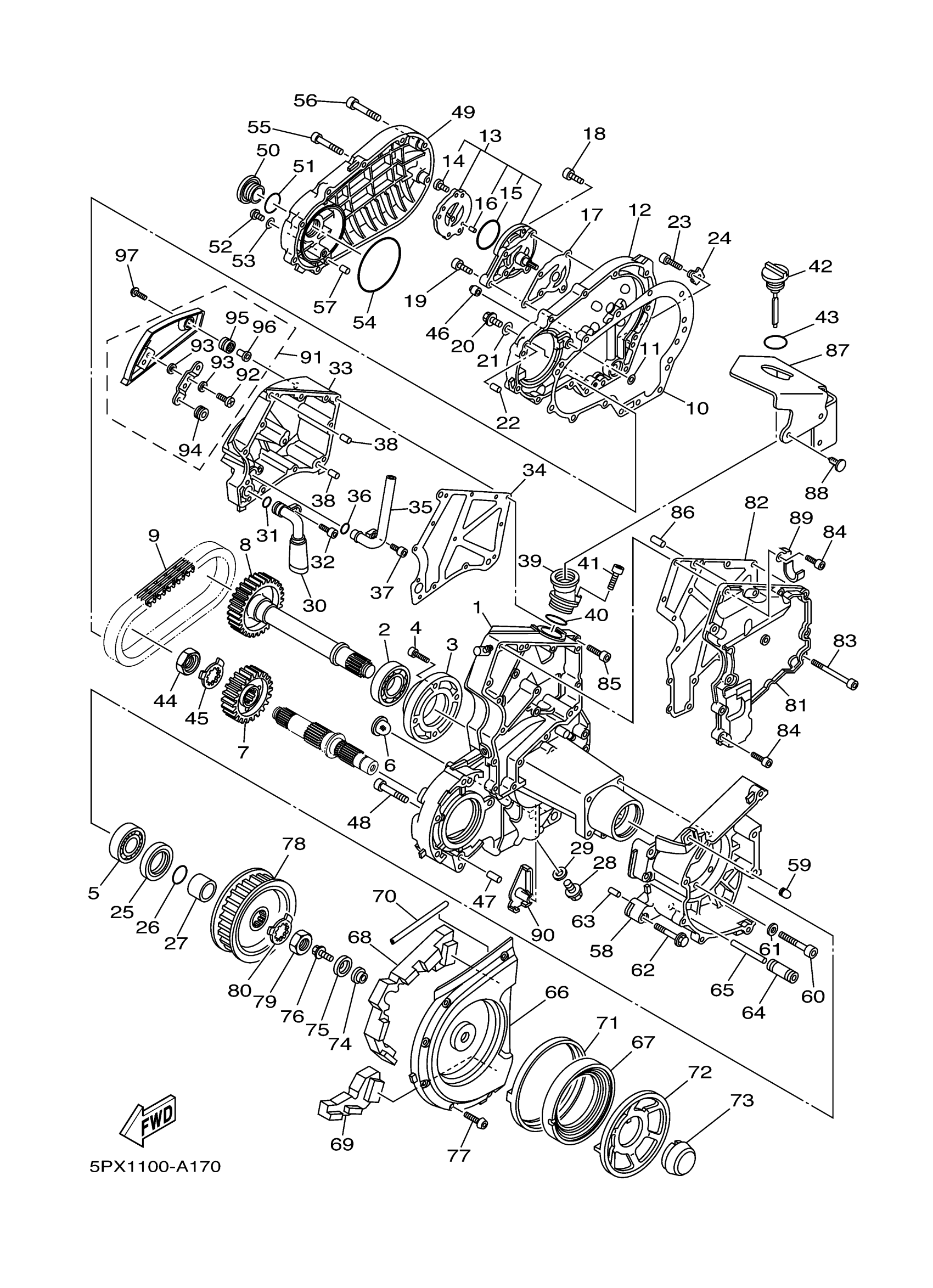

Yamaha XV1700PCRC-B (ROAD STAR WARRIOR CA) 5PX8 2003 MIDDLE DRIVE GEAR Diagram
#
1
CASE, TRANSFER 1
5PX-17541-00-00
Unavailable
3
HOUSING, BEARING
5PX-17521-00-00
Unavailable
7
SPROCKET, CHAIN DRIVE
4WM-17682-00-00
Unavailable
8
MIDDLE DRIVEN SHAFT ASSY
5PX-1755A-00-00
Unavailable
10
GASKET 1
5PX-17929-00-00
Unavailable
12
CASE, TRANSFER 2
5PX-17542-00-00
Unavailable
13
OIL PUMP ASSY
5PX-13100-00-00
Unavailable
15
. O-RING
93210-48214-00
Unavailable
16
PIN, DOWEL
93603-07073-00
Unavailable
17
GASKET, PUMP CASE
4WM-13116-00-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
20
BOLT, FLANGE
95814-08016-00
Unavailable
21
GASKET
90430-08119-00
Unavailable
22
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
23
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
24
PLATE 3
5PX-17691-00-00
Unavailable
25
OIL SEAL(36Y)
93102-40330-00
Unavailable
26
O-RING(36Y)
93210-30660-00
Unavailable
27
COLLAR(4KG)
90387-3003P-00
Unavailable
28
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
29
GASKET
214-11198-01-00
Unavailable
30
STRAINER 2
5PX-13421-00-00
Unavailable
31
O-RING
93210-14003-00
Unavailable
32
BOLT,SOCKET
91317-06012-00
Unavailable
33
CAP
5PX-17631-00-00
Unavailable
34
GASKET,3
5PX-17932-02-00
Unavailable
35
PIPE
5PX-13582-00-00
Unavailable
36
O-RING
93210-14003-00
Unavailable
37
BOLT,SOCKET
91317-06012-00
Unavailable
38
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
39
JOINT
5PX-13132-00-00
Unavailable
40
O-RING (5X4)
93210-35512-00
Unavailable
42
PLUG, OIL LEVEL
5PX-15362-10-00
Unavailable
43
O-RING (5X4)
93210-35512-00
Unavailable
44
NUT
90179-22004-00
Unavailable
45
WASHER, LOCK(47X)
90215-26241-00
Unavailable
46
NUT (371)
90179-08004-00
Unavailable
47
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
48
BOLT, SOCKET
91314-08050-00
Unavailable
49
COVER
5PX-15779-00-00
Unavailable
50
PLUG, STRAIGHT SCREW
90340-32002-00
Unavailable
51
O-RING (341)
93210-32172-00
Unavailable
52
BOLT, BUTTON HEAD
92014-06010-00
Unavailable
53
GASKET 838153840000
90430-06016-00
Unavailable
54
O-RING (4X7)
93210-92448-00
Unavailable
55
BOLT,SOCKET
91314-06050-00
Unavailable
56
BOLT, SOCKET
91314-08055-00
Unavailable
57
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
58
STAY
5PX-17613-00-00
Unavailable
59
SPACER 1
5PX-17654-00-00
Unavailable
60
BOLT, SOCKET
91317-10050-00
Unavailable
61
WASHER(6TA)
92907-10600-00
Unavailable
62
BOLT, FLANGE(4AS)
95824-10050-00
Unavailable
63
PIN
99480-10018-00
Unavailable
64
SLIDER
4WM-17653-00-00
Unavailable
65
PIN, DOWEL
93606-76002-00
Unavailable
66
COVER
5PX-17076-00-00
Unavailable
67
DAMPER, SLIDER
5PX-17655-00-00
Unavailable
68
DAMPER 2
5PX-1542B-00-00
Unavailable
69
DAMPER 3
5PX-1542C-00-00
Unavailable
70
PROTECTOR
5PX-15491-00-00
Unavailable
71
RING, RUBBER
5PX-15449-00-00
Unavailable
72
PLATE 1
5PX-17665-00-00
Unavailable
73
PLATE 2
5PX-17675-00-00
Unavailable
74
GROMMET
4H7-15486-00-00
Unavailable
75
WASHER (4H7)
90209-06096-00
Unavailable
76
BOLT, FLANGE
95817-06012-00
Unavailable
77
BOLT, SOCKET
91314-06030-00
Unavailable
78
PULLEY, BELT
5PX-17651-00-00
Unavailable
79
NUT
90179-22004-00
Unavailable
80
WASHER, LOCK(47X)
90215-26241-00
Unavailable
81
CAP, HOUSING
5PX-17538-00-00
Unavailable
82
GASKET,4
5PX-17933-02-00
Unavailable
83
BOLT, SOCKET
91317-06085-00
Unavailable
85
BOLT,SOCKET
91317-06045-00
Unavailable
86
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
87
PLATE, CAP
5PX-1763A-00-00
Unavailable
88
RIVET
90269-07005-00
Unavailable
89
CLAMP
90465-08038-00
Unavailable
90
PLATE
5PX-17446-00-00
Unavailable
91
PLATE, COVER
5PX-17471-00-00
Unavailable
92
SCREW, BINDING
98907-06014-00
Unavailable
93
WASHER, PLATE
90201-05013-00
Unavailable
94
GROMMET
90480-13007-00
Unavailable
95
GROMMET
90480-13006-00
Unavailable
96
COLLAR
90387-07007-00
Unavailable
97
BOLT, HEXAGON SOCKET HEAD(3GM)
90110-06202-00
Unavailable
