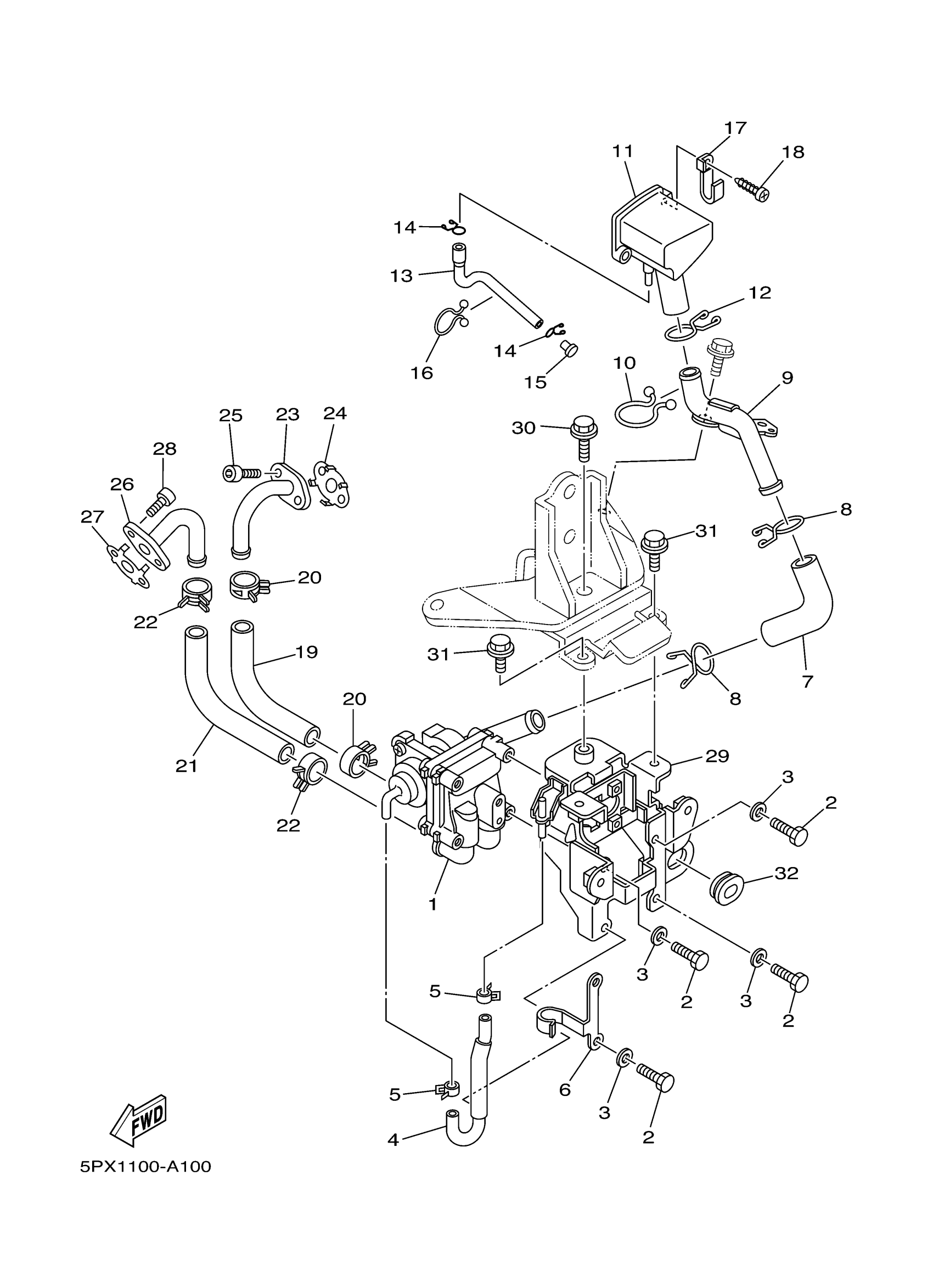

Yamaha XV1700PCRC-B (ROAD STAR WARRIOR CA) 5PX8 2003 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

AIR INDUCTION SYSTEM ASSY

5PX-14803-00-00

Unavailable

2

BOLT(4GV)

97017-05012-00

$8.49

3

WASHER(1RW)

92907-05600-00

$3.78

4

HOSE, VACUUM SENSING 1

5PX-13542-01-00

Unavailable

5

CLIP(42X)

90467-07093-00

$3.35

6

STAY

5PX-14834-00-00

Unavailable

7

HOSE, BEND 1

5PX-14881-00-00

Unavailable

8

CLIP

90467-18196-00

$7.49

9

PIPE 3

5PX-14873-01-00

Unavailable

10

CLAMP (8M1)

90464-30040-00

$8.49

11

RESONATOR

5PX-14877-00-00

Unavailable

12

CLIP

90467-18196-00

$7.49

13

PIPE, DRAIN

5PX-1443E-10-00

Unavailable

14

CLIP

90467-090A2-00

$4.41

15

PLUG (13K)

90338-06134-00

$8.49

16

CLAMP

90464-25267-00

Unavailable

17

CLAMP

90462-08246-00

Unavailable

18

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

19

HOSE, BEND 2

5PX-14882-00-00

Unavailable

20

CLIP

90468-08104-00

Unavailable

21

HOSE, BEND 3

5PX-14883-00-00

Unavailable

22

CLIP

90468-08104-00

Unavailable

23

PIPE 1

5PX-14871-00-00

Unavailable

24

GASKET

5PX-14815-00-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

26

PIPE 2

5PX-14872-00-00

Unavailable

27

GASKET

5PX-14815-00-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

29

BRACKET

5PX-14867-00-00

Unavailable

30

BOLT, SOCKET

91317-08020-00

Unavailable

31

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

32

GROMMET(4DN)

90480-01558-00

Unavailable
