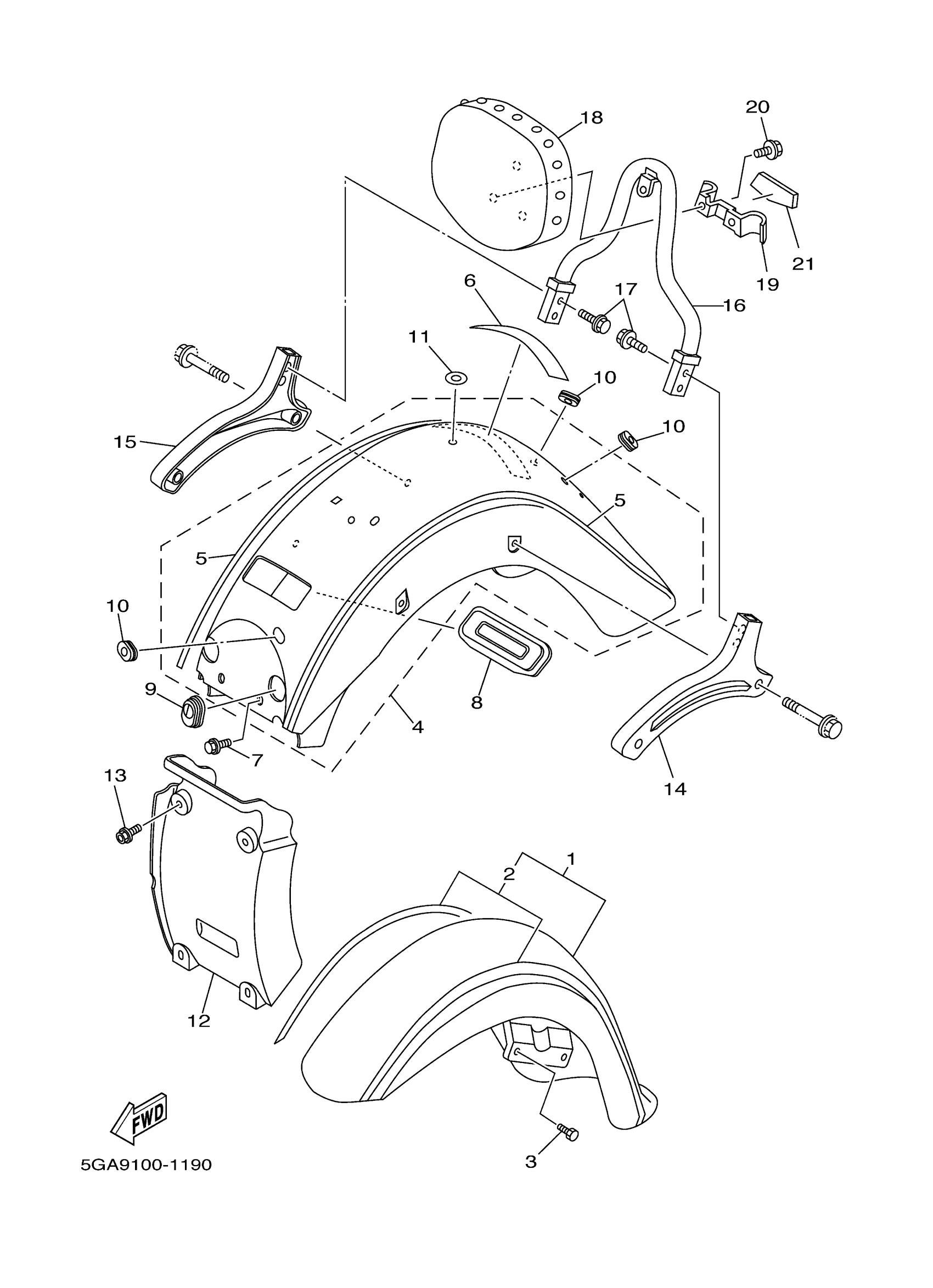

Yamaha XV1600ATRC (ROAD STAR SILVERADO CA) 5GAN 2003 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY (VERY DARK BLUE METALLIC A) (DARK VIOLET METALLIC A)
4WM-Y2150-M0-1Y
Unavailable
1
FRONT FENDER ASSY (DARK GRAY METALLIC 1)
4WM-Y2150-P0-C1
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK VIOLET METALLIC A)
4WM-21570-G0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK GRAY METALLIC 1)
4WM-21570-H0-00
Unavailable
4
REAR FENDER COMP.
99999-03401-00
Unavailable
4
REAR FENDER COMP.
4WM-Y2161-P1-C1
Unavailable
5
.. GRAPHIC SET, REAR FENDER (DARK VIOLET METALLIC A)
4WM-2165A-G0-00
Unavailable
5
.. GRAPHIC SET, REAR FENDER (DARK GRAY METALLIC 1)
4WM-2165A-H0-00
Unavailable
11
SEAL 2
4NK-21735-00-00
Unavailable
12
GUARD, MUD (DARK GRAY METALLIC 1)
4WM-21629-00-C1
Unavailable
12
GUARD, MUD (VERY DARK BLUE METALLIC A)
4WM-21629-00-P4
Unavailable
13
BOLT, WITH WASHER
90119-06226-00
Unavailable
14
GRIP 1
5GA-2164A-00-00
Unavailable
15
GRIP 2
5GA-2164E-00-00
Unavailable
16
STAY 1
5GA-2164F-00-00
Unavailable
17
BOLT, FLANGE(2UJ)
95024-08012-00
Unavailable
18
BACK REST ASSY
5GA-2840F-01-00
Unavailable
19
STAY 2
5GA-2164G-00-00
Unavailable
20
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
21
EMBLEM
5GA-24786-01-00
Unavailable
