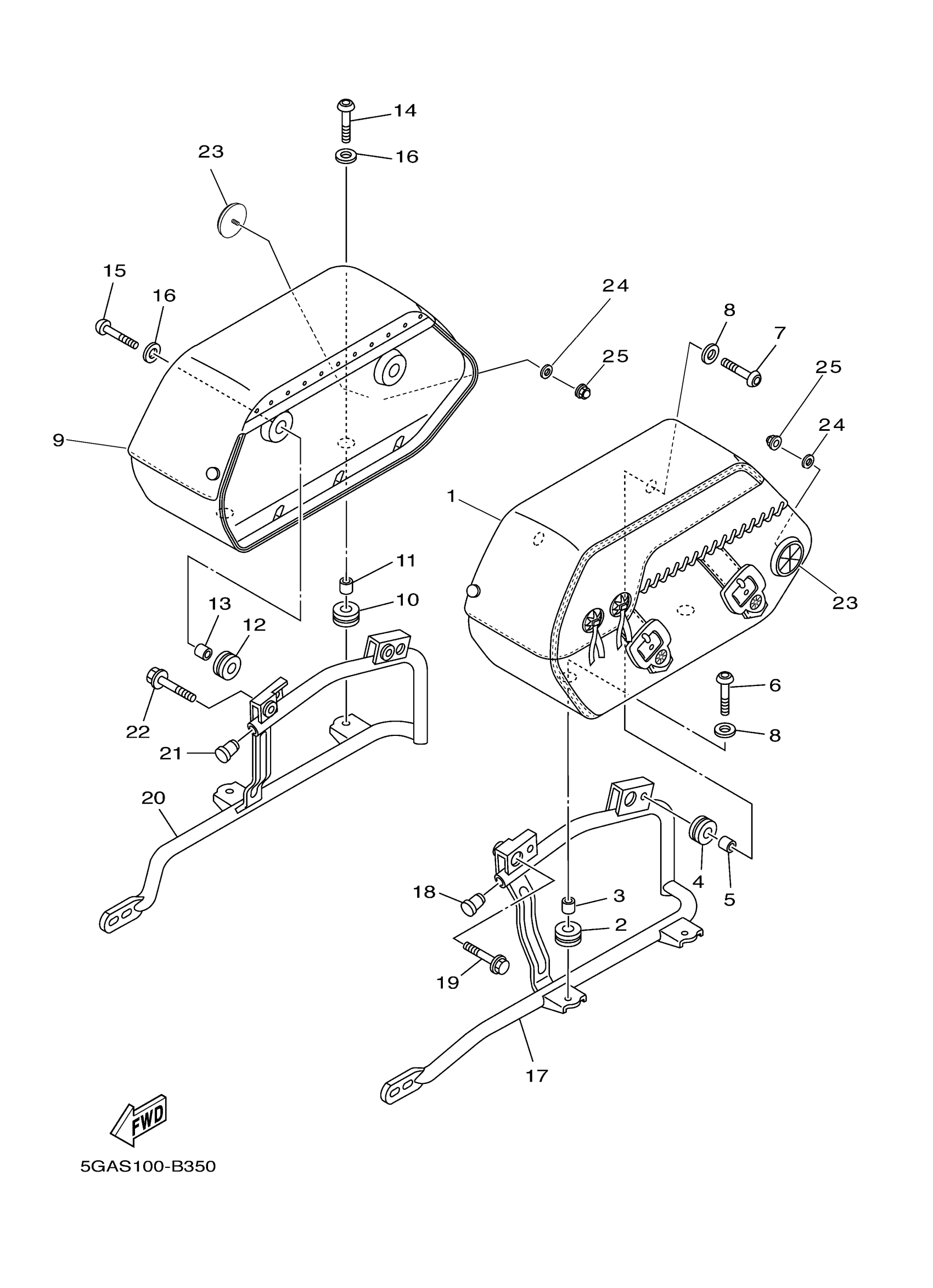

Yamaha XV1600ATLERC (ROAD STAR SILVERADO LIMITED EDITION CA) 5GAT 2003 SADDLEBAG 1 Diagram

#

Description
Price

1

SADDLEBAG COMP. 1

5GA-F8430-20-00

Unavailable

2

GROMMET 437147470000

90480-20132-00

$8.49

3

COLLAR(88R)

90387-061Y7-00

$4.56

4

GROMMET

90480-20338-00

$4.14

5

COLLAR (8A7)

90387-06518-00

$7.49

6

BOLT, BUTTON

92017-06030-00

$8.49

7

BOLT, BUTTON HEAD

92017-06025-00

$9.49

8

WASHER PLATE 248217570000

90201-06074-00

$9.49

9

SADDLEBAG COMP. 2

5GA-F8440-20-00

Unavailable

10

GROMMET 437147470000

90480-20132-00

$8.49

11

COLLAR(88R)

90387-061Y7-00

$4.56

12

GROMMET

90480-20338-00

$4.14

13

COLLAR (8A7)

90387-06518-00

$7.49

14

BOLT, BUTTON

92017-06030-00

$8.49

15

BOLT, BUTTON HEAD

92017-06025-00

$9.49

16

WASHER PLATE 248217570000

90201-06074-00

$9.49

17

FRAME, SADDLEBAG 1

5GA-28473-01-00

Unavailable

18

PLUG

90338-19212-00

Unavailable

19

BOLT, FLANGE

95817-08050-00

Unavailable

20

FRAME, SADDLEBAG 2

5GA-28474-01-00

Unavailable

21

PLUG

90338-19212-00

Unavailable

22

BOLT, FLANGE

95817-08050-00

Unavailable

23

REFLECTOR, REAR 1

449-85131-20-00

Unavailable

24

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

25

NUT, CROWN

90176-05001-00

Unavailable
