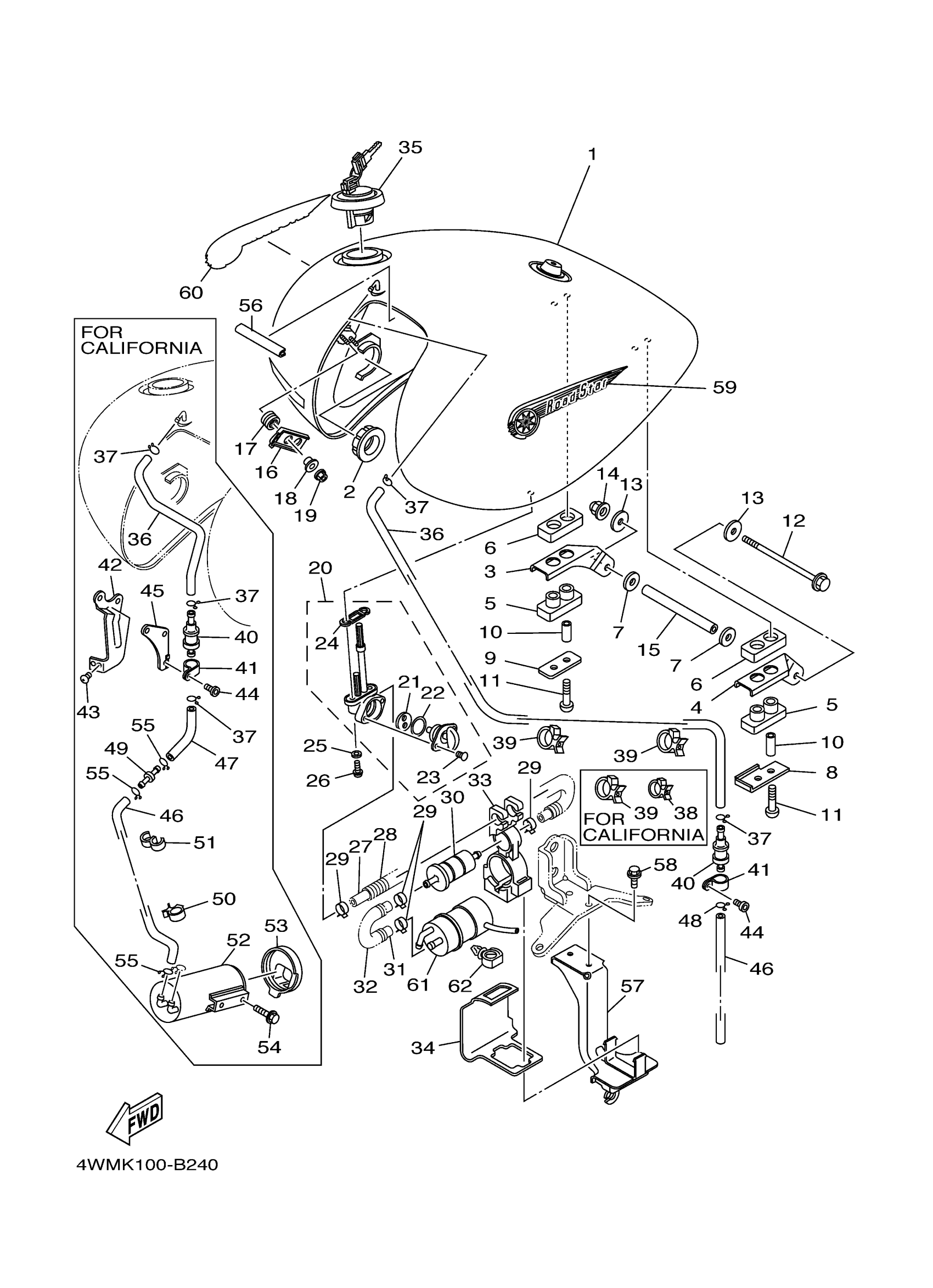

Yamaha XV1600ATLERC (ROAD STAR SILVERADO LIMITED EDITION CA) 5GAT 2003 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (SILVER 3)

4WM-YK241-M0-P5

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

BRACKET, FUEL TANK 1

5MB-24191-00-00

Unavailable

4

BRACKET, FUEL TANK 2

5MB-24192-00-00

Unavailable

5

DAMPER, LOCATING 1

5MB-24181-00-00

Unavailable

6

DAMPER, LOCATING 2

5MB-24182-00-00

$7.99

7

DAMPER, LOCATING 3

5MB-24183-00-00

$7.99

8

WASHER, SPECIAL

5MB-24186-00-00

Unavailable

9

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

10

COLLAR

90387-06062-00

Unavailable

11

BOLT, BUTTON

92017-06035-00

$3.13

12

BOLT, FLANGE

95817-06140-00

Unavailable

13

WASHER, PLATE 1012832300

90201-06066-00

$9.49

14

NUT, CROWN(1FN)

90176-06055-00

$5.60

15

COLLAR

90387-06061-00

$7.49

16

BRACKET, FUEL TANK 1

4WM-24291-00-00

Unavailable

17

GROMMET

4WM-24339-00-00

Unavailable

18

COLLAR(82M)

90387-050T5-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

20

FUEL COCK ASSY 1

4WM-24500-10-00

Unavailable

21

VALVE PACKING

3AC-24523-00-00

Unavailable

22

SEAL, COCK

3AJ-24534-01-00

Unavailable

23

.. SCREW, FLAT HEAD

98780-03008-00

Unavailable

24

O-RING

4X8-24512-00-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

26

SCREW 256241430000

90149-06011-00

Unavailable

27

PIPE, FUEL 1

4WM-24311-00-00

Unavailable

28

SPRING

4WM-24393-00-00

Unavailable

29

CLIP(3YX)

90467-13133-00

Unavailable

30

FILTER ASSY

1FK-24560-10-00

Unavailable

31

PIPE 2

4WM-24312-00-00

Unavailable

32

SPRING

4WM-24394-00-00

Unavailable

33

BAND 1

4WM-24398-00-00

Unavailable

34

COVER

4WM-24217-00-00

Unavailable

35

CAP ASSY

4NK-24602-20-00

Unavailable

36

PIPE 10

4WM-24321-00-00

Unavailable

36

PIPE 10

4WM-24321-10-00

Unavailable

37

CLIP

90467-100A1-00

Unavailable

38

CLAMP(4HM)

90464-15192-00

Unavailable

39

CLAMP(4KM)

90464-25217-00

Unavailable

40

ROLL OVER VALVE ASSY

4WM-24180-00-00

Unavailable

41

CLAMP

90464-15014-00

Unavailable

42

BRACKET 4

4WM-2148X-00-00

Unavailable

43

GASKET, EXHAUST

98507-05008-00

Unavailable

44

SCREW, BINDING

98907-05012-00

Unavailable

45

STAY

4WM-24662-00-00

Unavailable

46

PIPE 11

4WM-24322-00-00

Unavailable

46

HOSE (L400)

90445-116K9-00

Unavailable

47

PIPE 12

4WM-24323-00-00

Unavailable

48

CLIP

90467-100A1-00

Unavailable

49

JOINT

4XY-14568-00-00

Unavailable

50

CLAMP(4HM)

90464-15192-00

Unavailable

51

CLAMP(6M7)

90464-09M31-00

Unavailable

52

CANISTER ASSY

4WM-24170-00-00

Unavailable

53

COVER, CANISTER

4WM-2419E-00-00

Unavailable

54

BOLT, WASHER BASED

90105-06009-00

Unavailable

55

CLIP

90467-100A1-00

Unavailable

56

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

57

BRACKET, FUEL PUMP

4WM-24491-01-00

Unavailable

58

BOLT, FLANGE

95817-06016-00

Unavailable

59

EMBLEM

5MB-2416B-10-00

Unavailable

60

EMBLEM

5MB-2417B-10-00

Unavailable

61

FUEL PUMP COMP

4WM-13907-01-00

Unavailable

62

CLAMP

90464-13249-00

Unavailable
