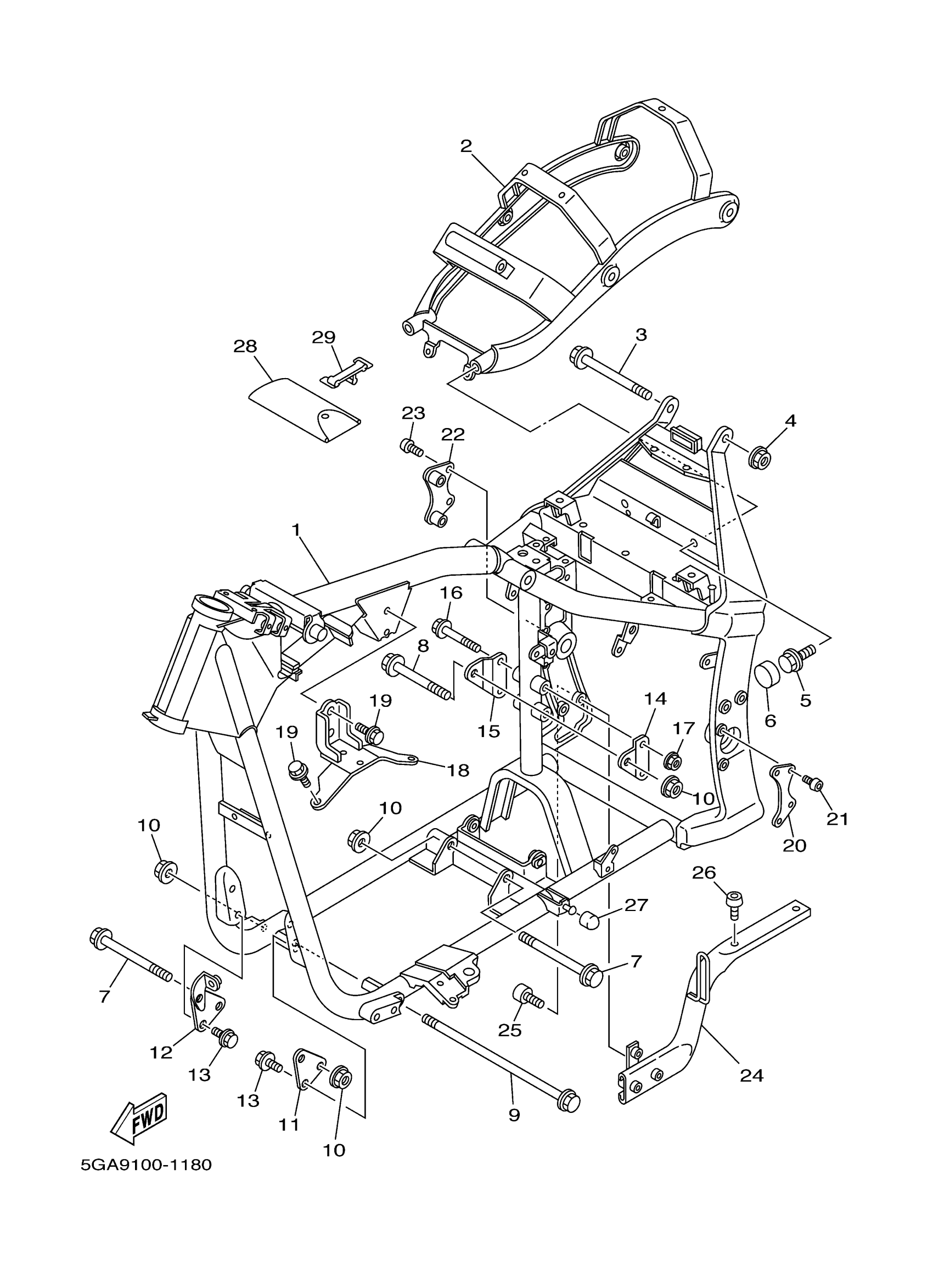

Yamaha XV1600ATLERC (ROAD STAR SILVERADO LIMITED EDITION CA) 5GAT 2003 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5VN-21110-01-00

Unavailable

2

REAR FRAME COMP.

4WM-21190-00-00

Unavailable

3

BOLT, FLANGE

90105-12087-00

Unavailable

4

NUT, U FLANGE

95607-12200-00

$5.60

5

BOLT, WASHER BASED (2H9)

90105-10115-00

$9.49

6

CAP, TOOL BOX

4WM-21399-00-00

$7.99

7

BOLT, FLANGE

90105-12087-00

Unavailable

8

BOLT, FLANGE

90105-12689-00

Unavailable

9

BOLT, WASHER BASED

90105-126A6-00

Unavailable

10

NUT, U FLANGE

95607-12200-00

$5.60

11

STAY, ENGINE 5

4WM-21314-00-00

$17.49

12

STAY, ENGINE 5

4WM-21318-00-00

Unavailable

13

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

14

STAY, ENGINE 2

4WM-21315-00-00

Unavailable

15

STAY, ENGINE 3

4WM-21316-00-00

Unavailable

16

BOLT, WASHER BASED(4HM)

90105-10737-00

Unavailable

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

18

STAY, ENGINE 3

4WM-21317-00-00

Unavailable

19

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

20

STAY 1

5VN-2137F-00-00

Unavailable

21

BOLT

90111-10003-00

Unavailable

22

STAY 2

5GA-2137G-00-00

Unavailable

23

BOLT

90111-10003-00

Unavailable

24

STAY, MUFFLER 1

5MB-21445-00-00

Unavailable

25

BOLT, SOCKET

91317-10025-00

Unavailable

26

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

27

STOPPER, MAIN STAND

3VR-27114-00-00

Unavailable

28

TOOL KIT

4WM-28100-00-00

Unavailable

29

BAND, TOOL

46X-21376-00-00

Unavailable
