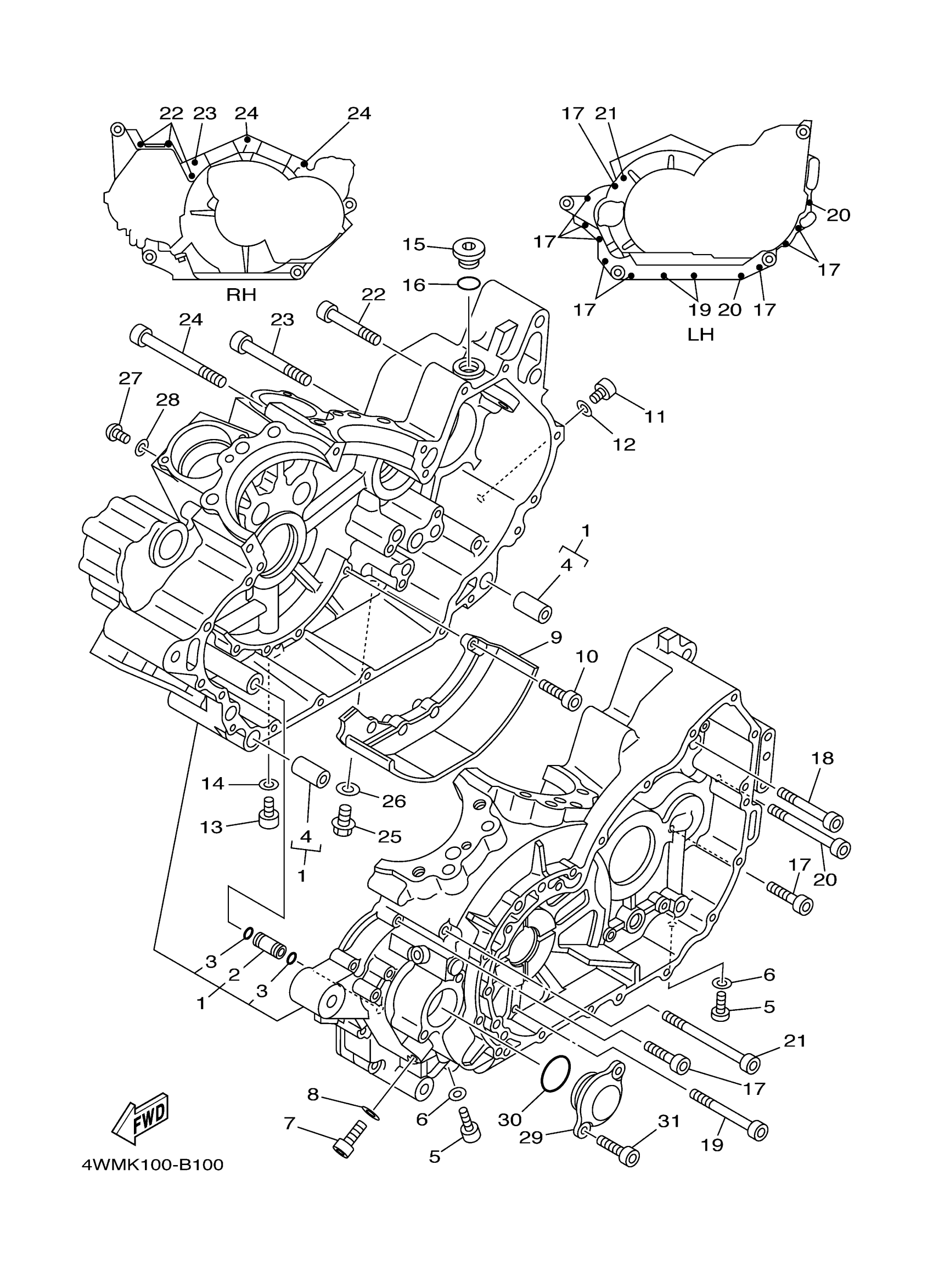

Yamaha XV1600ATLERC (ROAD STAR SILVERADO LIMITED EDITION CA) 5GAT 2003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5MB-15100-10-00

Unavailable

2

NOZZLE 1

4WM-15138-00-00

Unavailable

3

O-RING

93210-10001-00

$1.23

4

PIN, DOWEL

99530-14016-00

$2.98

5

BOLT, SOCKET

91314-05010-00

$2.24

6

GASKET

90430-05126-00

$5.61

7

BOLT,SOCKET

91314-08012-00

$6.77

8

WASHER, PLATE 3411117500

90201-08087-00

$2.93

9

PLATE, BUFFLE 1

4WM-15123-00-00

Unavailable

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

BOLT, SOCKET

91314-05010-00

$2.24

12

GASKET

90430-05126-00

$5.61

13

BOLT,SOCKET

91314-08012-00

$6.77

14

WASHER, PLATE 3411117500

90201-08087-00

$2.93

15

PLUG

5PX-15189-00-00

$24.16

16

O-RING (25G)

93210-20573-00

Unavailable

17

BOLT, SOCKET

91314-06040-00

Unavailable

18

BOLT, SOCKET

91314-06060-00

Unavailable

19

BOLT,SOCKET

91314-06075-00

Unavailable

20

BOLT, SOCKET

91317-06085-00

Unavailable

21

BOLT,SOCKET

91314-06105-00

Unavailable

22

BOLT, SOCKET

91314-06060-00

Unavailable

23

BOLT,SOCKET

91314-08080-00

Unavailable

24

BOLT, SOCKET

91314-08100-00

Unavailable

25

BOLT, FLANGE(2UJ)

95024-08012-00

Unavailable

26

WASHER, PLATE 3411117500

90201-08087-00

$2.93

27

BOLT, BUTTON HEAD(4NK)

92014-05010-00

Unavailable

28

GASKET

90430-05126-00

$5.61

29

COVER, CAP

5PX-15417-01-00

Unavailable

30

O-RING (5Y1)

93210-37532-00

Unavailable

31

BOLT, SOCKET

91314-06016-00

Unavailable
