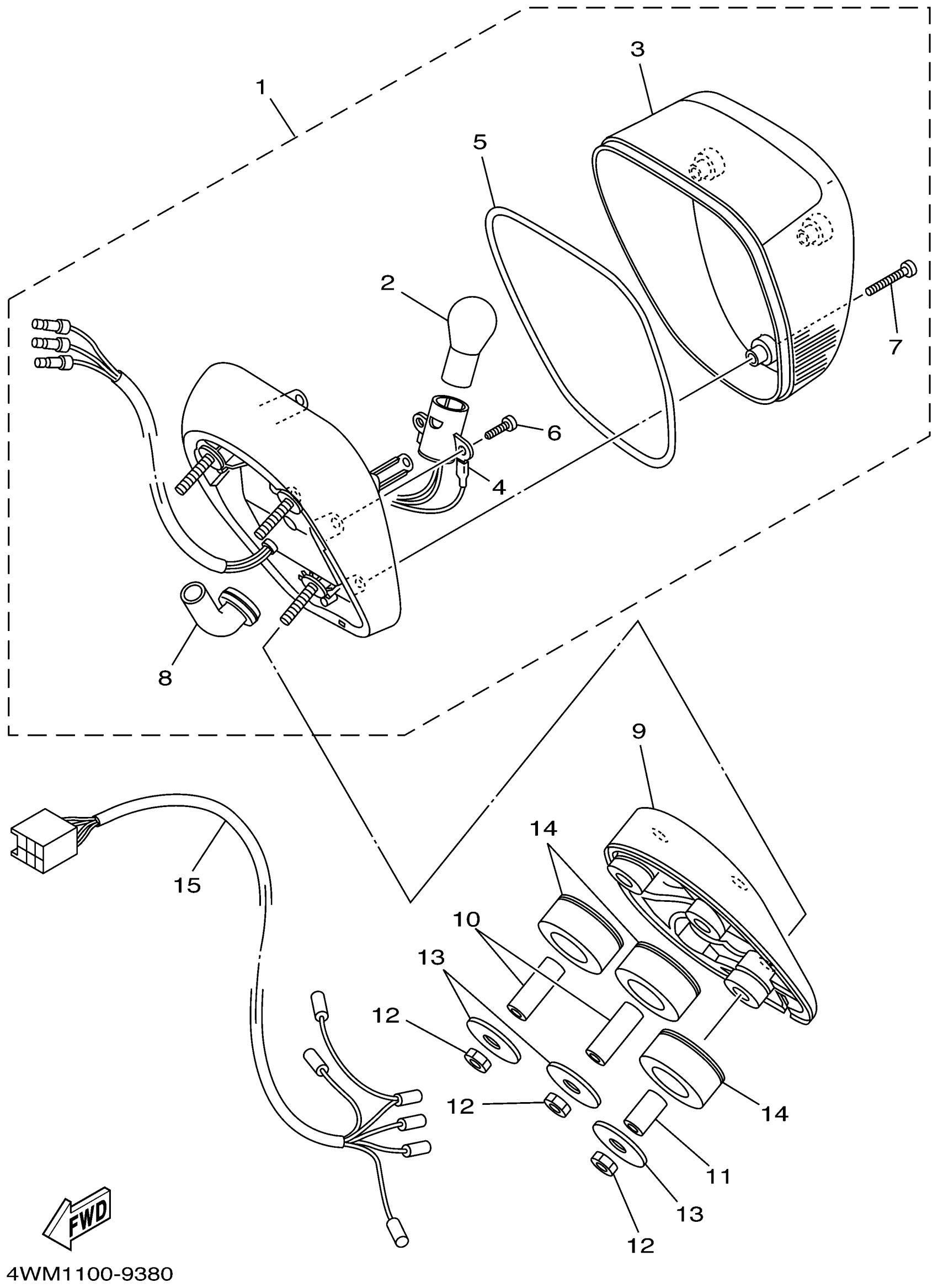

Yamaha XV1600ASPC (ROAD STAR MIDNIGHT STAR CA) 5MB8 2002 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

4WM-84700-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, TAILLIGHT

4NK-84721-00-00

$33.99

4

. CORD ASSY

4WM-84735-00-00

Unavailable

5

SEAL

1VJ-14462-00-00

$18.49

6

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

7

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

8

GROMMET

5BN-84154-00-00

$15.49

9

DAMPER

4WM-84527-00-00

Unavailable

10

COLLAR(M63)

90387-060X8-00

Unavailable

11

COLLAR 260845570000

90387-06028-00

Unavailable

12

NUT(6TA)

95317-06600-00

$3.55

13

WASHER (23T)

90201-065G8-00

$8.49

14

DAMPER

5BN-84553-00-00

$7.99

15

CORD, TAILLIGHT

5BN-84717-00-00

Unavailable
