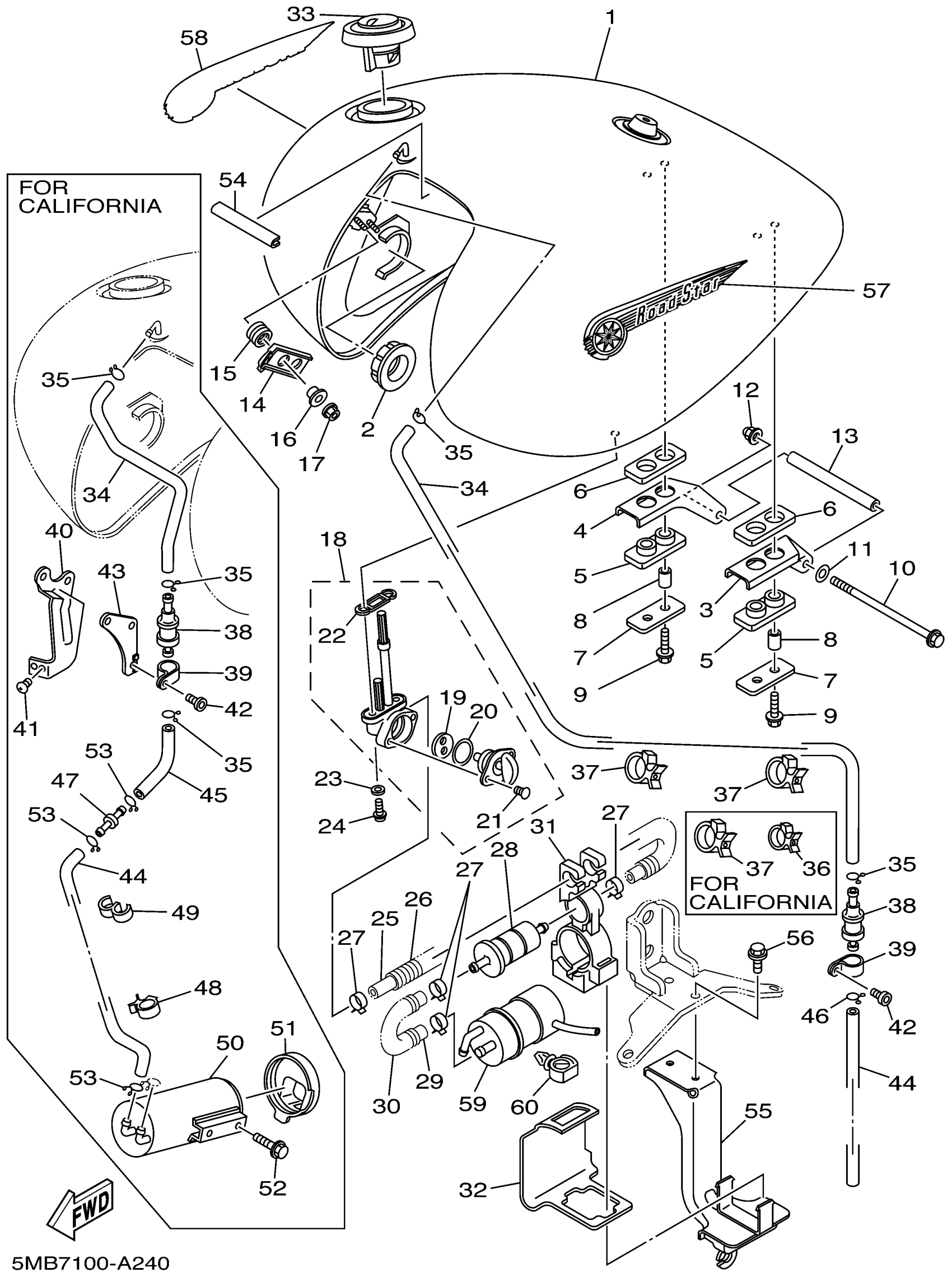

Yamaha XV1600ASPC (ROAD STAR MIDNIGHT STAR CA) 5MB8 2002 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK COMP. (YAMAHA BLACK)

4WM-YK241-31-33

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

BRACKET, FUEL TANK 1

4WM-24191-00-00

Unavailable

4

BRACKET, FUEL TANK 2

4WM-24192-00-00

Unavailable

5

DAMPER, LOCATING 1

2GH-24181-00-00

Unavailable

6

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

7

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

8

COLLAR (1M1)

90387-06553-00

$9.49

9

BOLT, FLANGE

95817-06025-00

Unavailable

10

BOLT, FLANGE

95817-06130-00

Unavailable

11

WASHER, PLATE

90201-06553-00

Unavailable

12

NUT, CROWN(1FN)

90176-06055-00

$5.60

13

COLLAR

90387-0615R-00

Unavailable

14

BRACKET, FUEL TANK 1

4WM-24291-00-00

Unavailable

15

GROMMET

4WM-24339-00-00

Unavailable

16

COLLAR(82M)

90387-050T5-00

Unavailable

17

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

18

FUEL COCK ASSY 1

4WM-24500-10-00

Unavailable

19

VALVE PACKING

3AC-24523-00-00

Unavailable

20

SEAL, COCK

3AJ-24534-01-00

Unavailable

21

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

22

O-RING

4X8-24512-00-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

PIPE, FUEL 1

4WM-24311-00-00

Unavailable

26

SPRING

4WM-24393-00-00

Unavailable

27

CLIP

90467-13138-00

Unavailable

28

FILTER ASSY

1FK-24560-10-00

Unavailable

29

PIPE 2

4WM-24312-00-00

Unavailable

30

SPRING

4WM-24394-00-00

Unavailable

31

BAND 1

4WM-24398-00-00

Unavailable

32

COVER

4WM-24217-00-00

Unavailable

33

CAP ASSY

4NK-24602-20-00

Unavailable

34

PIPE 10

4WM-24321-00-00

Unavailable

34

PIPE 10

4WM-24321-10-00

Unavailable

35

CLIP

90467-100A1-00

Unavailable

35

CLIP

90467-100A1-00

Unavailable

36

CLAMP(4HM)

90464-15192-00

Unavailable

37

CLAMP(4KM)

90464-25217-00

Unavailable

37

CLAMP(4KM)

90464-25217-00

Unavailable

38

ROLL OVER VALVE ASSY

4WM-24180-00-00

Unavailable

39

CLAMP

90464-15014-00

Unavailable

40

BRACKET 4

4WM-2148X-00-00

Unavailable

41

GASKET, EXHAUST

98507-05008-00

Unavailable

42

SCREW, BINDING

98907-05012-00

Unavailable

43

STAY

4WM-24662-00-00

Unavailable

44

PIPE 11

4WM-24322-00-00

Unavailable

44

HOSE (L400)

90445-116K9-00

Unavailable

45

PIPE 12

4WM-24323-00-00

Unavailable

46

CLIP

90467-100A1-00

Unavailable

47

JOINT

4XY-14568-00-00

Unavailable

48

CLAMP(4HM)

90464-15192-00

Unavailable

49

CLAMP(6M7)

90464-09M31-00

Unavailable

50

CANISTER ASSY

4WM-24170-00-00

Unavailable

51

COVER, CANISTER

4WM-2419E-00-00

Unavailable

52

BOLT, WASHER BASED

90105-06009-00

Unavailable

53

CLIP

90467-100A1-00

Unavailable

54

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

55

BRACKET, FUEL PUMP

4WM-24491-01-00

Unavailable

56

BOLT, FLANGE

95817-06016-00

Unavailable

57

EMBLEM

5MB-2416B-10-00

Unavailable

58

EMBLEM

5MB-2417B-10-00

Unavailable

59

FUEL PUMP COMP

4WM-13907-01-00

Unavailable

60

CLAMP

90464-13249-00

Unavailable
