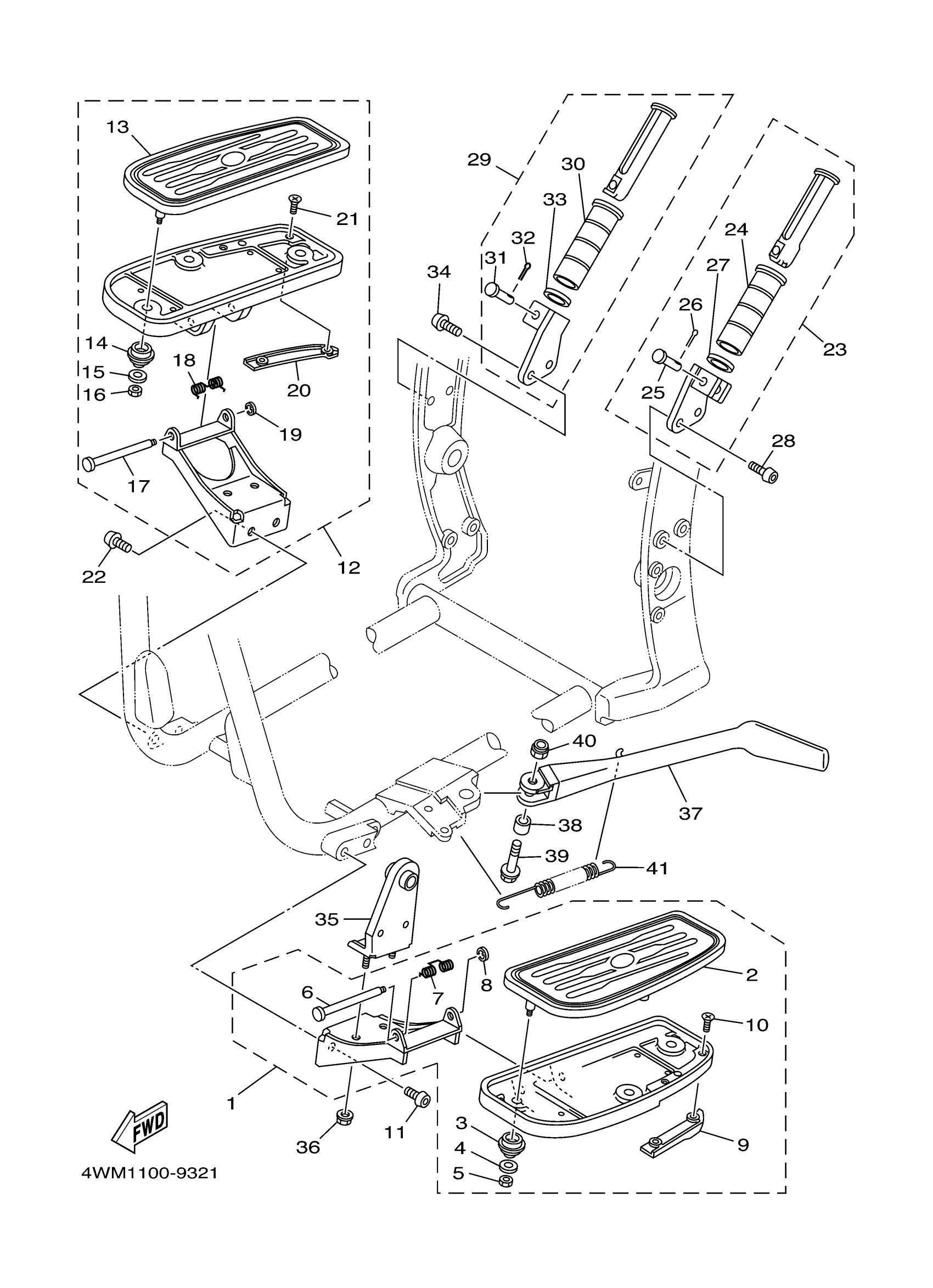

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY

99999-03522-00

Unavailable

2

COVER, FOOTREST

4WM-27413-00-00

Unavailable

3

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

4

WASHER PLATE 829771780000

90201-05033-00

$10.49

5

NUT, U

95617-05100-00

$9.49

6

SHAFT

3D8-27427-00-00

$7.99

7

SPRING, RETURN

4NK-27426-00-00

$6.99

8

CIRCLIP(53L)

99001-06600-00

$1.01

9

MOLE 1

4WM-27496-00-00

Unavailable

10

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

11

BOLT, BUTTON HEAD

92017-10020-00

$8.49

12

FRONT FOOTREST ASSY(RIGHT)

99999-03523-00

Unavailable

13

COVER, FOOTREST

4WM-27423-00-00

Unavailable

14

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

15

WASHER PLATE 829771780000

90201-05033-00

$10.49

16

NUT, U

95617-05100-00

$9.49

17

SHAFT

3D8-27427-00-00

$7.99

18

SPRING, RETURN

4NK-27426-00-00

$6.99

19

CIRCLIP(53L)

99001-06600-00

$1.01

20

MOLE 2

4WM-27497-00-00

Unavailable

21

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

22

BOLT, BUTTON HEAD

92017-10020-00

$8.49

23

REAR FOOTREST ASSY 1

4WM-27430-00-00

Unavailable

24

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

25

PIN, CLEVIS

90240-06146-00

Unavailable

26

PIN, COTTER (648)

91490-20015-00

Unavailable

27

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

28

BOLT

90111-08002-00

Unavailable

29

REAR FOOTREST ASSY 2

4WM-27440-00-00

Unavailable

30

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

31

PIN, CLEVIS

90240-06146-00

Unavailable

32

PIN, COTTER (648)

91490-20015-00

Unavailable

33

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

34

BOLT

90111-08002-00

Unavailable

35

BRACKET 3

4WM-27443-10-00

Unavailable

36

NUT, SELF-LOCKING

90185-08169-00

Unavailable

37

STAND, SIDE

4WM-27311-00-00

Unavailable

38

COLLAR(4NK)

90387-1007K-00

Unavailable

39

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

40

NUT, U

90185-10037-00

Unavailable

41

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
