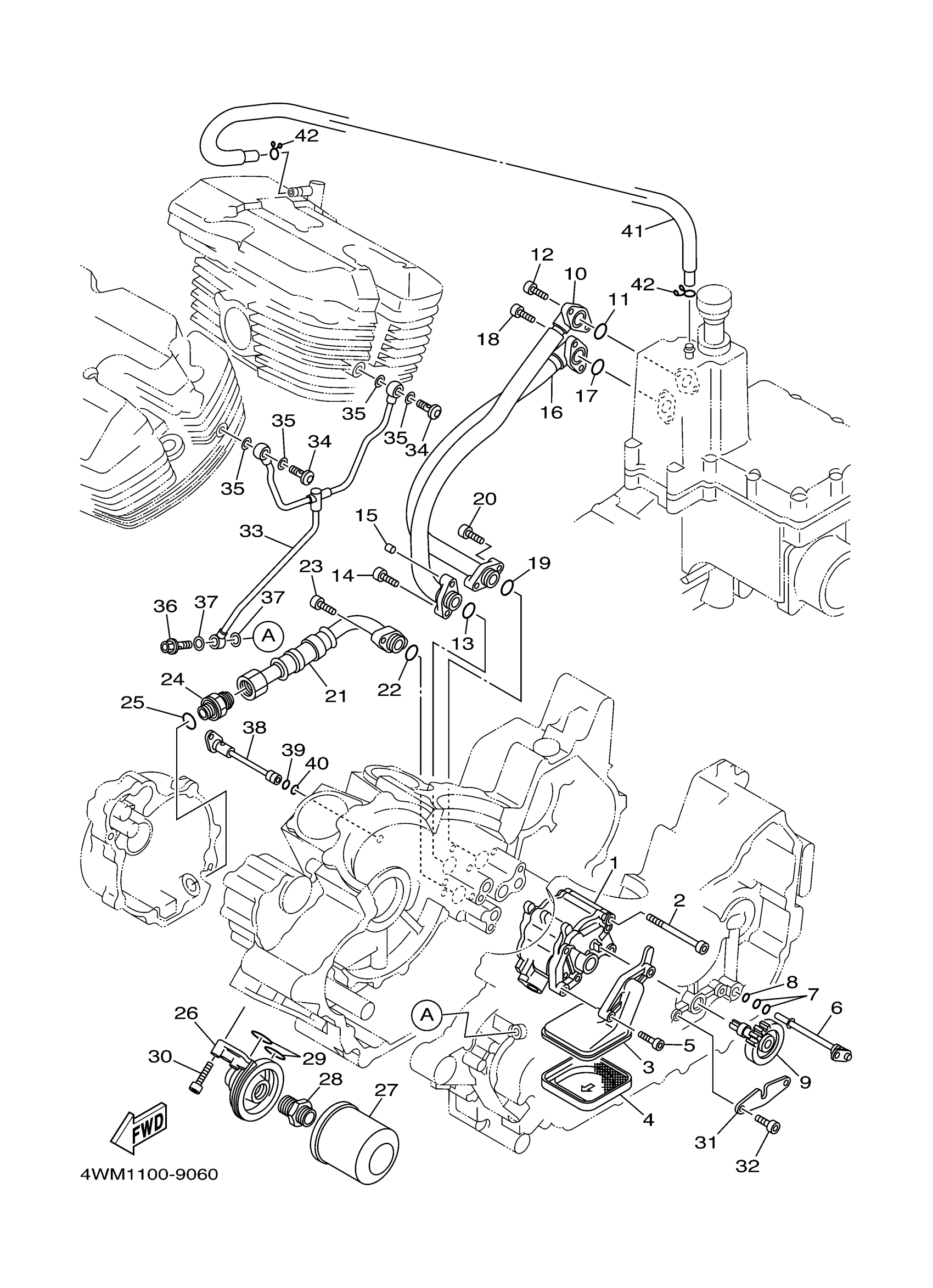

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 OIL PUMP Diagram
#
1
OIL PUMP ASSY
5PX-13300-03-00
Unavailable
2
BOLT,SOCKET
91317-06080-00
Unavailable
3
HOUSING, STRAINER
4WM-13412-00-00
Unavailable
4
STRAINER, OIL
4WM-13411-00-00
Unavailable
6
PIPE, DELIVERY 2
4WM-13171-00-00
Unavailable
10
PIPE, OIL 1
4WM-13416-01-00
Unavailable
12
BOLT,SOCKET
91317-06020-00
Unavailable
16
PIPE, OIL 2
4WM-13418-00-00
Unavailable
18
BOLT,SOCKET
91317-06020-00
Unavailable
21
PIPE, DELIVERY 1
4WM-13161-00-00
Unavailable
22
O-RING(36Y)
93210-13657-00
Unavailable
24
BOLT 1
4WM-13573-00-00
Unavailable
25
O-RING(1L9)
93210-16325-00
Unavailable
26
PLATE, ADAPTOR
4WM-13461-00-00
Unavailable
27
ELEMENT ASSY, OIL CLEANER
3FV-13440-31-00
Unavailable
28
BOLT, UNION
90401-20007-00
Unavailable
29
O-RING (4V2)
93210-23326-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
31
PLATE, STOPPER 1
4WM-1357N-01-00
Unavailable
32
BOLT,SOCKET
91317-06016-00
Unavailable
33
OIL PIPE COMP. 1
4WM-13405-00-00
Unavailable
34
BOLT, UNION
90401-10175-00
Unavailable
35
GASKET
90430-10188-00
Unavailable
36
BOLT, UNION
90401-08176-00
Unavailable
37
GASKET
90430-08119-00
Unavailable
38
PIPE, DELIVERY 3
4WM-13181-00-00
Unavailable
39
O-RING
93210-08003-00
Unavailable
40
O-RING (11M)
93210-07540-00
Unavailable
41
HOSE, OIL 1
4WM-13464-00-00
Unavailable
42
CLIP
90467-100A1-00
Unavailable
