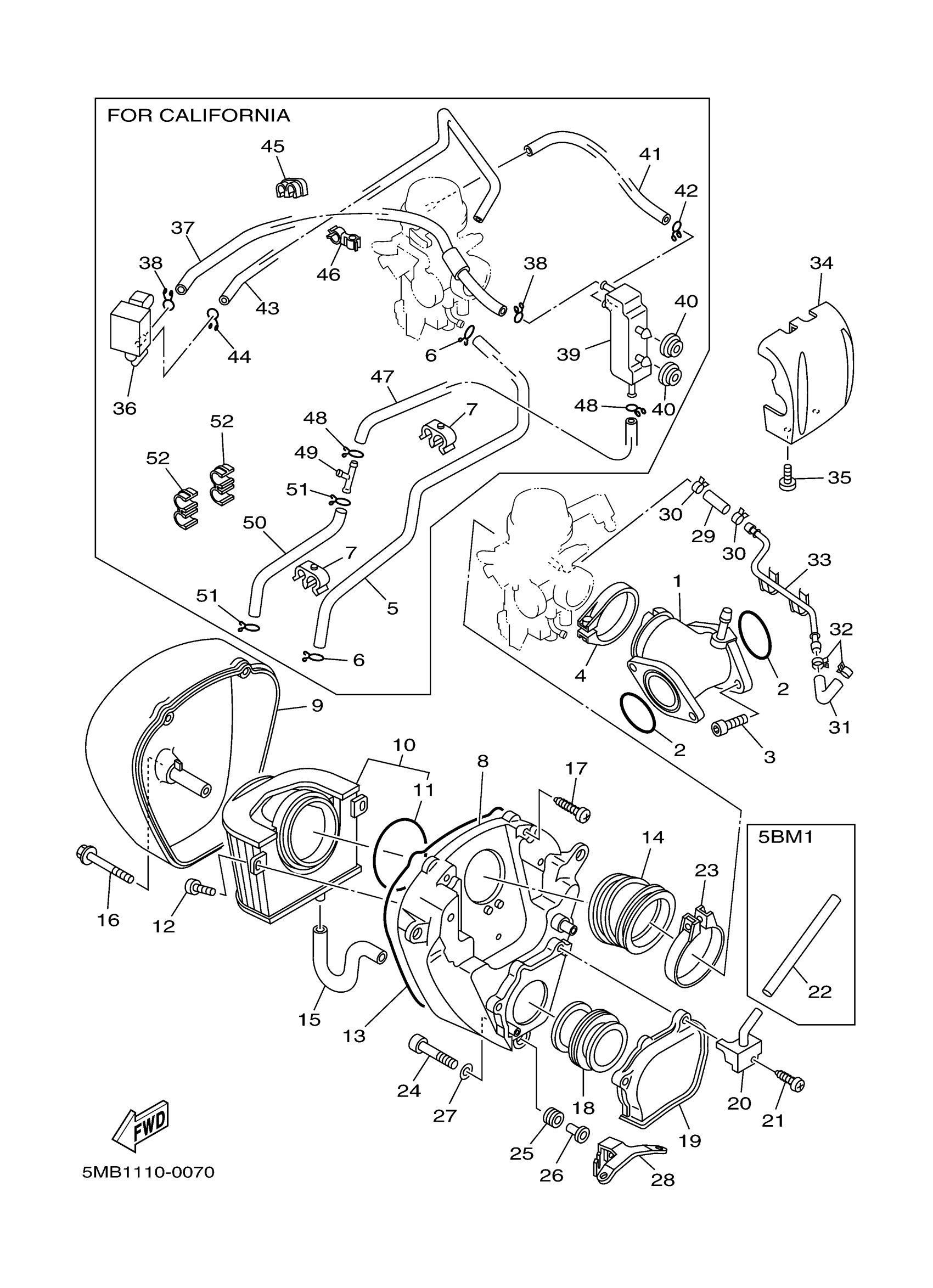

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 INTAKE Diagram
#
3
BOLT,SOCKET
91317-06020-00
Unavailable
5
PIPE, SUCTION 1
4WM-14423-00-00
Unavailable
8
CASE, AIR CLEANER 1
4WM-14411-01-00
Unavailable
9
CASE, AIR CLEANER 2
4WM-14421-00-00
Unavailable
15
PIPE, DRAIN
4WM-1443E-00-00
Unavailable
16
SCREW
90149-06331-00
Unavailable
17
SCREW, PAN TAP.2
97707-60540-00
Unavailable
18
DUCT
4WM-14437-00-00
Unavailable
19
COVER 1
4WM-14417-00-00
Unavailable
20
STAY
4WM-14413-00-00
Unavailable
21
SCREW, PAN TAP.2
97707-50525-00
Unavailable
22
HOSE (L210)
90445-110F5-00
Unavailable
23
HOSE CLAMP ASSY
90450-67002-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD(3JP)
90110-06240-00
Unavailable
25
GROMMET 839774310000
90480-14023-00
Unavailable
26
COLLAR 437216330000
90387-07391-00
Unavailable
27
WASHER
90209-06250-00
Unavailable
28
STAY 1
4WM-14498-00-00
Unavailable
29
HOSE (L30)
90445-146K8-00
Unavailable
30
CLIP(3YX)
90467-13133-00
Unavailable
31
HOSE
4WM-14294-00-00
Unavailable
32
CLIP(3YX)
90467-13133-00
Unavailable
33
PIPE, FUEL
4WM-14295-00-00
Unavailable
34
COVER, CONTROL RACK
4WM-13993-01-00
Unavailable
35
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
36
VALVE, OUTER VENT CONTROL 2
4WM-14896-00-00
Unavailable
37
PIPE 14
4WM-24325-01-00
Unavailable
39
TANK, SURGE
4WM-1446E-00-00
Unavailable
40
GROMMET(4FU)
90480-13567-00
Unavailable
41
PIPE
4WM-14349-01-00
Unavailable
43
PIPE 1
4WM-14348-00-00
Unavailable
45
CLAMP(4PE)
90464-12224-00
Unavailable
46
CLAMP
90464-11001-00
Unavailable
47
PIPE
4WM-14196-00-00
Unavailable
49
WAY 3 (10L)
90413-07007-00
Unavailable
50
PIPE
4WM-14193-00-00
Unavailable
52
CLAMP(4PE)
90464-12224-00
Unavailable
