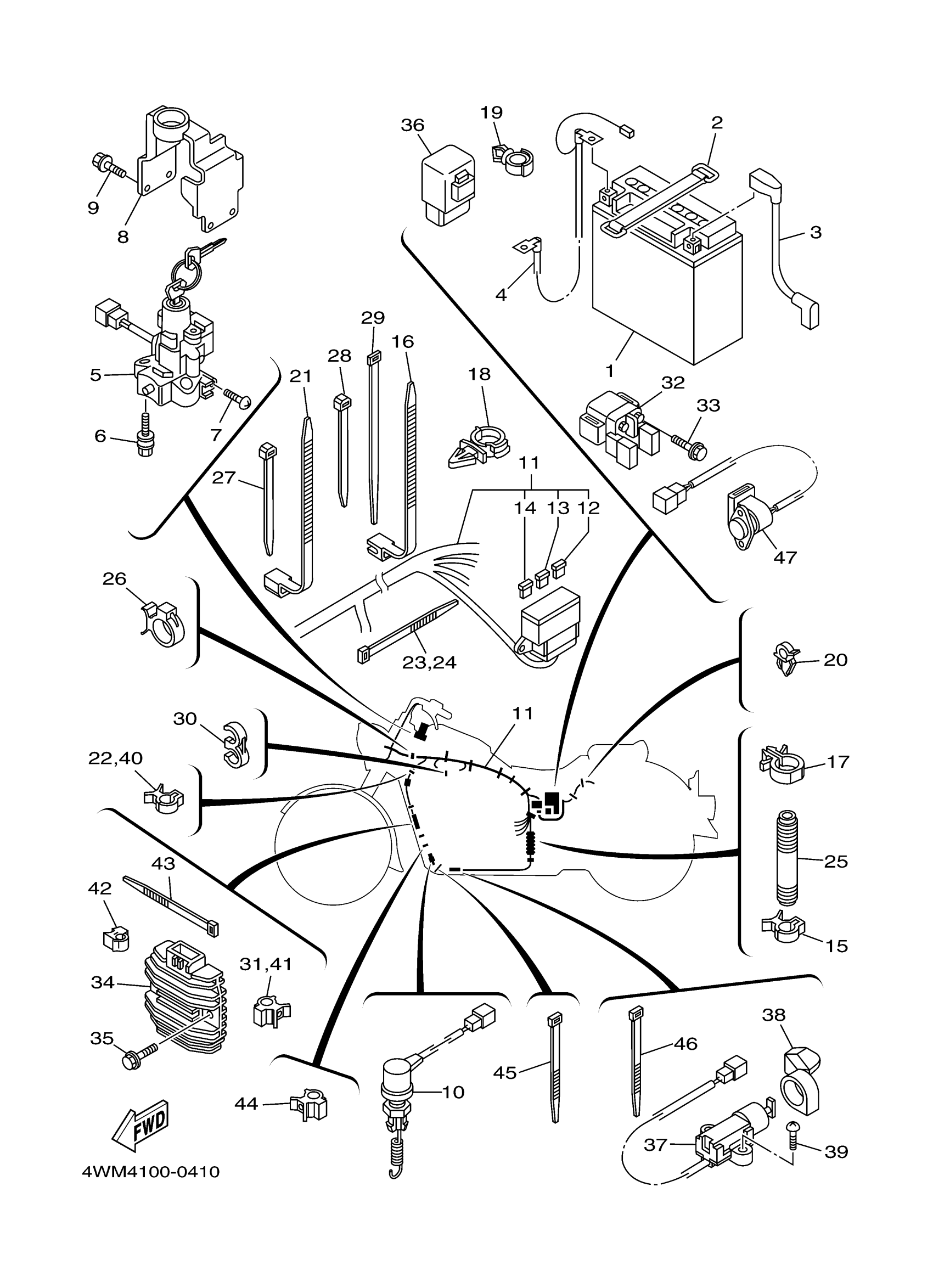

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 ELECTRICAL 2 Diagram
#
1
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
2
BAND, BATTERY
4WM-82131-00-00
Unavailable
5
MAIN SWITCH STEERING LOCK
5MB-82501-02-00
Unavailable
8
COVER, MAIN SWITCH
4WM-82568-00-00
Unavailable
10
STOP SWITCH ASSY
4WM-82530-00-00
Unavailable
11
WIRE HARNESS ASSY
4WM-82590-10-00
Unavailable
11
WIRE HARNESS ASSY
4WM-82590-10-00
Unavailable
15
CLAMP(4GY)
90464-20191-00
Unavailable
16
CLAMP(M80)
90464-07209-00
Unavailable
17
CLAMP(4NK)
90464-24230-00
Unavailable
18
CLAMP(4FM)
90464-15195-00
Unavailable
19
CLAMP(4AP)
90464-20181-00
Unavailable
20
CLAMP
90464-08263-00
Unavailable
21
CLAMP(4FM)
90464-15195-00
Unavailable
22
CLAMP(4HM)
90464-15192-00
Unavailable
23
BAND
1UA-82591-00-00
Unavailable
24
BAND
1UA-82591-00-00
Unavailable
25
TUBE
4WM-82139-00-00
Unavailable
26
CLAMP(4GY)
90464-20191-00
Unavailable
27
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
28
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
29
BAND
1UA-82591-00-00
Unavailable
30
CLAMP(56R)
90464-60067-00
Unavailable
31
CLAMP(4GY)
90464-10190-00
Unavailable
32
STARTER RELAY ASSY (RC19-005)
4BH-81940-02-00
Unavailable
33
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
34
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
Unavailable
35
BOLT, FLANGE
95817-06020-00
Unavailable
36
RELAY ASSY
3EN-81950-02-00
Unavailable
37
SWITCH, SIDE STAND
3LD-82566-71-00
Unavailable
38
COVER
4WM-8252U-00-00
Unavailable
39
SCREW, PAN HEAD
98507-05014-00
Unavailable
40
CLAMP(4HM)
90464-15192-00
Unavailable
41
CLAMP(4GY)
90464-10190-00
Unavailable
41
CLAMP(4HM)
90464-15192-00
Unavailable
42
CLAMP(4GY)
90464-05188-00
Unavailable
43
BAND
1UA-82591-00-00
Unavailable
44
CLAMP(4GY)
90464-10190-00
Unavailable
45
BAND
1UA-82591-00-00
Unavailable
46
BAND
1UA-82591-00-00
Unavailable
47
THERMO SWITCH ASSY
4TR-82560-00-00
Unavailable
