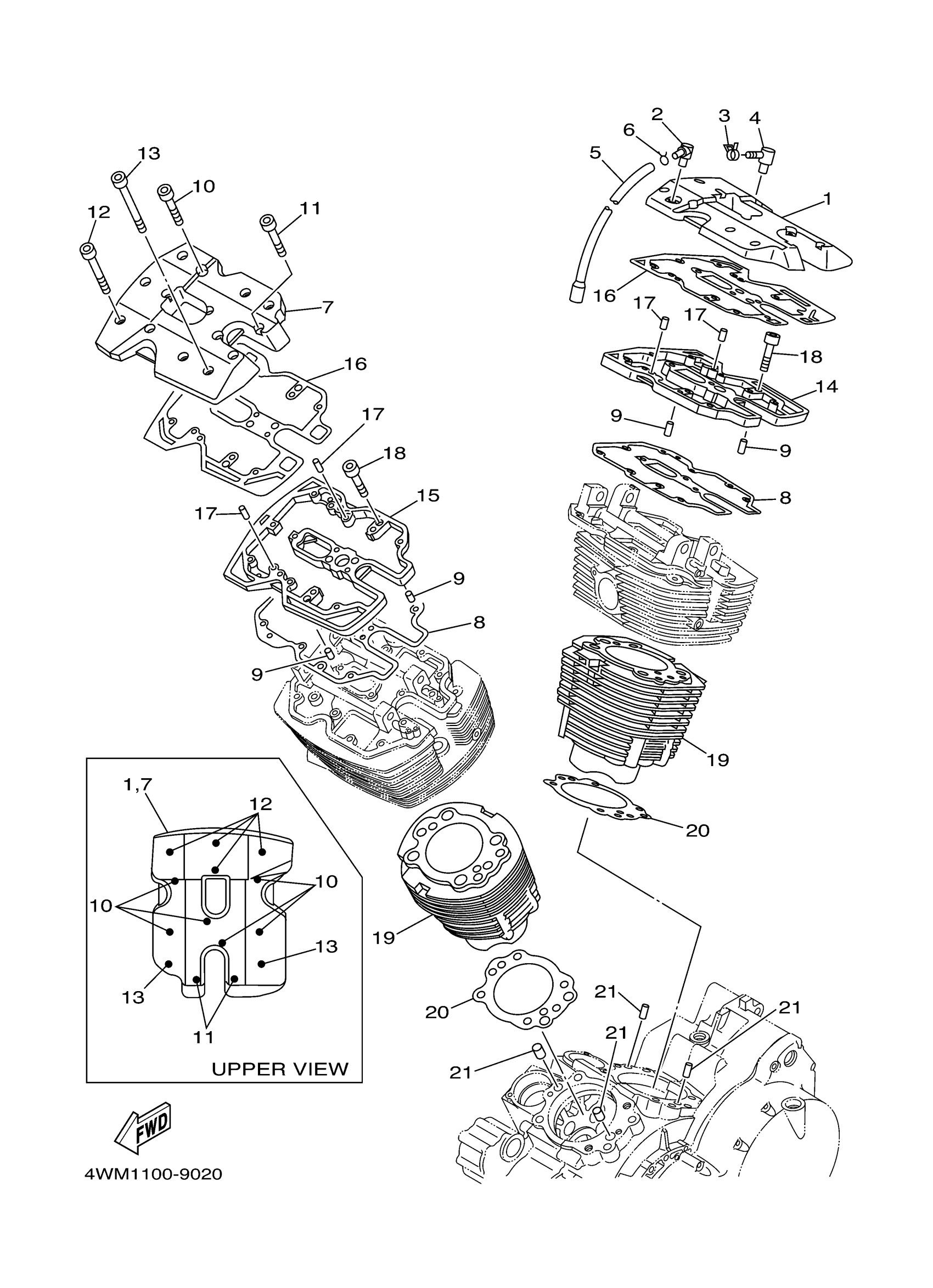

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 CYLINDER Diagram
#
Description
Price
1
COVER, CYLINDER HEAD 1
4WM-11191-00-00
Unavailable
2
BREATHER
4GL-15371-01-00
Unavailable
4
PIPE, BREATHER 3
4WM-11126-00-00
Unavailable
5
PIPE, BREATHER 1
4WM-11166-00-00
Unavailable
6
CLIP(6M6)
90467-13M13-00
Unavailable
7
COVER, CYLINDER HEAD 2
4WM-11192-00-00
Unavailable
14
COVER 1
4WM-1111M-00-00
Unavailable
15
COVER 2
4WM-1111N-00-00
Unavailable
16
GASKET, HEAD COVER 2
4WM-11194-01-00
Unavailable
18
BOLT, SOCKET
91314-06040-00
Unavailable
19
CYLINDER 1
4WM-11311-00-00
Unavailable
20
GASKET, CYLINDER
4WM-11351-00-00
Unavailable
21
COLLAR (4X7)
90387-087A5-00
Unavailable
