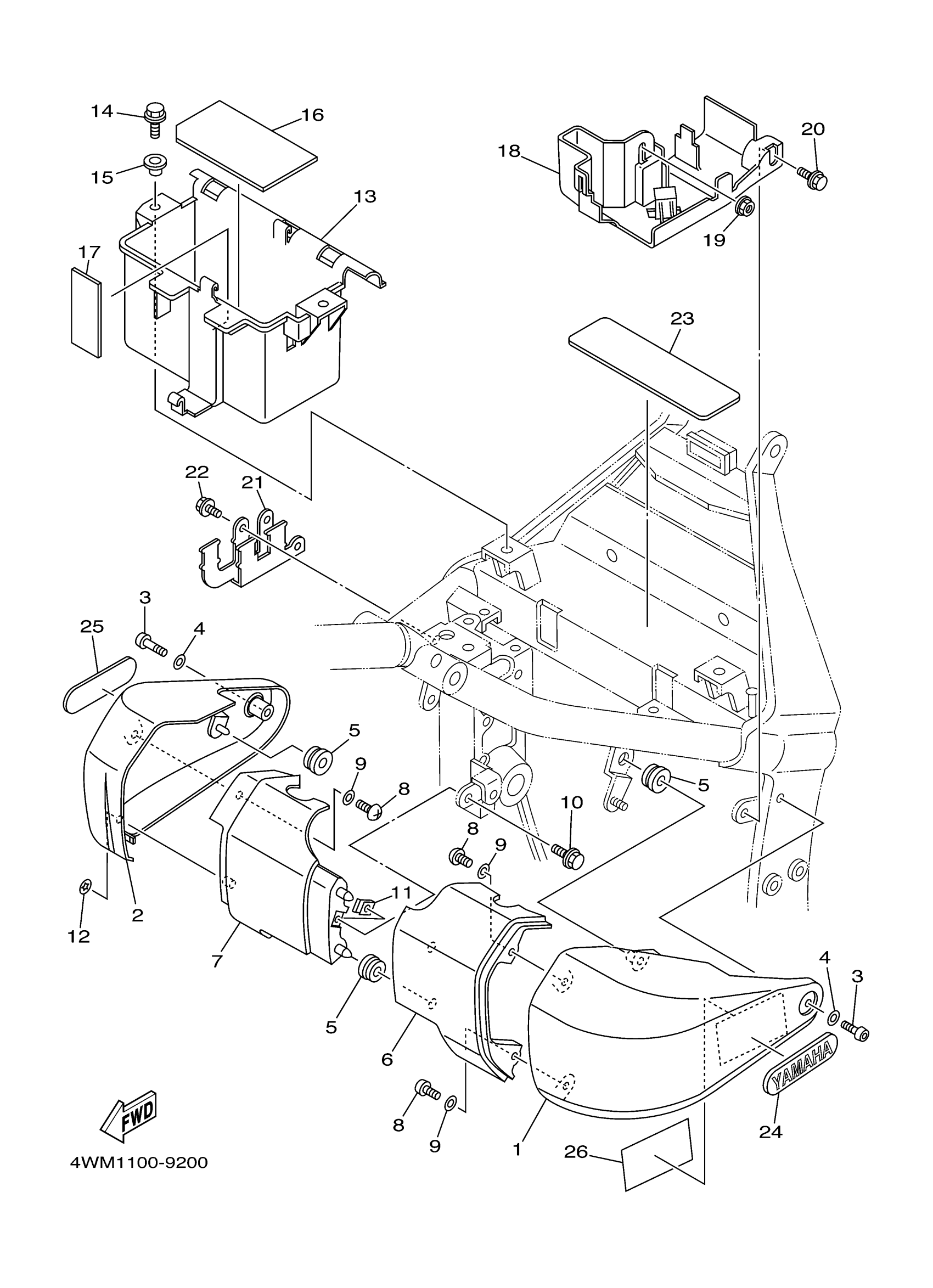

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 SIDE COVER Diagram
#
1
COVER, SIDE 1
4WM-21711-01-P4
Unavailable
1
COVER, SIDE 1
4WM-21711-00-P6
Unavailable
1
COVER, SIDE 1
4WM-21711-01-R0
Unavailable
2
COVER, SIDE 2
4WM-21721-00-P4
Unavailable
2
COVER, SIDE 2 (VERY DARK ORANGE METALLIC 1)
4WM-21721-00-P6
Unavailable
2
COVER, SIDE 2 (GRACEFUL MAROON)
4WM-21721-00-R0
Unavailable
4
WASHER, PLATE
90202-06170-00
Unavailable
6
COVER 9 (VERY DARK BLUE METALLIC A)
4WM-2117X-00-P4
Unavailable
6
COVER 9 (VERY DARK ORANGE METALLIC 1)
4WM-2117X-00-P6
Unavailable
6
COVER 9 (GRACEFUL MAROON)
4WM-2117X-00-R0
Unavailable
7
COVER 10
4WM-2117Y-00-P4
Unavailable
7
COVER 10 (VERY DARK ORANGE METALLIC 1)
4WM-2117Y-00-P6
Unavailable
7
COVER 10 (GRACEFUL MAROON)
4WM-2117Y-00-R0
Unavailable
8
SCREW, PAN
98507-06014-00
Unavailable
9
WASHER(6TA)
92907-06600-00
Unavailable
10
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
11
NUT, SPRING(4ES)
90183-06069-00
Unavailable
12
NUT, SPRING(8AJ)
90183-05068-00
Unavailable
13
BOX, BATTERY
4WM-2177G-00-00
Unavailable
14
BOLT, FLANGE
95817-06014-00
Unavailable
15
COLLAR (3L1)
90387-07717-00
Unavailable
16
SEAT, BATTERY
51Y-82122-00-00
Unavailable
17
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
18
STAY, SIDE COVER 1
4WM-2172E-00-00
Unavailable
19
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
20
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
21
BRACKET 1
4WM-2172K-00-00
Unavailable
22
BOLT, FLANGE
95817-06010-00
Unavailable
23
SHEET 2
4WM-21267-00-00
Unavailable
24
EMBLEM 1
3LS-21781-00-00
Unavailable
25
EMBLEM 1
3LS-21781-00-00
Unavailable
26
PLATE, EPA 2 (CALIFORNIA)
4WM-2179R-40-00
Unavailable
26
PLATE, EPA 1 (NON CALIFORNIA)
4WM-2179V-40-00
Unavailable
