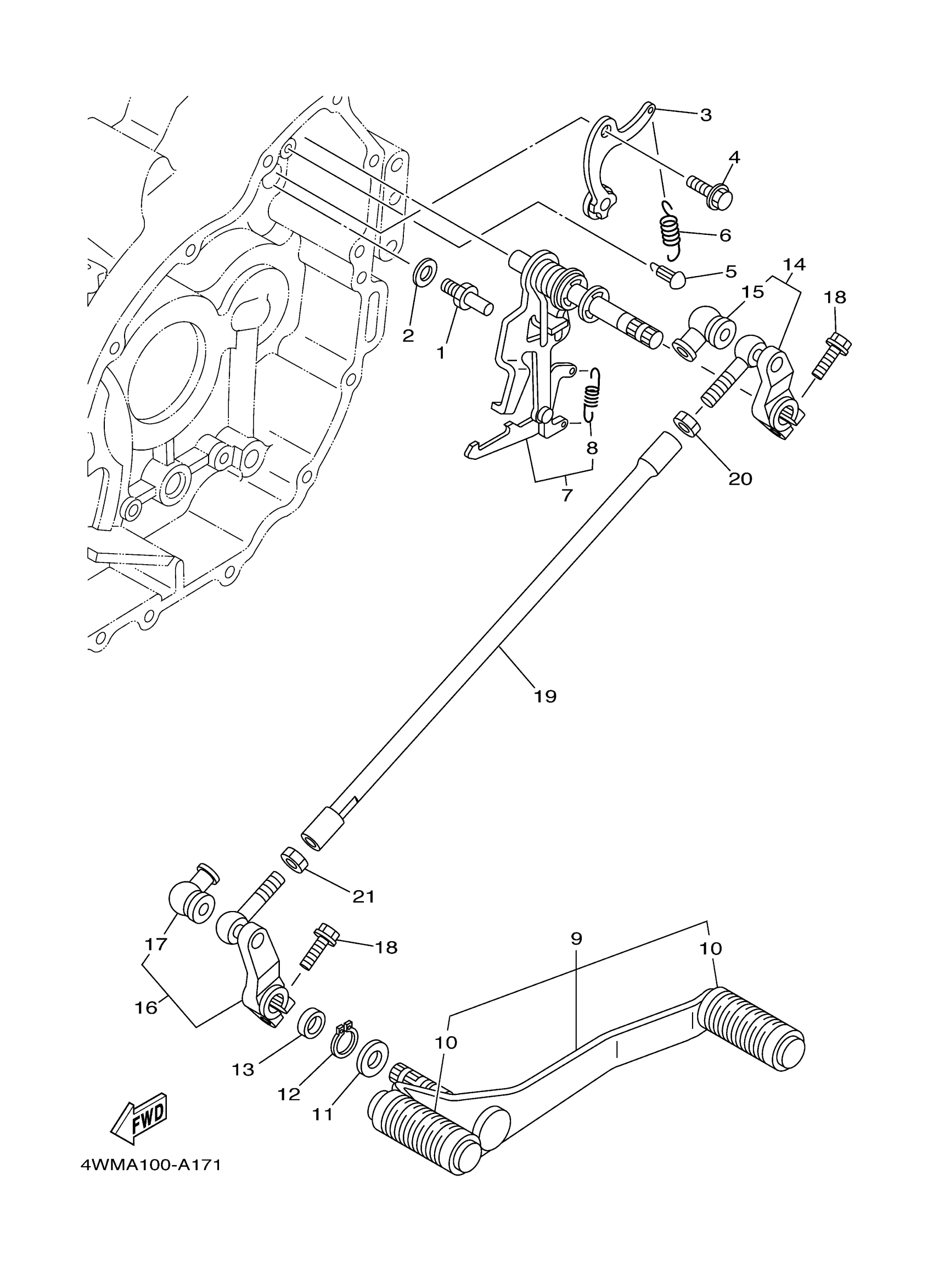

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 SHIFT SHAFT Diagram

#

Description
Price

1

BOLT (1J7)

90109-08441-00

$8.49

2

WASHER PLATE 141181390000

90201-08085-00

$9.49

3

STOPPER LEVER ASSY

26H-18140-02-00

Unavailable

4

BOLT

90109-06036-00

$9.49

5

HOOK, SPRING

132-16346-00-00

$9.99

6

SPRING, TENSION(4NK)

90507-14064-00

$8.49

7

SHIFT SHAFT ASSY

4WM-18101-01-00

Unavailable

8

SPRING, TENSION (4H7)

90506-08227-00

$4.19

9

SHIFT PEDAL ASSY

4WM-18110-01-00

$131.99

10

COVER, SHIFT PEDAL

4NK-18113-10-00

$7.99

11

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

12

CIRCLIP

99006-10600-00

$9.49

13

COVER, DUST

4WM-18154-00-00

$6.99

14

SHIFT SHAFT ASSY

5VN-18130-00-00

Unavailable

15

COVER, DUST

2H9-18154-00-00

$5.49

16

SHIFT LEVER ASSY

5VN-18150-00-00

Unavailable

17

COVER, DUST

2H9-18154-00-00

$5.49

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

ROD, SHIFT

4WM-18115-00-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

NUT(1KT)

90170-08358-00

Unavailable
