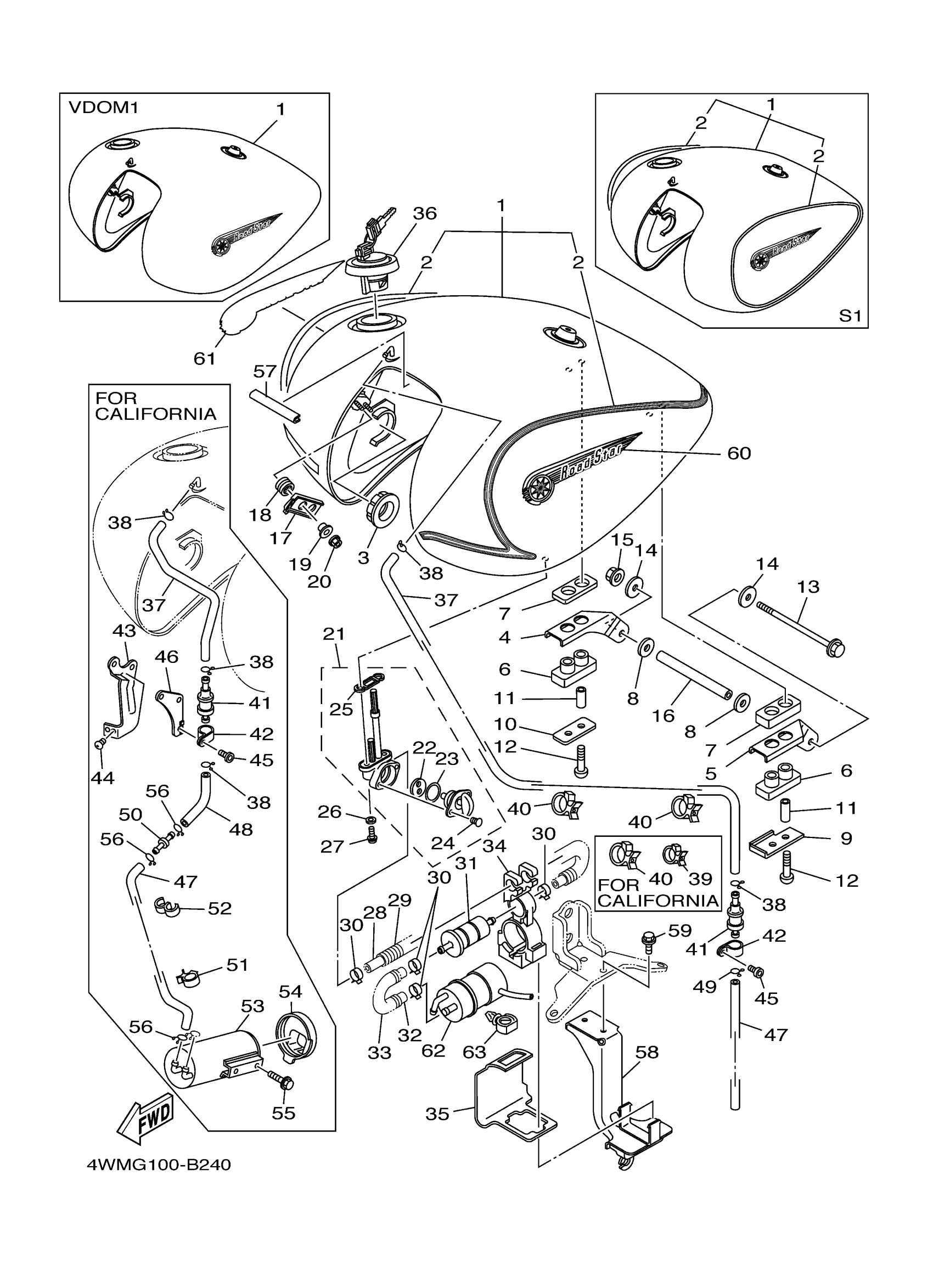

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VERY DARK BLUE METALLIC A) (DARK VIOLET METALLIC A)
4WM-Y2410-31-W3
Unavailable
1
FUEL TANK COMP.
4WM-Y2410-M0-01
Unavailable
1
FUEL TANK COMP. (VERY DARK ORANGE METALLIC 1)
4WM-YK241-31-P4
Unavailable
2
. GRAPHIC SET (SILVER 3)
4WM-24240-B0-00
Unavailable
2
. GRAPHIC SET (DARK VIOLET METALLIC A)
5GA-24240-50-00
Unavailable
4
BRACKET, FUEL TANK 1
5MB-24191-00-00
Unavailable
5
BRACKET, FUEL TANK 2
5MB-24192-00-00
Unavailable
6
DAMPER, LOCATING 1
5MB-24181-00-00
Unavailable
9
WASHER, SPECIAL
5MB-24186-00-00
Unavailable
10
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
11
COLLAR
90387-06062-00
Unavailable
13
BOLT, FLANGE
95817-06140-00
Unavailable
14
WASHER, PLATE 1012832300
90201-06066-00
Unavailable
15
NUT, CROWN(1FN)
90176-06055-00
Unavailable
16
COLLAR
90387-06061-00
Unavailable
17
BRACKET, FUEL TANK 1
4WM-24291-00-00
Unavailable
18
GROMMET
4WM-24339-00-00
Unavailable
19
COLLAR(82M)
90387-050T5-00
Unavailable
20
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
21
FUEL COCK ASSY 1
4WM-24500-10-00
Unavailable
22
VALVE PACKING
3AC-24523-00-00
Unavailable
23
SEAL, COCK
3AJ-24534-01-00
Unavailable
24
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
25
O-RING
4X8-24512-00-00
Unavailable
26
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
27
SCREW 256241430000
90149-06011-00
Unavailable
28
PIPE, FUEL 1
4WM-24311-00-00
Unavailable
29
SPRING
4WM-24393-00-00
Unavailable
30
CLIP(3YX)
90467-13133-00
Unavailable
31
FILTER ASSY
1FK-24560-10-00
Unavailable
32
PIPE 2
4WM-24312-00-00
Unavailable
33
SPRING
4WM-24394-00-00
Unavailable
34
BAND 1
4WM-24398-00-00
Unavailable
35
COVER
4WM-24217-00-00
Unavailable
36
CAP ASSY
4NK-24602-20-00
Unavailable
37
PIPE 10
4WM-24321-00-00
Unavailable
37
PIPE 10
4WM-24321-10-00
Unavailable
38
CLIP
90467-100A1-00
Unavailable
39
CLAMP(4HM)
90464-15192-00
Unavailable
40
CLAMP(4KM)
90464-25217-00
Unavailable
40
CLAMP(4KM)
90464-25217-00
Unavailable
41
ROLL OVER VALVE ASSY
4WM-24180-00-00
Unavailable
42
CLAMP
90464-15014-00
Unavailable
43
BRACKET 4
4WM-2148X-00-00
Unavailable
44
GASKET, EXHAUST
98507-05008-00
Unavailable
45
SCREW, BINDING
98907-05012-00
Unavailable
46
STAY
4WM-24662-00-00
Unavailable
47
PIPE 11
4WM-24322-00-00
Unavailable
47
HOSE (L400)
90445-116K9-00
Unavailable
48
PIPE 12
4WM-24323-00-00
Unavailable
49
CLIP
90467-100A1-00
Unavailable
50
JOINT
4XY-14568-00-00
Unavailable
51
CLAMP(4HM)
90464-15192-00
Unavailable
52
CLAMP(6M7)
90464-09M31-00
Unavailable
53
CANISTER ASSY
4WM-24170-00-00
Unavailable
54
COVER, CANISTER
4WM-2419E-00-00
Unavailable
55
BOLT, WASHER BASED
90105-06009-00
Unavailable
56
CLIP
90467-100A1-00
Unavailable
57
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
58
BRACKET, FUEL PUMP
4WM-24491-01-00
Unavailable
59
BOLT, FLANGE
95817-06016-00
Unavailable
60
EMBLEM
4WM-2416B-00-00
Unavailable
61
EMBLEM
4WM-2417B-00-00
Unavailable
62
FUEL PUMP COMP
4WM-13907-01-00
Unavailable
63
CLAMP
90464-13249-00
Unavailable
