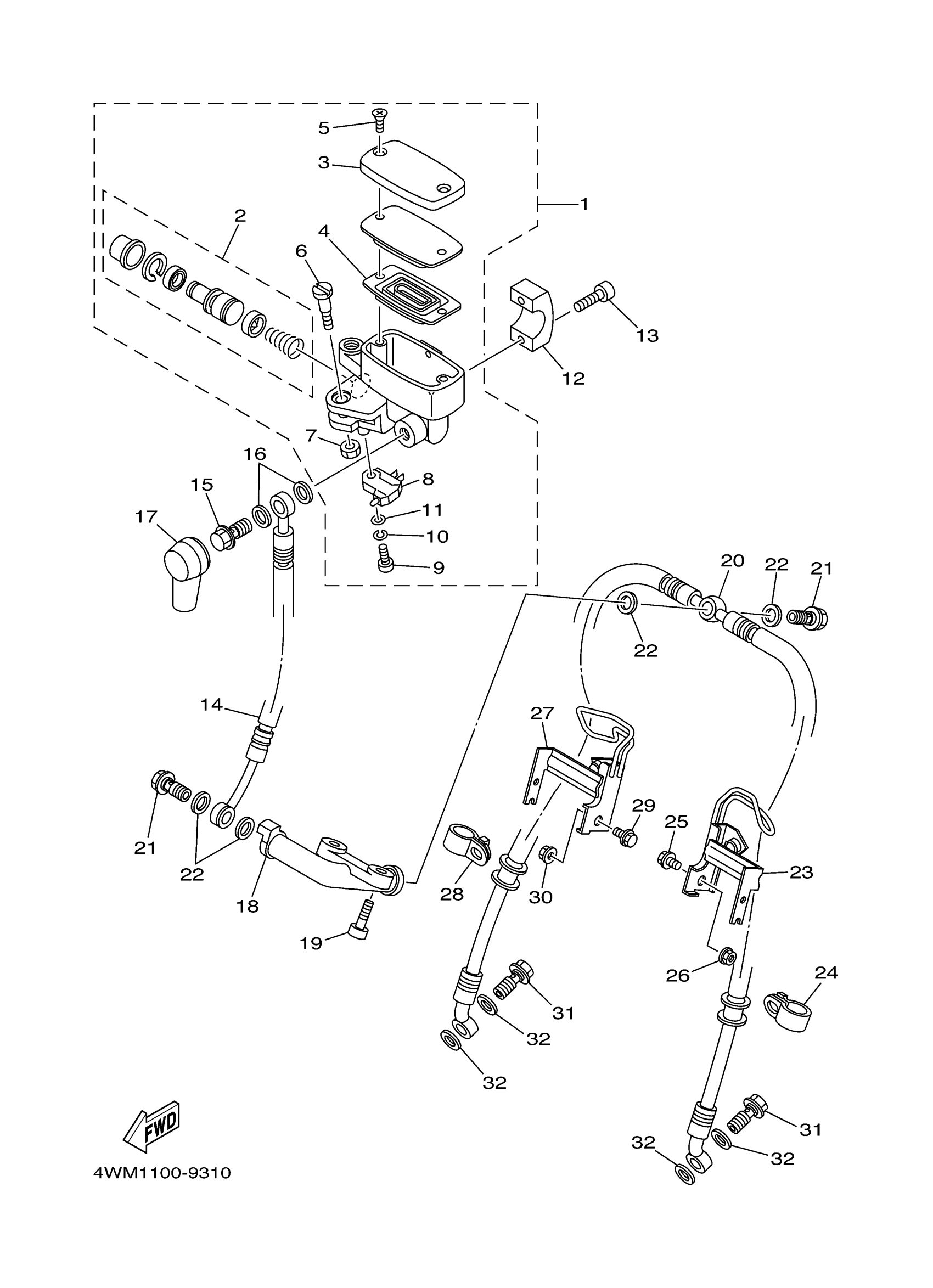

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4NK-W2587-02-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

WASHER(6TA)

92907-04100-00

$8.49

11

WASHER(JF2)

92907-04600-00

$1.71

12

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

HOSE, BRAKE 1

4WM-25872-00-00

Unavailable

15

BOLT, UNION(3GM)

90401-10159-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

18

JOINT

4NK-25885-00-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

HOSE, BRAKE 2

4WM-25873-00-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

$11.49

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRAKE HOSE 1

4WM-25875-00-00

Unavailable

24

CLAMP 1

90461-08031-00

Unavailable

25

BOLT, FLANGE

90105-06007-00

Unavailable

26

NUT(55X)

90179-08491-00

Unavailable

27

HOLDER, BRAKE HOSE

4WM-25886-00-00

Unavailable

28

CLAMP 1

90461-08031-00

Unavailable

29

BOLT, FLANGE

90105-06007-00

Unavailable

30

NUT(55X)

90179-08491-00

Unavailable

31

BOLT, UNION(3GM)

90401-10159-00

$11.49

32

WASHER, PLATE(481)

90201-10118-00

Unavailable
