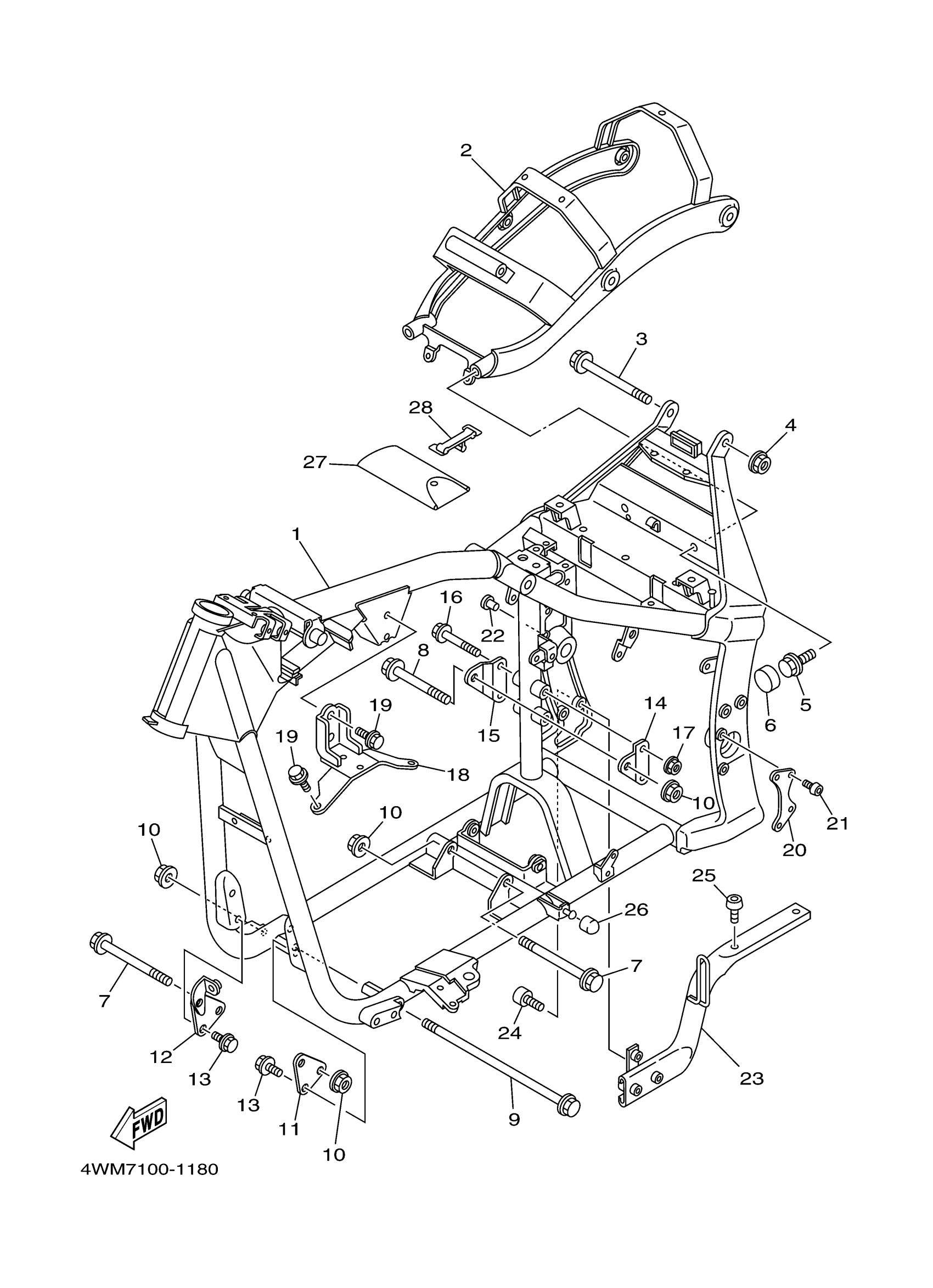

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 FRAME Diagram
#
Description
Price
1
FRAME COMP.
5VN-21110-01-00
Unavailable
2
REAR FRAME COMP.
4WM-21190-00-00
Unavailable
3
BOLT, FLANGE
90105-12087-00
Unavailable
7
BOLT, FLANGE
90105-12087-00
Unavailable
8
BOLT, FLANGE
90105-12689-00
Unavailable
9
BOLT, WASHER BASED
90105-126A6-00
Unavailable
12
STAY, ENGINE 5
4WM-21318-00-00
Unavailable
14
STAY, ENGINE 2
4WM-21315-00-00
Unavailable
15
STAY, ENGINE 3
4WM-21316-00-00
Unavailable
16
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
17
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
18
STAY, ENGINE 3
4WM-21317-00-00
Unavailable
19
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
20
STAY 1
5VN-2137F-00-00
Unavailable
21
BOLT
90111-10003-00
Unavailable
22
PLUG (341-26329-00)
90338-09012-00
Unavailable
23
STAY, MUFFLER 1
5MB-21445-00-00
Unavailable
24
BOLT, SOCKET
91317-10025-00
Unavailable
25
BOLT, BUTTON HEAD
92017-10020-00
Unavailable
26
STOPPER, MAIN STAND
3VR-27114-00-00
Unavailable
27
TOOL KIT
4WM-28100-00-00
Unavailable
28
BAND
55K-2811G-00-00
Unavailable
