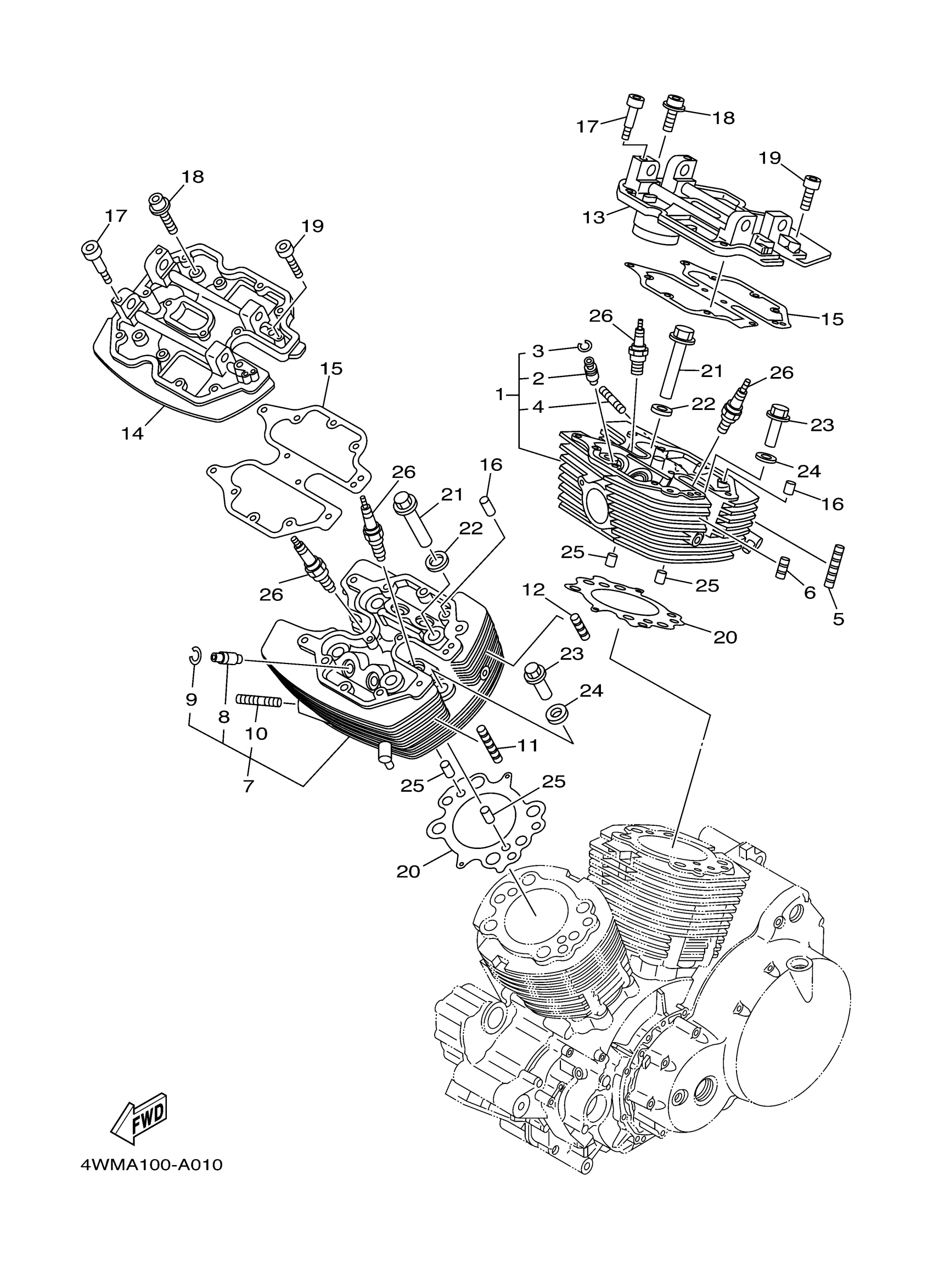

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

4WM-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

4WM-11133-10-00

$57.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, STUD 3

95617-08625-00

$8.49

5

ABSORBER 1

4WM-11161-00-00

Unavailable

6

ABSORBER 1

4WM-11161-00-00

Unavailable

7

CYLINDER HEAD ASSY

4WM-11101-10-00

Unavailable

8

GUIDE, INTAKE VALVE

4WM-11133-10-00

$57.99

9

CIRCLIP (1L9)

93440-12052-00

$2.44

10

BOLT, STUD 3

95617-08625-00

$8.49

11

ABSORBER 1

4WM-11161-00-00

Unavailable

12

ABSORBER 1

4WM-11161-00-00

Unavailable

13

HEAD, CYLINDER 3

4WM-11131-00-00

Unavailable

14

HEAD, CYLINDER 4

4WM-11141-00-00

Unavailable

15

GASKET, CYLINDER HEAD 2

4WM-11182-00-00

$50.99

16

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

17

BOLT (583 OIL DRAIN)

90109-06419-00

Unavailable

18

BOLT(3AK)

90109-067E6-00

Unavailable

19

BOLT, SOCKET

91314-06045-00

Unavailable

20

GASKET, CYLINDER HEAD 1

4WM-11181-00-00

Unavailable

21

NUT, HOLDING

5PX-11171-00-00

Unavailable

22

WASHER, HOLDING 1

5VN-11175-00-00

Unavailable

23

NUT, HOLDING

4WM-11172-00-00

Unavailable

24

WASHER, HOLDING

4WM-11176-00-00

Unavailable

25

COLLAR (4X7)

90387-087A5-00

Unavailable

26

DPR7EA9 NGK SPLUG 10PK

DPR-7EA90-00-00

Unavailable
