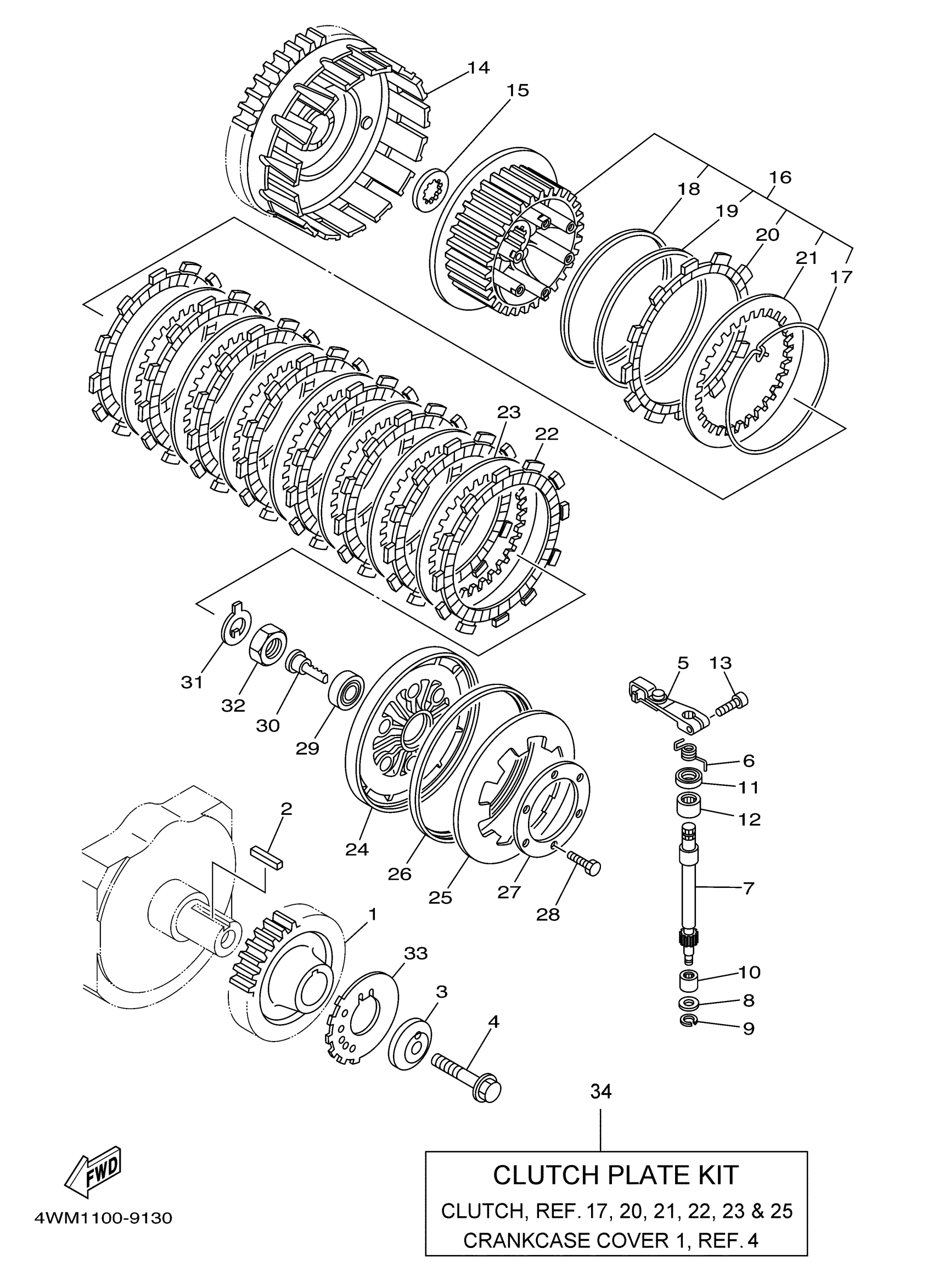

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
4WM-16111-00-00
Unavailable
2
KEY, FEATHER
4WM-16193-00-00
Unavailable
3
SPACER 1
4WM-16181-00-00
Unavailable
5
PUSH LEVER ASSY
4WM-16340-00-00
Unavailable
7
AXLE, PUSH LEVER
4WM-16382-00-00
Unavailable
9
CIRCLIP
99080-07600-00
Unavailable
14
PRIMARY DRIVEN GEAR COMP.
4WM-16150-00-00
Unavailable
15
PLATE, THRUST 1
26H-16154-00-00
Unavailable
16
CLUTCH BOSS ASSY
5PX-16370-00-00
Unavailable
17
RING, CLUTCH BOSS
26H-16385-00-00
Unavailable
18
PLATE, SEAT
26H-16384-00-00
Unavailable
19
SPRING, CLUTCH BOSS
1FK-16383-00-00
Unavailable
20
PLATE, FRICTION
26H-16321-01-00
Unavailable
21
PLATE, CLUTCH 1
26H-16324-10-00
Unavailable
22
PLATE, FRICTION 3
26H-16307-01-00
Unavailable
23
PLATE, CLUTCH 1
26H-16324-10-00
Unavailable
24
PLATE, PRESSURE 1
1FK-16351-00-00
Unavailable
25
SPRING, CLUTCH 2
4NK-16334-00-00
Unavailable
26
HOUSING, SPRING
1FK-16335-00-00
Unavailable
27
PLATE, PRESSURE 2
1FK-16352-00-00
Unavailable
28
BOLT, HEXAGON
97017-06025-00
Unavailable
29
BEARING(2JN)
93306-00315-00
Unavailable
30
ROD, PUSH 1
4XV-16356-01-00
Unavailable
31
WASHER, LOCK (26H)
90215-25218-00
Unavailable
32
NUT (26H)
90170-20323-00
Unavailable
33
ROTOR
4WM-81673-00-00
Unavailable
34
CLUTCH PLATE KIT
4WM-W001G-00-00
Unavailable
