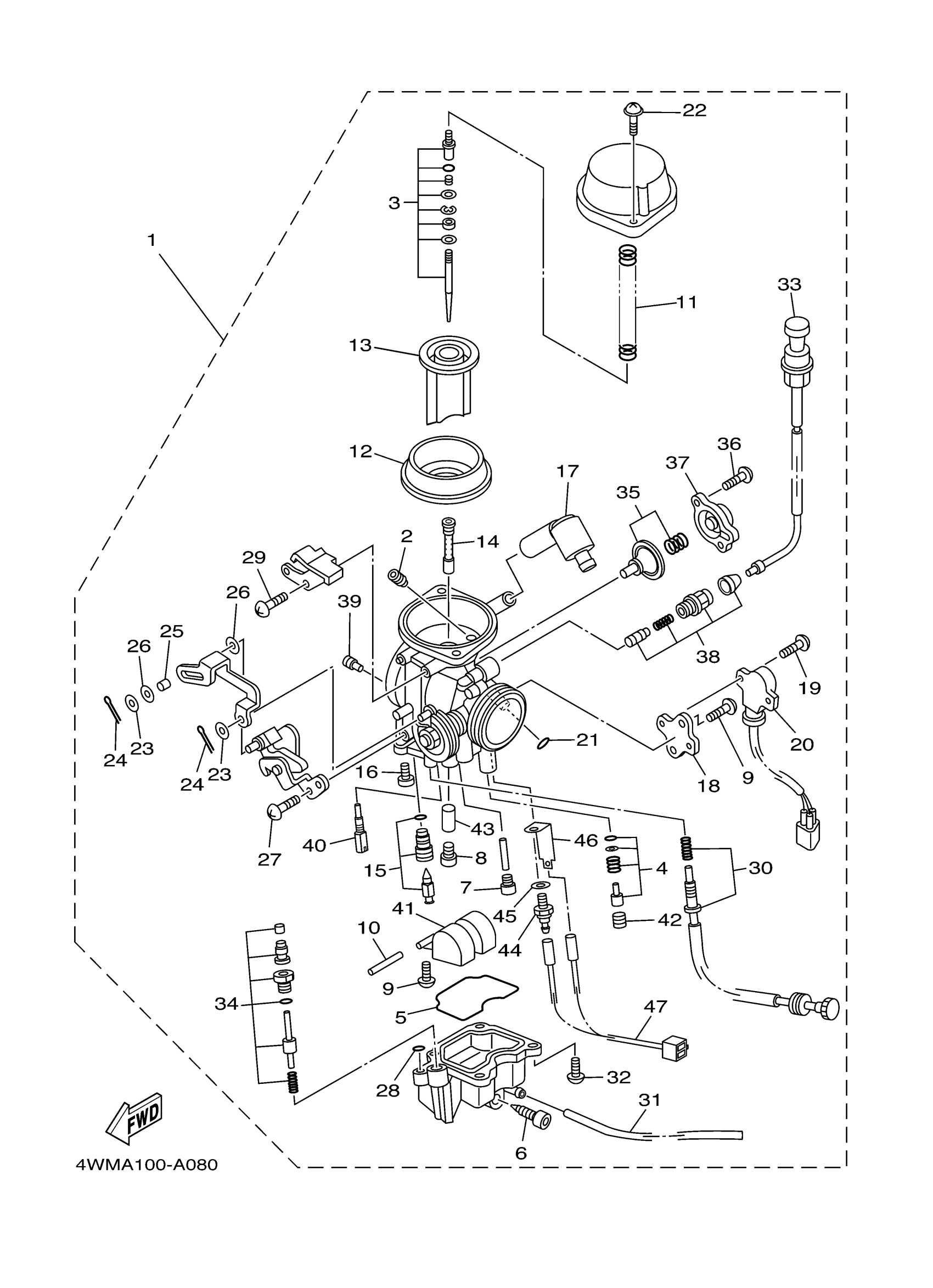

Yamaha XV1600ARC (ROAD STAR CA) 4WMH 2003 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
4WM-14101-03-00
Unavailable
1
CARB ASSY 1 CA
4WM-14101-13-00
Unavailable
4
PILOT SCREW SET
4WM-14105-00-00
Unavailable
7
. JET,MAIN (06)
3G2-14231-00-00
Unavailable
12
DIAPHRAGM
4SV-24411-00-00
Unavailable
13
VALVE, THROTTLE 1
4SV-14112-00-00
Unavailable
15
NEEDLE VALVE SET
5UH-14107-20-00
Unavailable
16
SCREW
1FN-14565-00-00
Unavailable
17
PIPE
4SV-14197-00-00
Unavailable
18
. BRACKET 1
4WM-14291-00-00
Unavailable
19
SCREW
4WM-14565-00-00
Unavailable
20
THROTTLE SENSOR ASSY
4WM-85885-00-00
Unavailable
21
NET, FILTER
3XV-14994-00-00
Unavailable
22
SCREW
4KM-14216-00-00
Unavailable
23
. WASHER
73A-14973-00-00
Unavailable
24
. PIN, COTTER
91492-12008-00
Unavailable
25
COLLAR
4WM-14264-00-00
Unavailable
26
WASHER
4WM-14327-00-00
Unavailable
27
GASKET, EXHAUST
98507-05008-00
Unavailable
28
O-RING
3FV-14147-00-00
Unavailable
29
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
30
THROTTLE SCREW SET
4WM-14103-00-00
Unavailable
31
HOSE
4WM-14987-00-00
Unavailable
32
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
33
CABLE
4WM-14130-00-00
Unavailable
34
ROD SET
4WM-14504-00-00
Unavailable
35
DIAPHRAGM SET 5
4WM-1490H-00-00
Unavailable
36
SCREW, PAN HEAD
98517-04012-00
Unavailable
37
COVER, DIAPHRAGM
3LD-14958-00-00
Unavailable
38
STARTER SET
4WM-1410A-00-00
Unavailable
39
JET, MAIN (#100)
1HX-14231-20-00
Unavailable
40
JET, PILOT (# 35)
4KM-14142-35-00
Unavailable
41
FLOAT
5DM-14985-00-00
Unavailable
42
CAP
3F9-14118-00-00
Unavailable
43
. RING
4WM-14918-00-00
Unavailable
44
HEATER ASSY
5FU-83790-20-00
Unavailable
45
WASHER, PLATE
90201-08016-00
Unavailable
46
TERMINAL 1
5FU-82103-00-00
Unavailable
47
WIRE, SUB LEAD
4WM-81517-00-00
Unavailable
