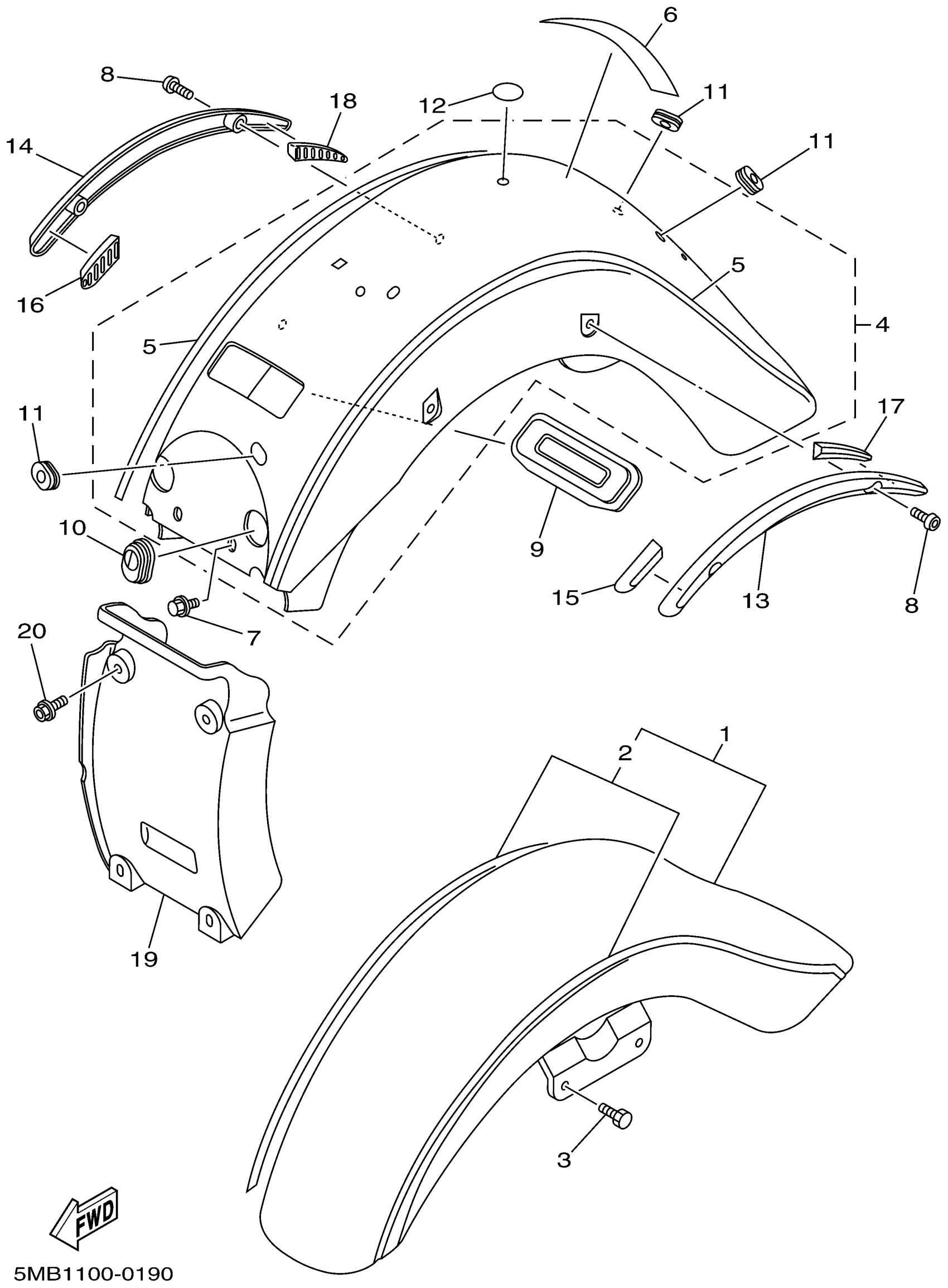

Yamaha XV1600APC (ROAD STAR CA) 4WMB 2002 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY (VERY DARK BLUE METALLIC A)
4WM-Y2150-G0-P2
Unavailable
1
FRONT FENDER ASSY (LIGHT YELLOWISH GRAY ME 9) (DEEP SCARLET)
4WM-Y2150-J0-9X
Unavailable
1
FRONT FENDER ASSY (DARK VIOLET METALLIC A)
4WM-Y2150-K0-P3
Unavailable
2
. GRAPHIC SET, FRONT FENDER (VERY DARK BLUE METALLIC A)
4WM-21570-C0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DEEP SCARLET)
4WM-21570-D0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK VIOLET METALLIC A)
4WM-21570-E0-00
Unavailable
4
REAR FENDER COMP.
99999-03406-00
Unavailable
4
REAR FENDER COMP.
99999-03403-00
Unavailable
4
REAR FENDER COMP.
99999-03407-00
Unavailable
5
. GRAPHIC SET ,REAR FENDER (VERY DARK BLUE METALLIC A)
4WM-2165A-C0-00
Unavailable
5
. GRAPHIC SET, REAR FENDER (DEEP SCARLET)
4WM-2165A-D0-00
Unavailable
5
. GRAPHIC SET, REAR FENDER (DARK VIOLET METALLIC A)
4WM-2165A-E0-00
Unavailable
8
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
9
DAMPER
4WM-21649-00-00
Unavailable
10
DAMPER 1
4WM-21638-00-00
Unavailable
11
GROMMET (438)
90480-15061-00
Unavailable
12
SEAL 2
4NK-21735-00-00
Unavailable
13
STAY 1
4WM-2164F-00-00
Unavailable
14
STAY 2
4WM-2164G-00-00
Unavailable
15
DAMPER 1
4WM-21541-00-00
Unavailable
16
DAMPER 2
4WM-21542-00-00
Unavailable
17
DAMPER
4WM-2174X-00-00
Unavailable
18
DAMPER
4WM-2174Y-00-00
Unavailable
19
GUARD, MUD (LIGHT YELLOWISH GRAY ME 9)
4WM-21629-00-P2
Unavailable
19
GUARD, MUD (VERY DARK BLUE METALLIC A)
4WM-21629-00-P4
Unavailable
19
GUARD, MUD (DARK VIOLET METALLIC A)
4WM-21629-00-P5
Unavailable
20
BOLT, WITH WASHER
90119-06226-00
Unavailable
