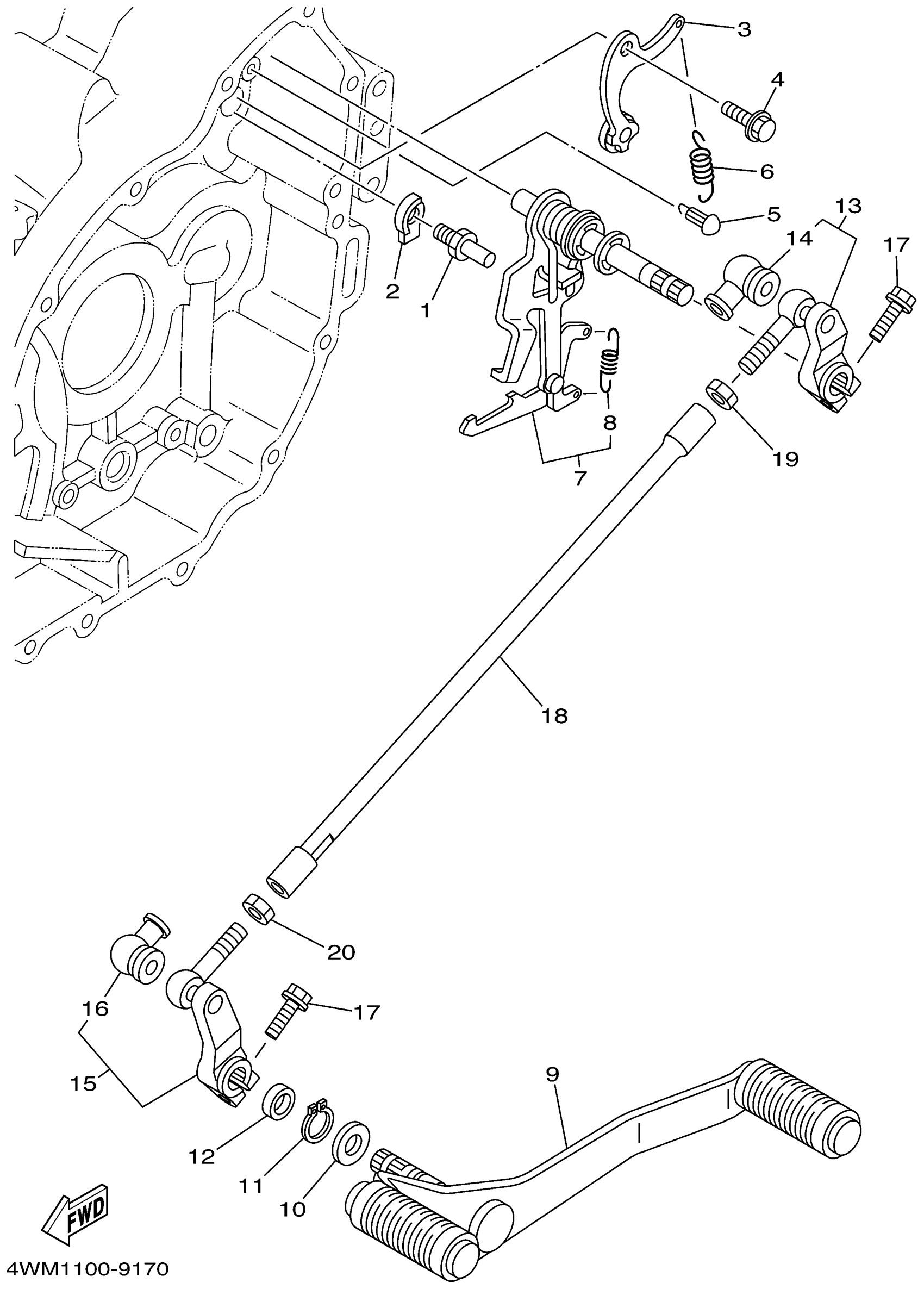

Yamaha XV1600ANC (ROAD STAR CA) 4WM8 2001 SHIFT SHAFT Diagram

#

Description
Price

1

BOLT (1J7)

90109-08441-00

$8.49

2

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

3

STOPPER LEVER ASSY

26H-18140-02-00

Unavailable

4

BOLT

90109-06036-00

$9.49

5

HOOK, SPRING

132-16346-00-00

$9.99

6

SPRING, TENSION(4NK)

90507-14064-00

$8.49

7

SHIFT SHAFT ASSY

4WM-18101-01-00

Unavailable

8

SPRING, TENSION (4H7)

90506-08227-00

$4.19

9

SHIFT PEDAL ASSY

4WM-18110-01-00

$131.99

10

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

11

CIRCLIP

99006-10600-00

$9.49

12

COVER, DUST

4WM-18154-00-00

$6.99

13

SHIFT SHAFT ASSY

5VN-18130-00-00

Unavailable

14

COVER, DUST

2H9-18154-00-00

$5.49

15

SHIFT LEVER ASSY

5VN-18150-00-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

$5.49

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

ROD, SHIFT

4WM-18115-00-00

Unavailable

19

. NUT

95380-08700-00

Unavailable

20

NUT(1KT)

90170-08358-00

Unavailable
