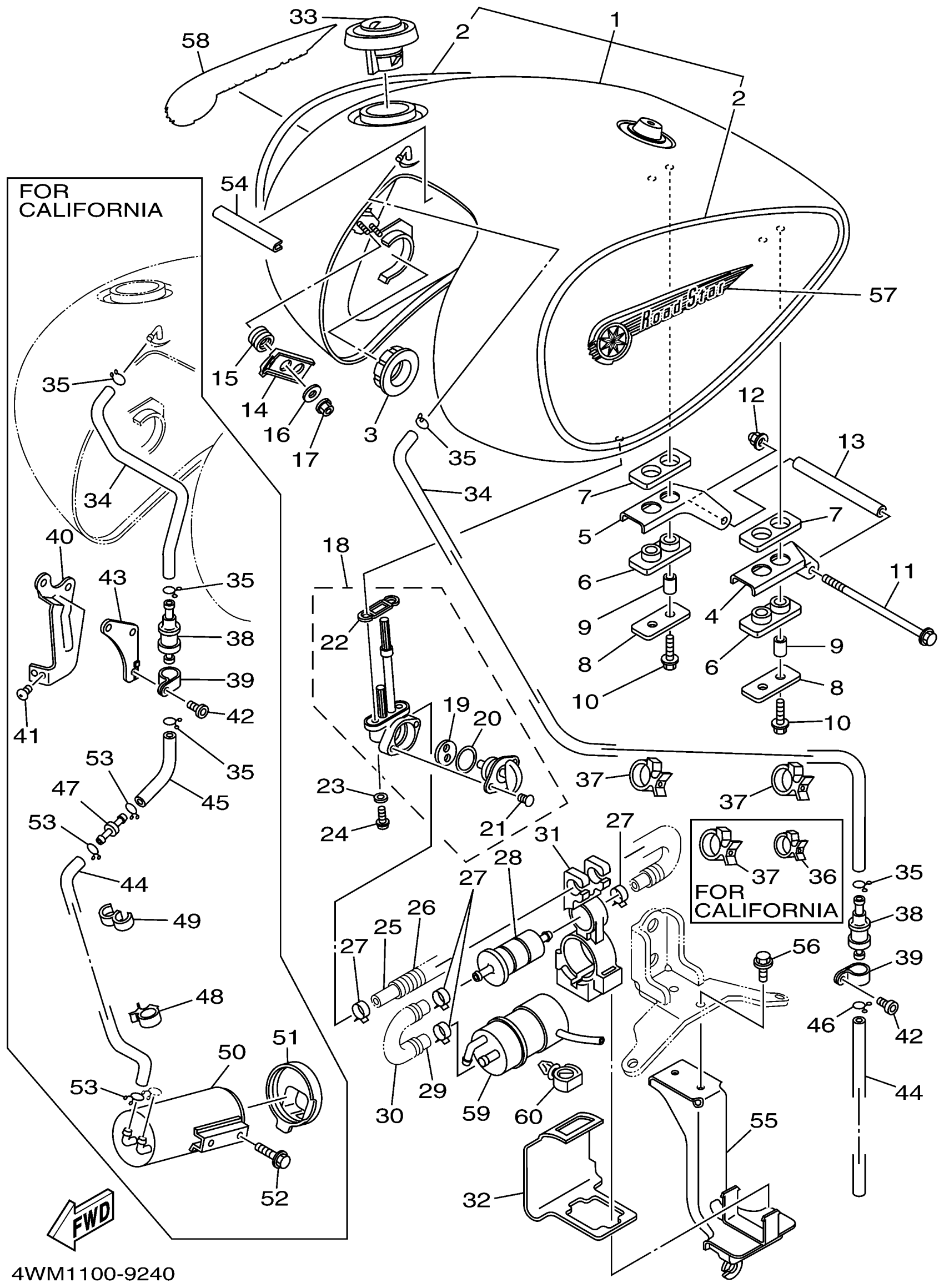

Yamaha XV1600ANC (ROAD STAR CA) 4WM8 2001 FUEL TANK Diagram
#
1
FUEL TANK COMP. (URUSHI BLACK) (BRIGHT CHERRY RED)
4WM-Y2410-31-X2
Unavailable
1
FUEL TANK COMP. (YAMAHA BLACK) (YELLOWISH SILVER 2)
4WM-Y2410-31-X3
Unavailable
1
FUEL TANK COMP. (LIGHT YELLOWISH GRAY ME 9)
4WM-YK241-31-P1
Unavailable
2
. GRAPHIC SET (BRIGHT CHERRY RED)
4WM-24240-50-00
Unavailable
2
. GRAPHIC SET (YAMAHA BLACK)
4WM-24240-70-00
Unavailable
4
BRACKET, FUEL TANK 1
4WM-24191-00-00
Unavailable
5
BRACKET, FUEL TANK 2
4WM-24192-00-00
Unavailable
6
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
7
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
8
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
10
BOLT, FLANGE
95817-06025-00
Unavailable
13
COLLAR
90387-0615R-00
Unavailable
14
BRACKET, FUEL TANK 1
4WM-24291-00-00
Unavailable
15
GROMMET
4WM-24339-00-00
Unavailable
16
COLLAR(82M)
90387-050T5-00
Unavailable
17
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
18
FUEL COCK ASSY 1
4WM-24500-10-00
Unavailable
19
VALVE PACKING
3AC-24523-00-00
Unavailable
20
SEAL, COCK
3AJ-24534-01-00
Unavailable
21
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
22
O-RING
4X8-24512-00-00
Unavailable
23
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
24
SCREW 256241430000
90149-06011-00
Unavailable
25
PIPE, FUEL 1
4WM-24311-00-00
Unavailable
26
SPRING
4WM-24393-00-00
Unavailable
27
CLIP(3YX)
90467-13133-00
Unavailable
28
FILTER ASSY
1FK-24560-10-00
Unavailable
29
PIPE 2
4WM-24312-00-00
Unavailable
30
SPRING
4WM-24394-00-00
Unavailable
31
BAND 1
4WM-24398-00-00
Unavailable
32
COVER
4WM-24217-00-00
Unavailable
33
CAP ASSY
4NK-24602-20-00
Unavailable
34
PIPE 10
4WM-24321-00-00
Unavailable
34
PIPE 10
4WM-24321-10-00
Unavailable
35
CLIP
90467-100A1-00
Unavailable
35
CLIP
90467-100A1-00
Unavailable
36
CLAMP(4HM)
90464-15192-00
Unavailable
37
CLAMP(4KM)
90464-25217-00
Unavailable
37
CLAMP(4KM)
90464-25217-00
Unavailable
38
ROLL OVER VALVE ASSY
4WM-24180-00-00
Unavailable
39
CLAMP
90464-15014-00
Unavailable
40
BRACKET 4
4WM-2148X-00-00
Unavailable
41
GASKET, EXHAUST
98507-05008-00
Unavailable
42
SCREW, BINDING
98907-05012-00
Unavailable
43
STAY
4WM-24662-00-00
Unavailable
44
PIPE 11
4WM-24322-00-00
Unavailable
44
HOSE (L400)
90445-116K9-00
Unavailable
45
PIPE 12
4WM-24323-00-00
Unavailable
46
CLIP
90467-100A1-00
Unavailable
47
JOINT
4XY-14568-00-00
Unavailable
48
CLAMP(4HM)
90464-15192-00
Unavailable
49
CLAMP(6M7)
90464-09M31-00
Unavailable
50
CANISTER ASSY
4WM-24170-00-00
Unavailable
51
COVER, CANISTER
4WM-2419E-00-00
Unavailable
52
BOLT, WASHER BASED
90105-06009-00
Unavailable
53
CLIP
90467-100A1-00
Unavailable
54
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
55
BRACKET, FUEL PUMP
4WM-24491-01-00
Unavailable
56
BOLT, FLANGE
95817-06016-00
Unavailable
57
EMBLEM
4WM-2416B-00-00
Unavailable
58
EMBLEM
4WM-2417B-00-00
Unavailable
59
FUEL PUMP COMP
4WM-13907-01-00
Unavailable
60
CLAMP
90464-13249-00
Unavailable
