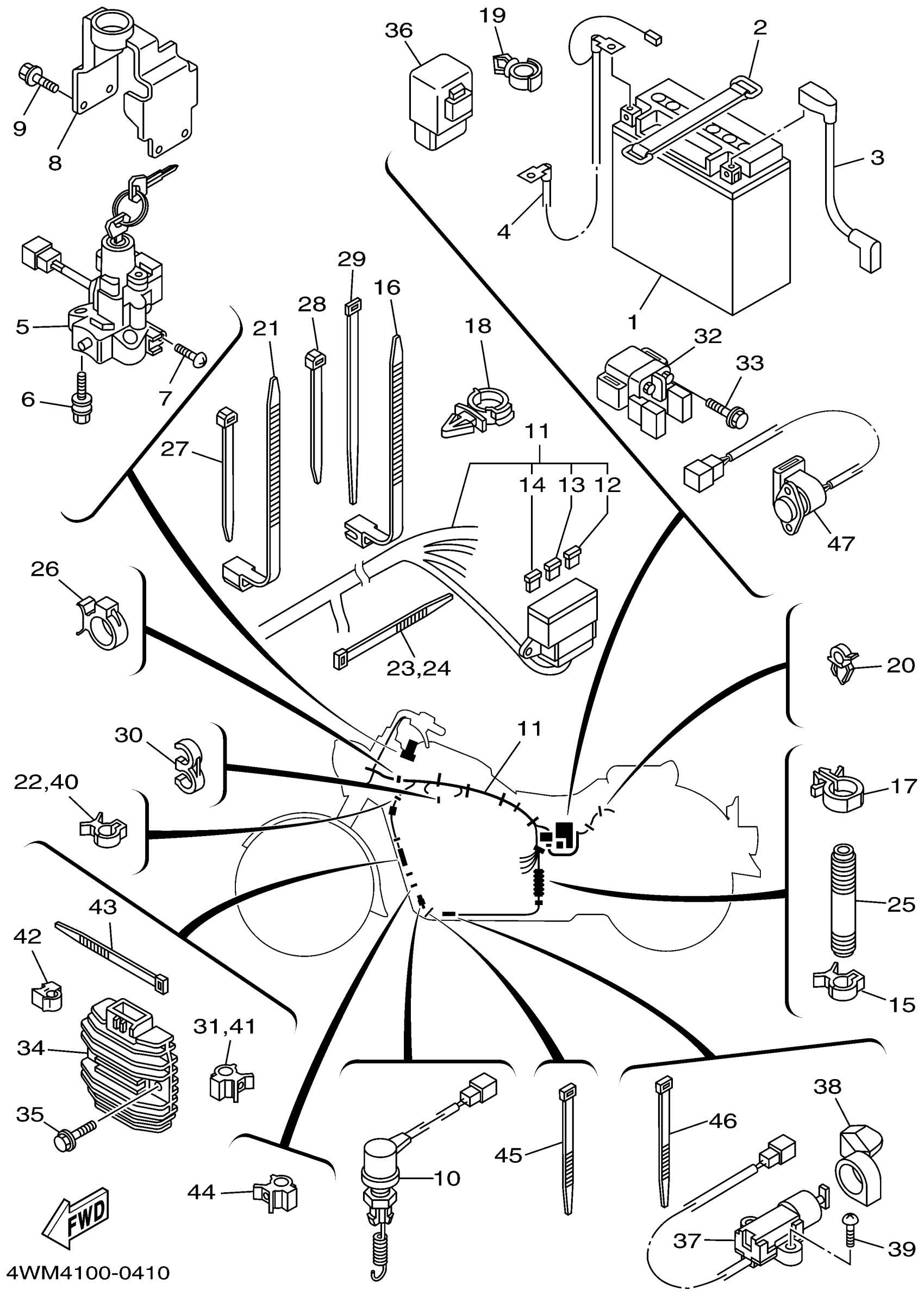

Yamaha XV1600ANC (ROAD STAR CA) 4WM8 2001 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

2

BAND, BATTERY

4WM-82131-00-00

Unavailable

3

WIRE, PLUS LEAD

4NK-82115-00-00

$38.99

4

WIRE, MINUS LEAD

4WM-82116-00-00

$43.99

5

MAIN SWITCH STEERING LOCK

4WM-82501-03-00

$238.99

6

BOLT

90109-08196-00

$8.49

7

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

8

COVER, MAIN SWITCH

4WM-82568-00-00

Unavailable

9

BOLT, FLANGE

95817-06016-00

$2.75

10

STOP SWITCH ASSY

4WM-82530-00-00

Unavailable

11

WIRE HARNESS ASSY

4WM-82590-10-00

Unavailable

11

WIRE HARNESS ASSY

4WM-82590-10-00

Unavailable

12

FUSE

1NL-82151-00-00

$6.99

13

FUSE (12V 15A)

36Y-82151-00-00

$4.94

14

FUSE (10A)

42X-82151-00-00

$4.32

15

CLAMP(4GY)

90464-20191-00

Unavailable

16

CLAMP(M80)

90464-07209-00

Unavailable

17

CLAMP(4NK)

90464-24230-00

Unavailable

18

CLAMP(4FM)

90464-15195-00

Unavailable

19

CLAMP(4AP)

90464-20181-00

Unavailable

20

CLAMP

90464-08263-00

Unavailable

21

CLAMP(4FM)

90464-15195-00

Unavailable

22

CLAMP(4HM)

90464-15192-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

BAND

1UA-82591-00-00

Unavailable

25

TUBE

4WM-82139-00-00

Unavailable

26

CLAMP(4GY)

90464-20191-00

Unavailable

27

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

28

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

29

BAND

1UA-82591-00-00

Unavailable

30

CLAMP(56R)

90464-60067-00

Unavailable

31

CLAMP(4GY)

90464-10190-00

Unavailable

32

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

33

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

34

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

Unavailable

35

BOLT, FLANGE

95817-06020-00

Unavailable

36

RELAY ASSY

3EN-81950-02-00

Unavailable

37

SWITCH, SIDE STAND

3LD-82566-71-00

Unavailable

38

COVER

4WM-8252U-00-00

Unavailable

39

SCREW, PAN HEAD

98507-05014-00

Unavailable

40

CLAMP(4HM)

90464-15192-00

Unavailable

41

CLAMP(4GY)

90464-10190-00

Unavailable

41

CLAMP(4HM)

90464-15192-00

Unavailable

42

CLAMP(4GY)

90464-05188-00

Unavailable

43

BAND

1UA-82591-00-00

Unavailable

44

CLAMP(4GY)

90464-10190-00

Unavailable

45

BAND

1UA-82591-00-00

Unavailable

46

BAND

1UA-82591-00-00

Unavailable

47

THERMO SWITCH ASSY

4TR-82560-00-00

Unavailable
