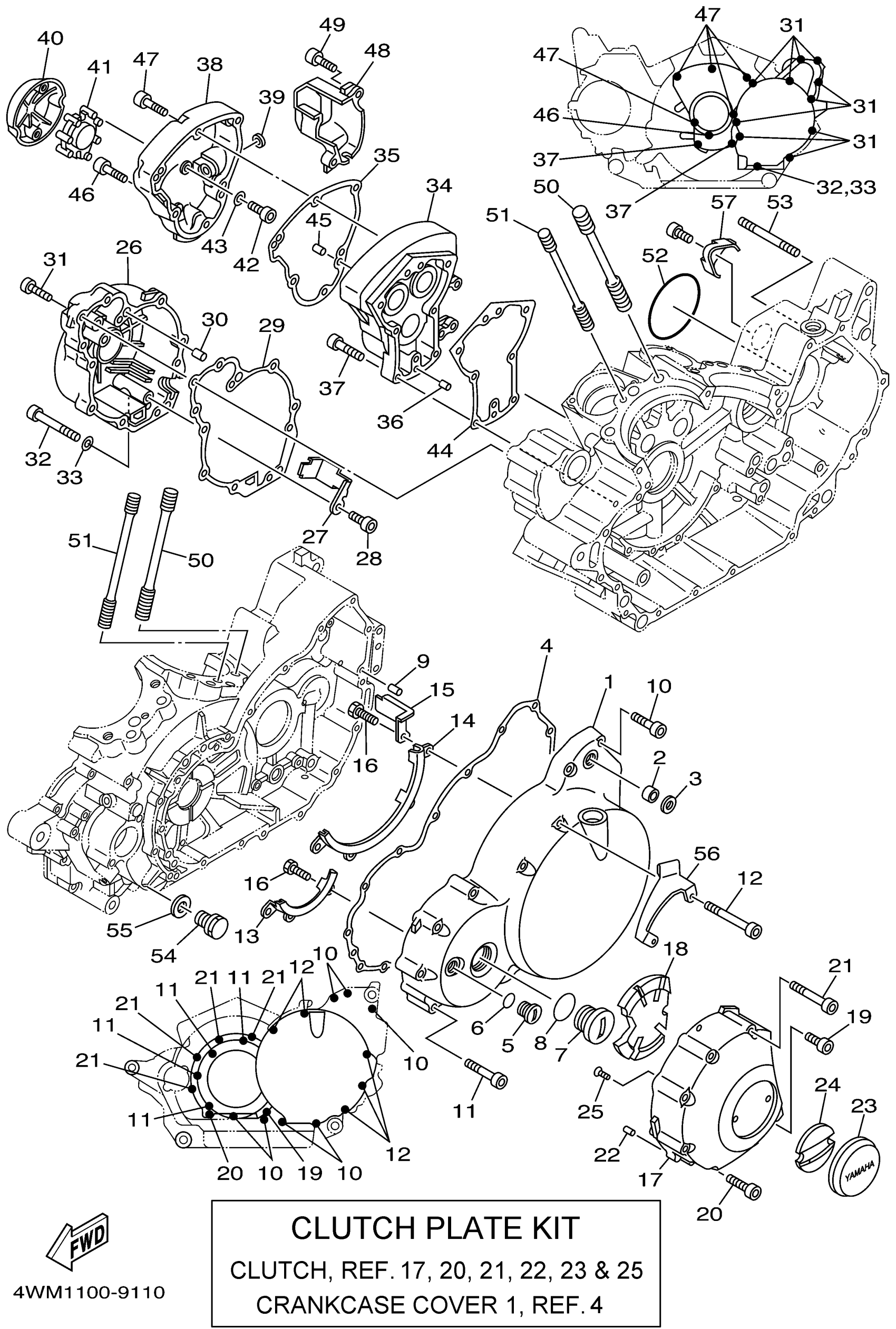

Yamaha XV1600ANC (ROAD STAR CA) 4WM8 2001 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4WM-15411-00-00

Unavailable

2

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

$36.99

3

OIL SEAL (4G0)

93102-12224-00

$10.49

4

GASKET, CRANKCASE COVER 1

5VN-15451-00-00

$28.99

4

GASKET, CRANKCASE COVER 1

5VN-15451-00-00

$28.99

5

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

6

O-RING (2H9)

93210-14369-00

$7.49

7

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

8

O-RING (341)

93210-32172-00

$7.49

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, SOCKET

91314-06035-00

$8.49

11

BOLT, SOCKET

91314-06045-00

$8.49

12

BOLT, SOCKET

91314-06070-00

$8.49

13

GUIDE 1

4WM-15142-00-00

Unavailable

14

GUIDE

4WM-15143-00-00

Unavailable

15

CLAMP 2

4WM-15484-00-00

Unavailable

16

SCREW, PAN

98507-06010-00

Unavailable

17

COVER 2

4WM-15423-00-00

Unavailable

18

DAMPER, ENGINE MOUNT 2

4WM-15326-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

20

BOLT, SOCKET

91314-06035-00

$8.49

21

BOLT, SOCKET

91314-06060-00

Unavailable

22

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

23

COVER, GENERATOR 2

4WM-15425-00-00

Unavailable

24

DAMPER, ENGINE MOUNT 1

4WM-15316-00-00

Unavailable

25

SCREW, FLAT

98707-05012-00

Unavailable

26

COVER, CRANKCASE 2

4WM-15421-00-00

Unavailable

27

GUIDE, INLET

4WM-15377-00-00

Unavailable

28

BOLT,SOCKET

91317-06010-00

Unavailable

29

GASKET, CRANKCASE COVER 2

5PX-15461-02-00

Unavailable

30

PIN, DOWEL(3VD)

99530-10114-00

$2.55

31

BOLT, SOCKET

91314-06030-00

Unavailable

32

BOLT, SOCKET

91314-06065-00

Unavailable

33

GASKET 256113960000

90430-06014-00

Unavailable

34

COVER, CRANKCASE SET

99999-03825-00

Unavailable

35

GASKET, CRANKCASE COVER 3

5YU-15462-01-00

Unavailable

36

PIN, DOWEL(2JG)

93606-10227-00

Unavailable

37

BOLT, SOCKET

91314-06035-00

$8.49

38

COVER, DECOMP.

4WM-12278-01-00

Unavailable

39

OIL SEAL

93109-08803-00

Unavailable

40

COVER, CAP 2

4WM-15427-00-00

Unavailable

41

DAMPER 3

4WM-15335-00-00

Unavailable

42

BOLT,SOCKET

91317-06014-00

Unavailable

43

GASKET 256113960000

90430-06014-00

Unavailable

44

GASKET, DECOMPRESSION

5PX-12286-00-00

Unavailable

45

PIN, DOWEL(2JG)

93606-10227-00

Unavailable

46

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

47

BOLT, SOCKET

91314-06030-00

Unavailable

48

COVER, DECOMP LEVER

4WM-12275-00-00

Unavailable

49

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

50

BOLT, STUD

90116-12240-00

Unavailable

51

BOLT, STUD (4X7)

90116-10344-00

Unavailable

52

O-RING(N21)

93210-750A1-00

Unavailable

53

BOLT STUD 276113610000

90116-08065-00

Unavailable

54

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

55

GASKET

214-11198-01-00

Unavailable

56

HOLDER, CLUTCH CABLE

4WM-15441-00-00

Unavailable

57

COVER

5YU-15413-00-00

Unavailable
