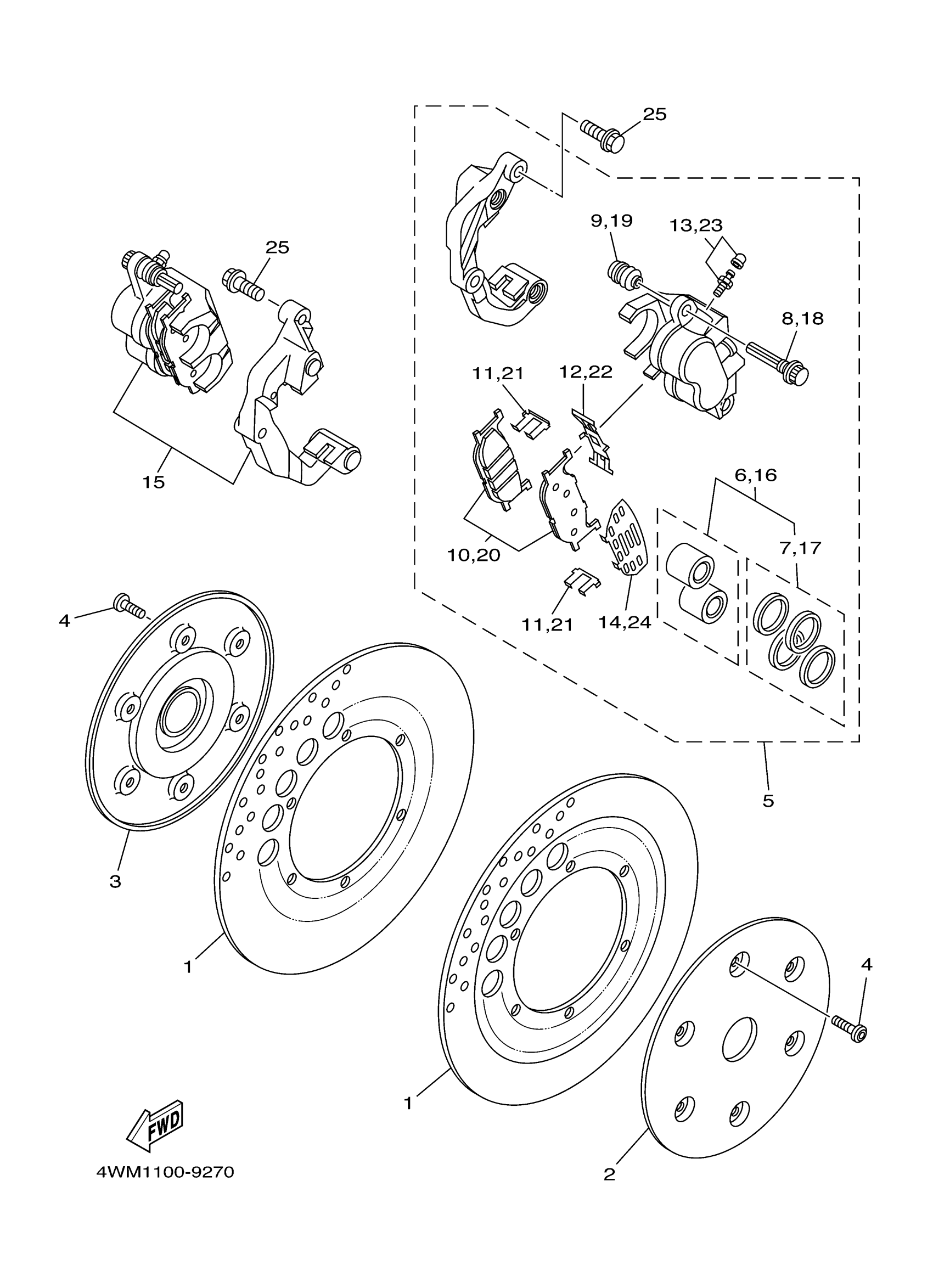

Yamaha XV1600AMC (ROAD STAR CA) 4WM5 2000 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

2

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

3

RING, WHEEL 2 (RIGHT)

4WM-2515A-00-00

$188.99

4

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

5

CALIPER ASSY (LEFT)

4WM-2580T-01-00

Unavailable

6

PISTON ASSY, CALIPER

3JB-25802-00-00

$142.99

7

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

8

PIN, SLIDE

5JW-25914-10-00

$22.99

9

BOOT 2

4TT-25937-00-00

$16.49

10

BRAKE PAD KIT

4WM-W0045-00-00

$44.99

11

SUPPORT, PAD

4BP-25919-00-00

$44.99

12

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

13

BLEED SCREW KIT

15B-W0048-00-00

$19.99

14

SHIM, CALIPER

5BN-25827-00-00

Unavailable

15

CALIPER ASSY (RIGHT)

4WM-2580U-01-00

$577.99

16

PISTON ASSY, CALIPER

3JB-25802-00-00

$142.99

17

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

18

PIN, SLIDE

5JW-25914-10-00

$22.99

19

BOOT 2

4TT-25937-00-00

$16.49

20

BRAKE PAD KIT

4WM-W0045-00-00

$44.99

21

SUPPORT, PAD

4BP-25919-00-00

$44.99

22

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

23

BLEED SCREW KIT

15B-W0048-00-00

$19.99

24

SHIM, CALIPER

5BN-25827-00-00

Unavailable

25

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
