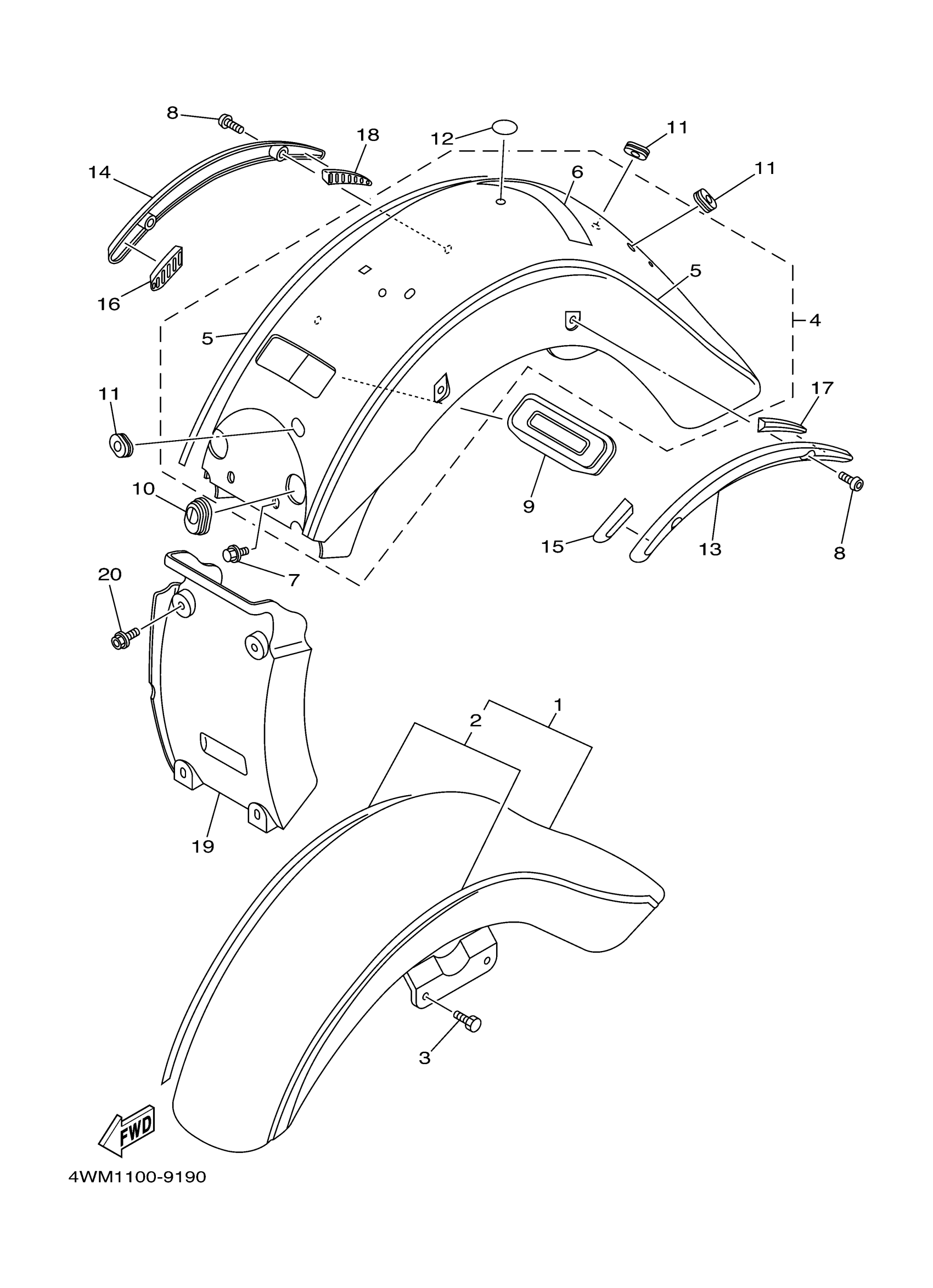

Yamaha XV1600AMC (ROAD STAR CA) 4WM5 2000 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY (YAMAHA BLACK)
4WM-Y2150-50-33
Unavailable
1
FRONT FENDER ASSY (MIYABI MAROON) (BRIGHT CHERRY RED)
4WM-Y2150-60-5X
Unavailable
1
FRONT FENDER ASSY (DARK GRAYISH PURPLE METALLIC 1)
4WM-Y2150-90-P0
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MIYABI MAROON)
4WM-21570-50-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
4WM-21570-60-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK GRAYISH PURPLE METALLIC 1)
4WM-21570-70-00
Unavailable
4
REAR FENDER C0MP.
99999-03410-00
Unavailable
4
REAR FENDER C0MP.
99999-03417-00
Unavailable
4
REAR FENDER COMP
99999-03421-00
Unavailable
5
. GRAPHIC SET,REAR FENDER (MIYABI MAROON)
4WM-2165A-50-00
Unavailable
5
. GRAPHIC SET,REAR FENDER (YAMAHA BLACK)
4WM-2165A-60-00
Unavailable
5
. GRAPHIC SET,REAR FENDER (DARK GRAYISH PURPLE METALLIC 1)
4WM-2165A-70-00
Unavailable
8
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
9
DAMPER
4WM-21649-00-00
Unavailable
10
DAMPER 1
4WM-21638-00-00
Unavailable
11
GROMMET (438)
90480-15061-00
Unavailable
12
SEAL 2
4NK-21735-00-00
Unavailable
13
STAY 1
4WM-2164F-00-00
Unavailable
14
STAY 2
4WM-2164G-00-00
Unavailable
15
DAMPER 1
4WM-21541-00-00
Unavailable
16
DAMPER 2
4WM-21542-00-00
Unavailable
17
DAMPER
4WM-2174X-00-00
Unavailable
18
DAMPER
4WM-2174Y-00-00
Unavailable
19
GUARD, MUD (YAMAHA BLACK)
4WM-21629-00-33
Unavailable
19
GUARD, MUD (BRIGHT CHERRY RED)
4WM-21629-00-FW
Unavailable
19
GUARD, MUD (DARK GRAYISH PURPLE METALLIC 1)
4WM-21629-00-P1
Unavailable
20
BOLT, WITH WASHER
90119-06226-00
Unavailable
