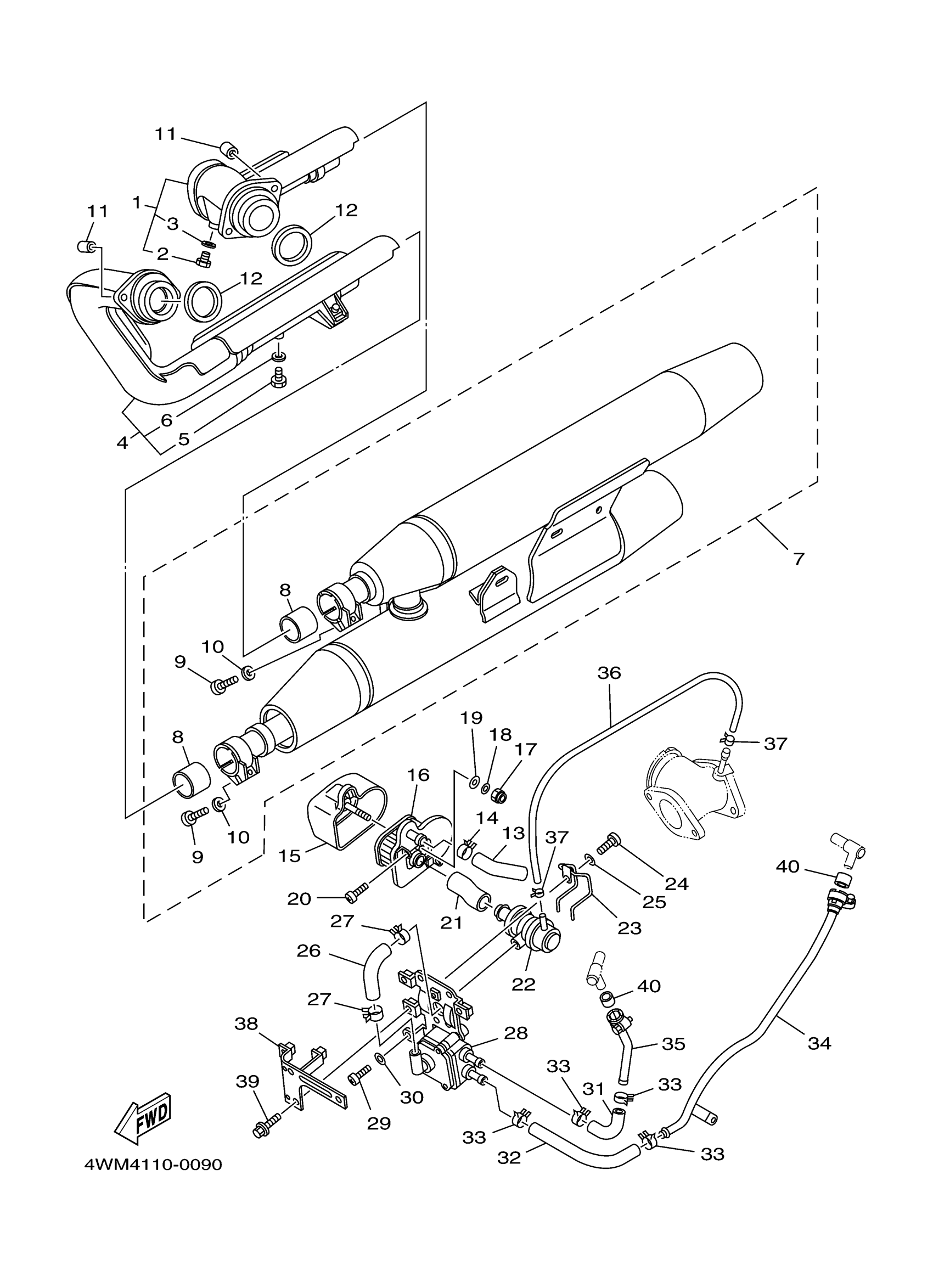

Yamaha XV1600AMC (ROAD STAR CA) 4WM5 2000 EXHAUST Diagram
#
1
EXHAUST PIPE ASSY 1
4WM-14610-00-00
Unavailable
4
EXHAUST PIPE ASSY 2
4WM-14620-00-00
Unavailable
7
MUFFLER ASSY 1
4WM-14710-03-00
Unavailable
8
GASKET, SILENCER
3XW-14755-00-00
Unavailable
10
.. WASHER, PLATE
92990-08600-00
Unavailable
13
HOSE, BEND 5
4WM-14885-00-00
Unavailable
16
CAP, CASE
4WM-14858-00-00
Unavailable
17
NUT, U
95617-05100-00
Unavailable
18
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
19
WASHER, PLATE (463)
90202-05057-00
Unavailable
20
SCREW, PAN
98517-06012-00
Unavailable
21
HOSE, BEND 2
4WM-14882-00-00
Unavailable
22
AIR CUT VALVE ASS'Y
4WM-14840-00-00
Unavailable
23
CLAMP
90462-20248-00
Unavailable
24
SCREW, PAN
98507-06010-00
Unavailable
25
WASHER(6TA)
92907-06600-00
Unavailable
26
HOSE, BEND 3
4WM-14883-00-00
Unavailable
28
REED VALVE ASSY
4WM-14808-00-00
Unavailable
29
SCREW, PAN
98507-06010-00
Unavailable
30
WASHER(6TA)
92907-06600-00
Unavailable
31
HOSE, BEND 4
4WM-14884-00-00
Unavailable
32
HOSE, BEND 6
4WM-14886-00-00
Unavailable
33
CLIP
90468-08104-00
Unavailable
34
PIPE 1
4WM-14871-00-00
Unavailable
35
PIPE 2
4WM-14872-00-00
Unavailable
36
HOSE (L770)
90445-090G9-00
Unavailable
37
CLIP(41W)
90467-08092-00
Unavailable
38
BRACKET 2
4WM-14868-00-00
Unavailable
39
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
40
GASKET, MUFFLER
42H-14714-10-00
Unavailable
