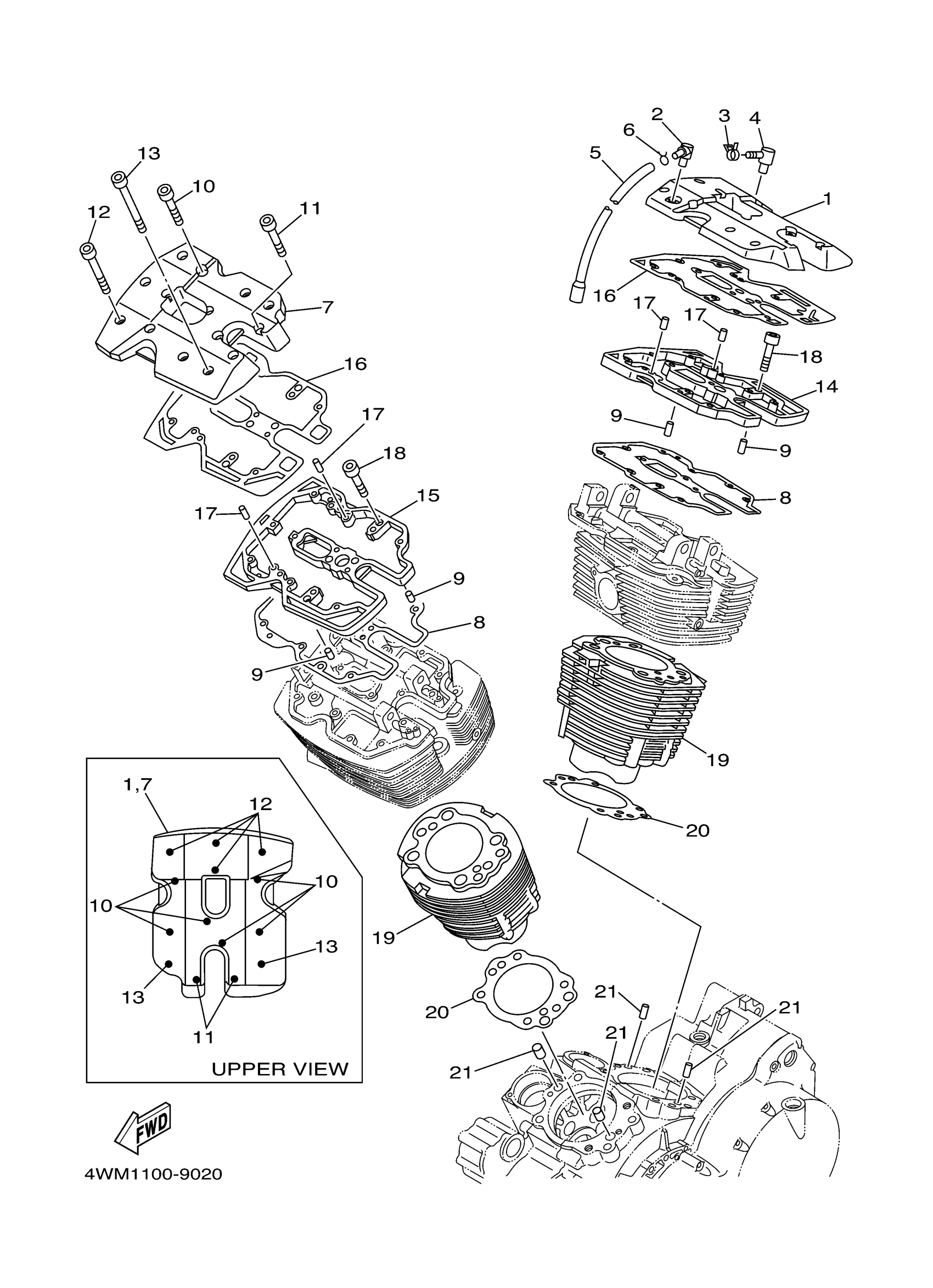

Yamaha XV1600AMC (ROAD STAR CA) 4WM5 2000 CYLINDER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

4WM-11191-00-00

Unavailable

2

BREATHER

4GL-15371-01-00

Unavailable

3

CLIP (7K7)

90467-11044-00

$4.89

4

PIPE, BREATHER 3

4WM-11126-00-00

Unavailable

5

PIPE, BREATHER 1

4WM-11166-00-00

Unavailable

6

CLIP(6M6)

90467-13M13-00

$6.82

7

COVER, CYLINDER HEAD 2

4WM-11192-00-00

Unavailable

8

GASKET, HEAD COVER 1

4WM-11193-01-00

$38.52

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

BOLT,SOCKET HEAD

91314-06025-00

$6.22

11

BOLT, SOCKET

91314-06035-00

$5.75

12

BOLT,SOCKET

91314-06050-00

$5.75

13

BOLT, SOCKET

91314-06065-00

$6.22

14

COVER 1

4WM-1111M-00-00

Unavailable

15

COVER 2

4WM-1111N-00-00

Unavailable

16

GASKET, HEAD COVER 2

4WM-11194-01-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$5.26

18

BOLT, SOCKET

91314-06040-00

Unavailable

19

CYLINDER 1

4WM-11311-00-00

Unavailable

20

GASKET, CYLINDER

4WM-11351-00-00

Unavailable

21

COLLAR (4X7)

90387-087A5-00

Unavailable
