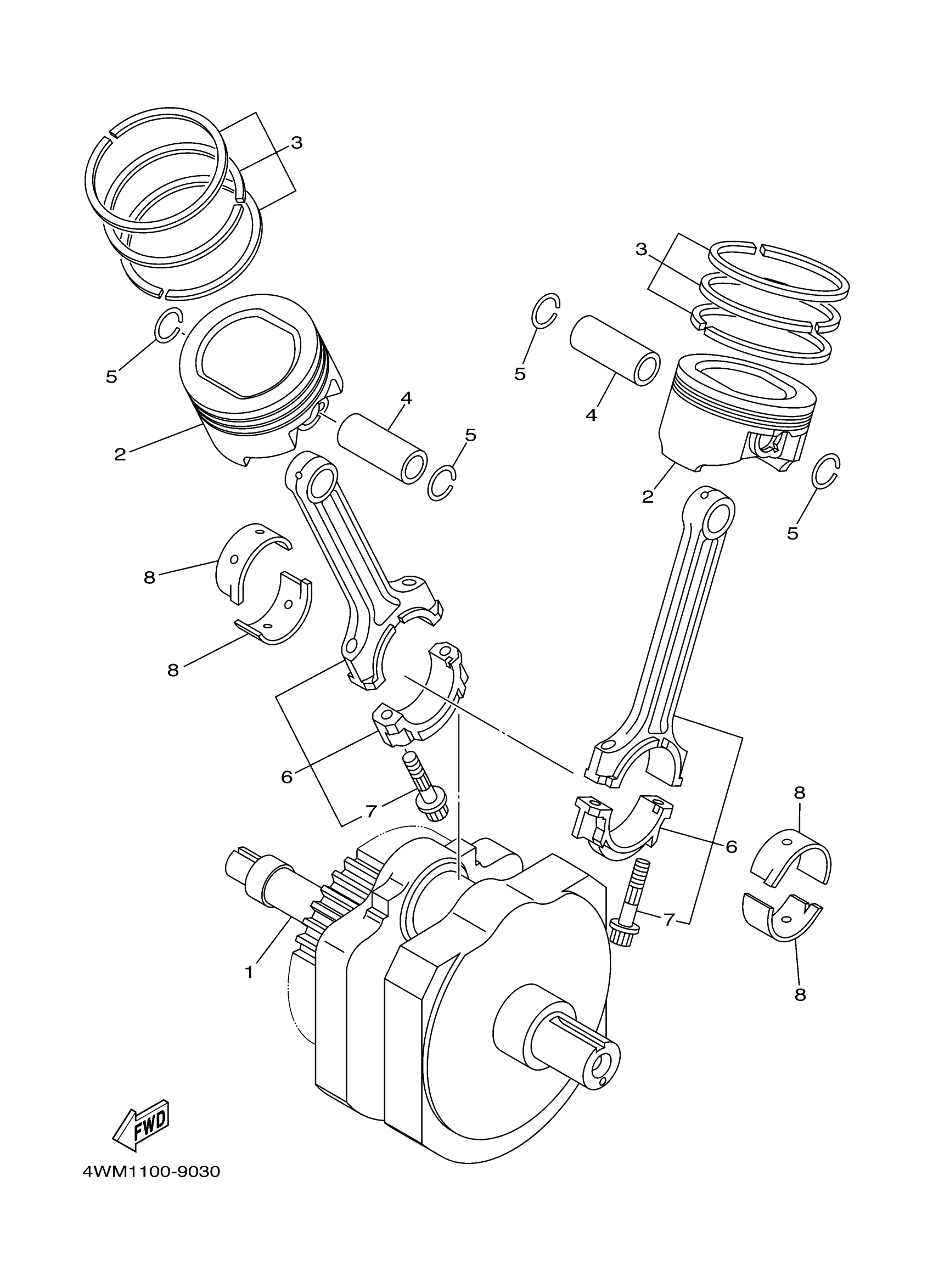

Yamaha XV1600AMC (ROAD STAR CA) 4WM5 2000 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

4WM-11400-02-00

$984.99

2

PISTON (STD)

4WM-11631-01-00

$183.99

3

PISTON RING SET

34L-11610-00-00

$70.99

4

PIN, PISTON

4WM-11633-00-00

Unavailable

5

CIRCLIP 256116340000

93450-24028-00

$5.60

6

CONNECTING ROD ASSY

4WM-11650-00-00

Unavailable

7

BOLT, CONNECTING ROD

5PX-11654-00-00

$7.99

8

PLANE BEARING, CONNECTING ROD

4WM-11656-00-00

Unavailable

8

PLANE BEARING, CONNECTING ROD

4WM-11656-10-00

$14.49

8

PLANE BEARING, CONNECTING ROD

4WM-11656-20-00

Unavailable

8

PLANE BEARING, CONNECTING ROD

4WM-11656-30-00

Unavailable

8

PLANE BEARING, CONNECTING ROD

4WM-11656-40-00

Unavailable
