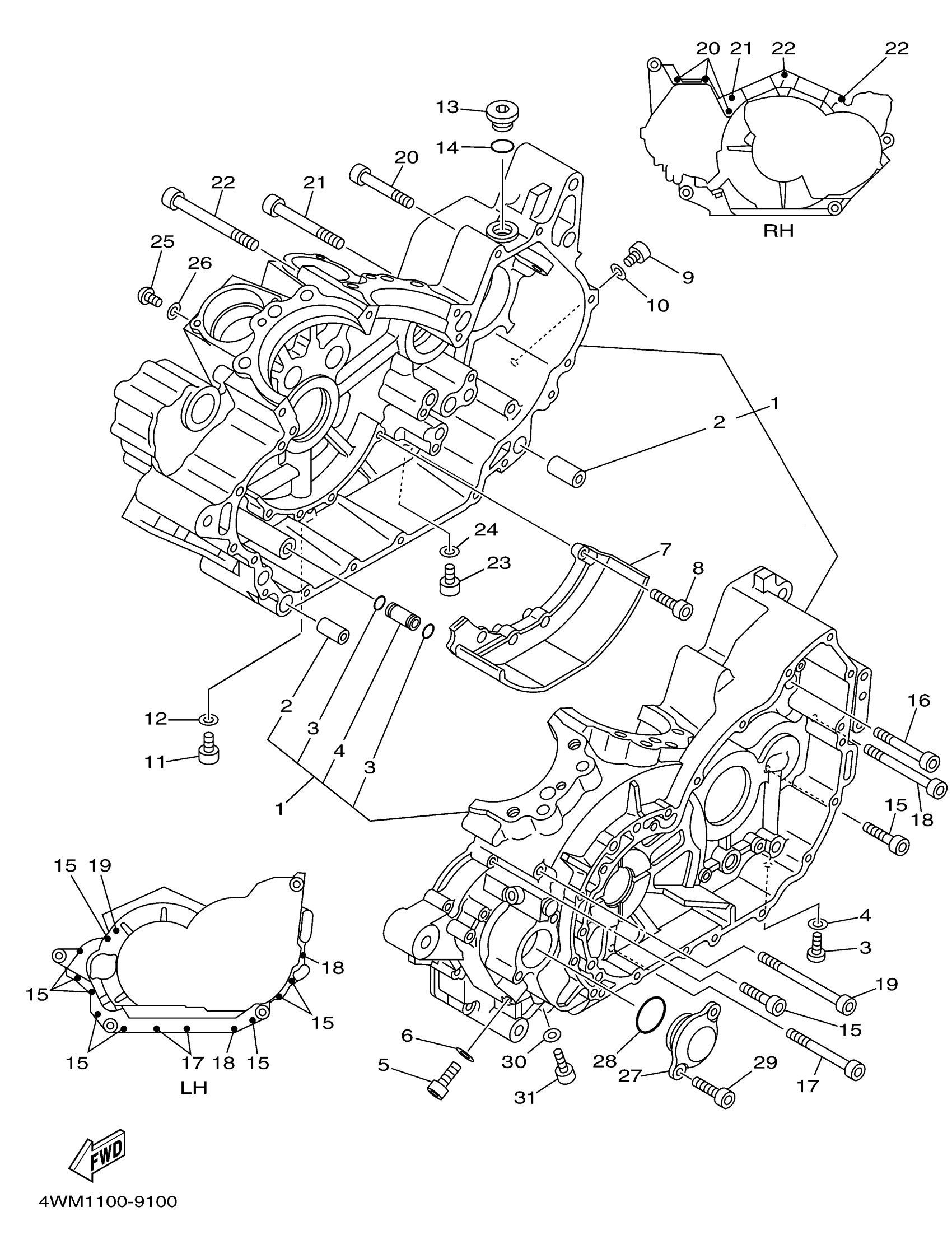

Yamaha XV1600AMC (ROAD STAR CA) 4WM5 2000 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
4WM-15100-03-00
Unavailable
4
NOZZLE 1
4WM-15138-00-00
Unavailable
7
PLATE, BUFFLE 1
4WM-15123-00-00
Unavailable
8
BOLT,SOCKET
91317-06020-00
Unavailable
10
GASKET
90430-05126-00
Unavailable
16
BOLT, SOCKET
91314-06060-00
Unavailable
17
BOLT,SOCKET
91314-06075-00
Unavailable
18
BOLT, SOCKET
91317-06085-00
Unavailable
19
BOLT,SOCKET
91314-06105-00
Unavailable
20
BOLT, SOCKET
91314-06060-00
Unavailable
21
BOLT,SOCKET
91314-08080-00
Unavailable
22
BOLT, SOCKET
91314-08100-00
Unavailable
23
BOLT, FLANGE(2UJ)
95024-08012-00
Unavailable
25
BOLT, BUTTON HEAD(4NK)
92014-05010-00
Unavailable
26
GASKET
90430-05126-00
Unavailable
27
COVER, CAP
4WM-15417-01-00
Unavailable
28
O-RING (5Y1)
93210-37532-00
Unavailable
29
BOLT, SOCKET
91314-06016-00
Unavailable
30
GASKET
90430-05126-00
Unavailable
