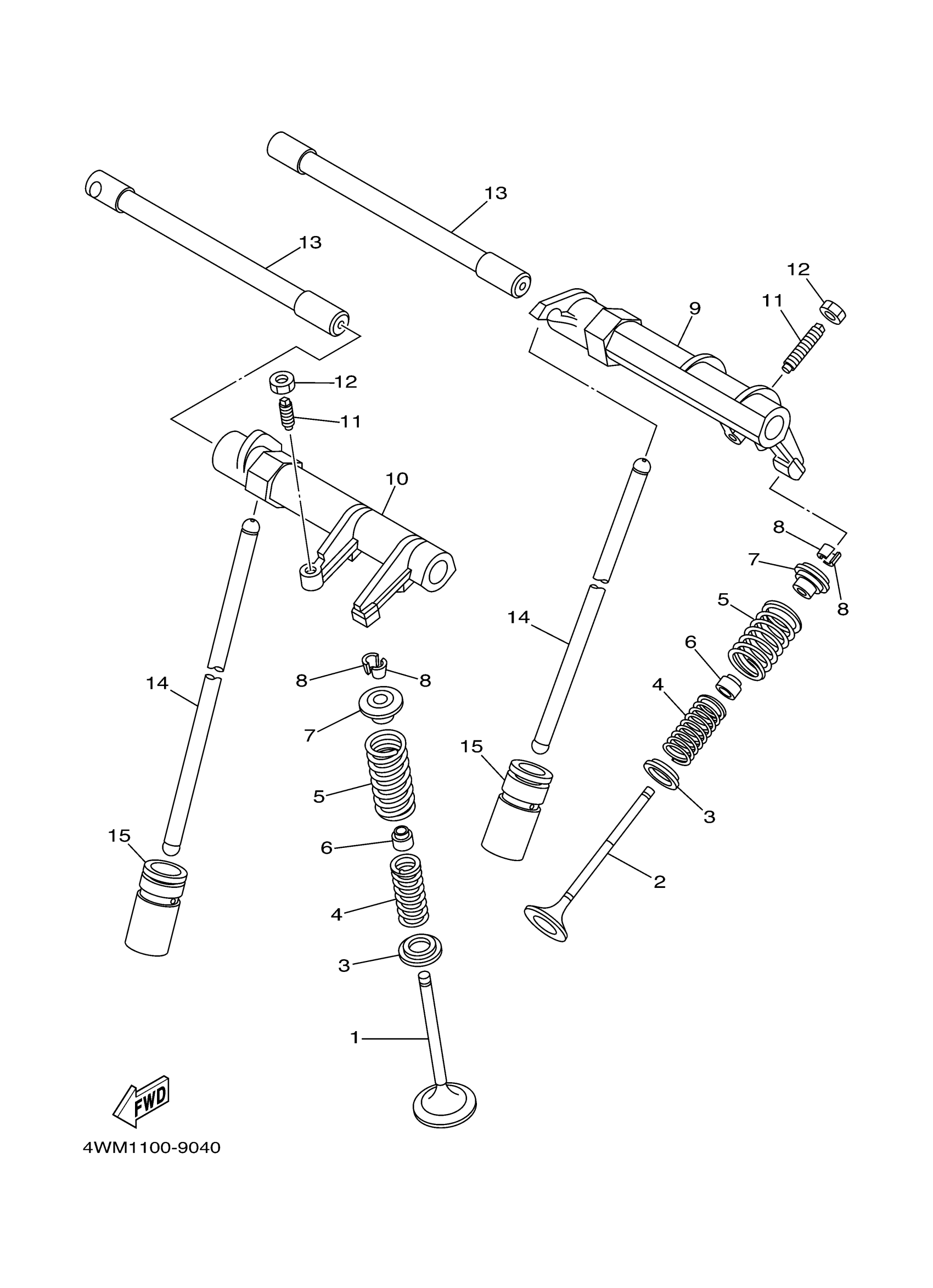

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 VALVE Diagram

VALVE, INTAKE

5YU-12111-00-00

$24.99

VALVE, EXHAUST

5YU-12121-00-00

$70.99

SEAT, VALVE SPRING

26H-12116-00-00

Unavailable

SPRING, VALVE INNER

4WM-12113-00-00

$7.99

SPRING, VALVE OUTER

4WM-12114-00-00

$9.99

SEAL, VALVE STEM

4KM-12119-00-00

$15.49

RETAINER, VALVE SPRING

26H-12117-00-00

$7.99

COTTER, VALVE

4G0-12118-00-00

$7.99

ARM, VALVE ROCKER

4WM-12151-00-00

Unavailable

ARM, VALVE ROCKER 2

4WM-12161-00-00

Unavailable

SCREW, VALVE ADJUSTING

31G-12159-02-00

$9.99

NUT, LOCK

31G-12158-00-00

$6.99

SHAFT, ROCKER

4WM-12146-00-00

Unavailable

ROD, VALVE PUSH

4WM-12154-00-00

Unavailable

LIFTER, VALVE

4WM-12153-10-00

$77.99
