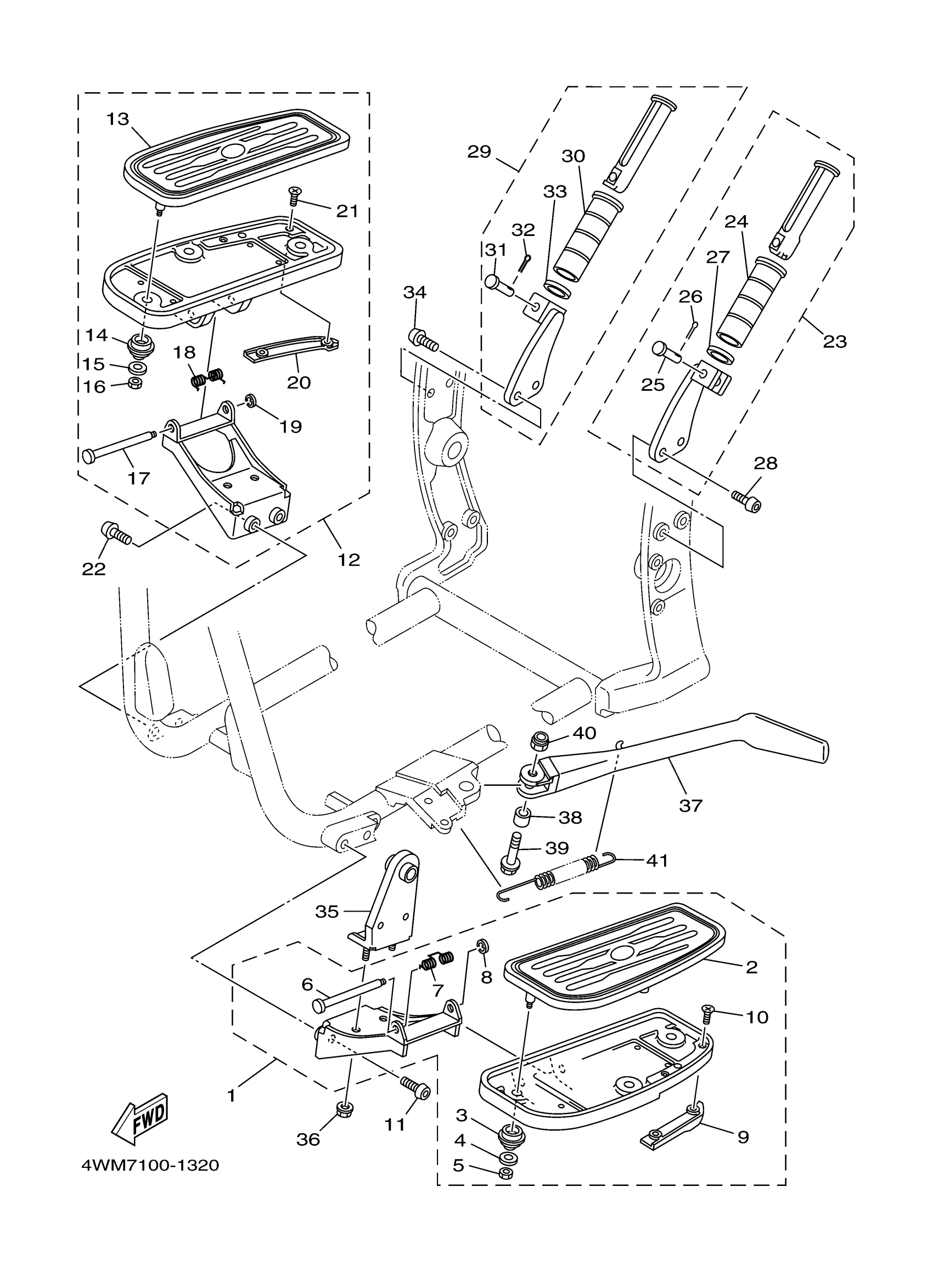

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 STAND FOOTREST Diagram

FRONT FOOTREST ASSY (LEFT)

4WM-27410-20-00

Unavailable

COVER, FOOTREST

4WM-27413-00-00

Unavailable

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

WASHER PLATE 829771780000

90201-05033-00

$10.49

NUT, U

95617-05100-00

$9.49

SHAFT

3D8-27427-00-00

$7.99

SPRING, RETURN

4NK-27426-00-00

$6.99

CIRCLIP(53L)

99001-06600-00

$1.01

MOLE 1

4WM-27496-00-00

Unavailable

SCREW, FLAT

98707-05010-00

Unavailable

BOLT, BUTTON

92017-10030-00

$4.99

FRONT FOOTREST ASSY (RIGHT)

4WM-27420-20-00

Unavailable

COVER, FOOTREST

4WM-27423-00-00

Unavailable

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

WASHER PLATE 829771780000

90201-05033-00

$10.49

NUT, U

95617-05100-00

$9.49

SHAFT

3D8-27427-00-00

$7.99

SPRING, RETURN

4NK-27426-00-00

$6.99

CIRCLIP(53L)

99001-06600-00

$1.01

MOLE 2

4WM-27497-00-00

Unavailable

SCREW, FLAT

98707-05010-00

Unavailable

BOLT, BUTTON

92017-10030-00

$4.99

REAR FOOTREST ASSY 1

4WM-27430-11-00

Unavailable

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

PIN, CLEVIS

90240-06146-00

Unavailable

PIN, COTTER (648)

91490-20015-00

Unavailable

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

BOLT

90111-08002-00

Unavailable

REAR FOOTREST ASSY 2

4WM-27440-11-00

Unavailable

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

PIN, CLEVIS

90240-06146-00

Unavailable

PIN, COTTER (648)

91490-20015-00

Unavailable

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

BOLT

90111-08002-00

Unavailable

BRACKET 3

4WM-27443-10-00

Unavailable

NUT, SELF-LOCKING

90185-08169-00

Unavailable

STAND, SIDE

4WM-27311-00-00

Unavailable

COLLAR(4NK)

90387-1007K-00

Unavailable

BOLT, FLANGE

95814-10040-00

Unavailable

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
