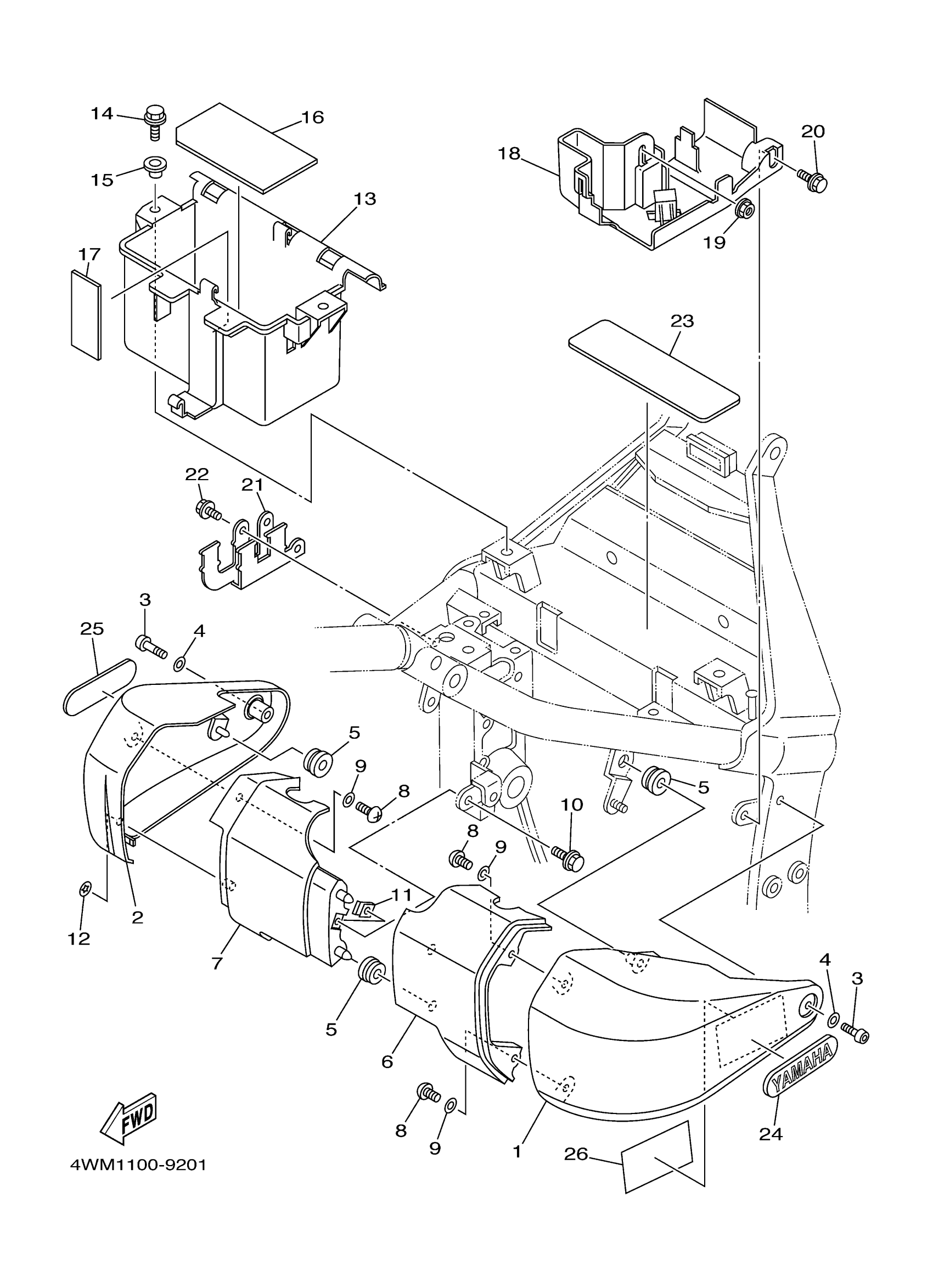

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 (SILVER 3)

4WM-21711-00-P7

Unavailable

2

COVER, SIDE 2 (SILVER 3)

4WM-21721-00-P7

Unavailable

3

SCREW

90149-06328-00

$5.60

4

WASHER, PLATE

90202-06170-00

Unavailable

5

GROMMET(4FU)

90480-13567-00

$4.99

6

COVER 9 (SILVER 3)

4WM-2117X-00-P7

Unavailable

7

COVER 10 (SILVER 3)

4WM-2117Y-00-P7

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER(6TA)

92907-06600-00

$2.72

10

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

NUT, SPRING(8AJ)

90183-05068-00

$10.49

13

BOX, BATTERY

4WM-2177G-00-00

Unavailable

14

BOLT, FLANGE

95817-06014-00

Unavailable

15

COLLAR (3L1)

90387-07717-00

$8.49

16

SEAT, BATTERY

51Y-82122-00-00

Unavailable

17

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

18

STAY, SIDE COVER 1

4WM-2172E-00-00

Unavailable

19

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

20

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

21

BRACKET 1

4WM-2172K-00-00

Unavailable

22

BOLT, FLANGE

95817-06010-00

Unavailable

23

SHEET 2

4WM-21267-00-00

Unavailable

24

EMBLEM 1

3LS-21781-00-00

Unavailable

25

EMBLEM 1

3LS-21781-00-00

Unavailable

26

PLATE, EPA 2 (CALIFORNIA)

4WM-2179R-40-00

Unavailable

26

PLATE, EPA 1 (NON CALIFORNIA)

4WM-2179V-40-00

Unavailable
