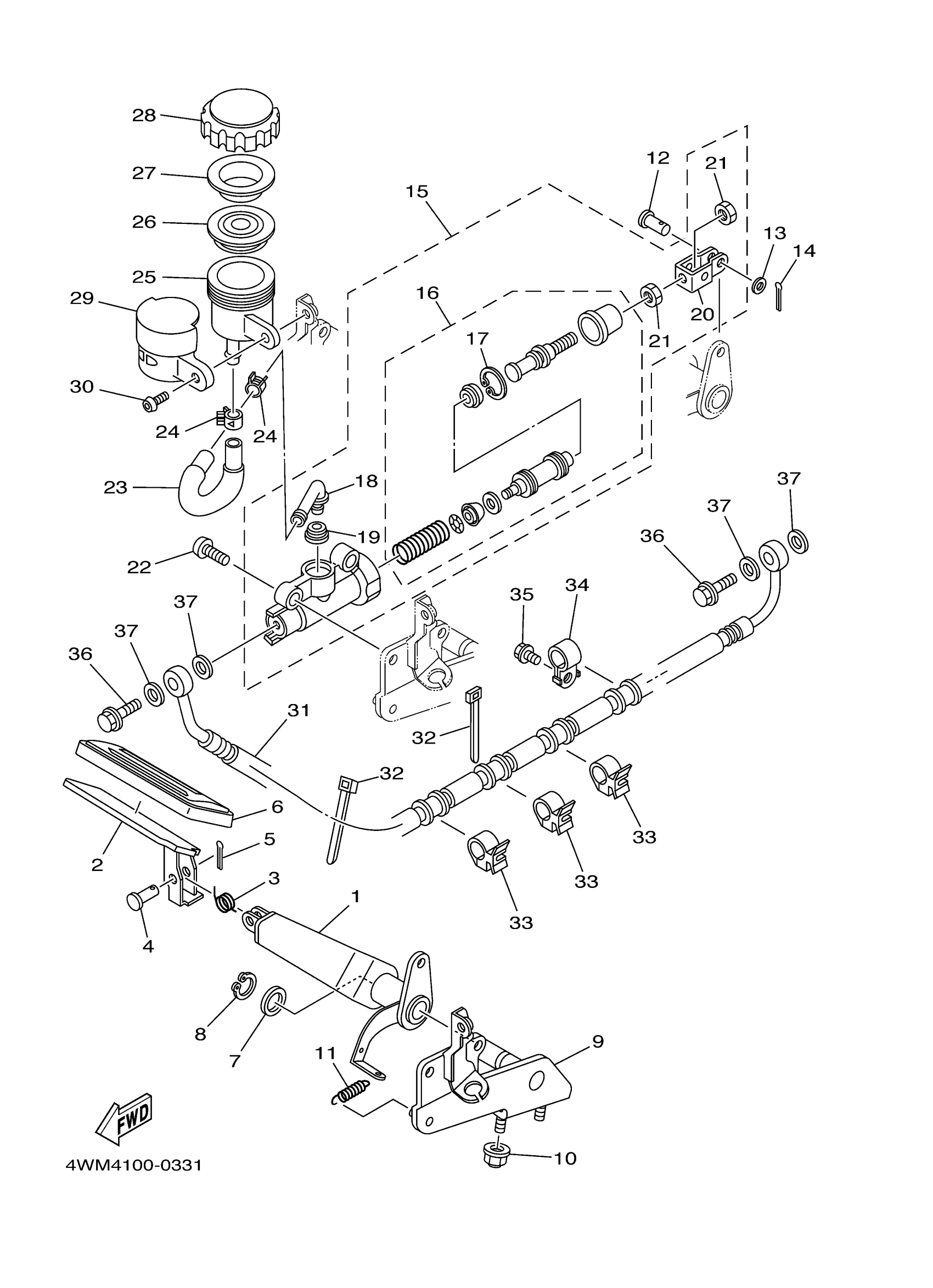

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4WM-27211-00-00

Unavailable

2

PEDAL, BRAKE

4WM-27242-00-00

Unavailable

3

SPRING, TORSION

90508-18023-00

$7.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

CAP

4WM-27285-00-00

Unavailable

7

WASHER, PLATE(2GV)

90201-152L1-00

$10.49

8

CIRCLIP(1AR)

99009-15400-00

$8.49

9

BRACKET 4

4WM-2741L-00-00

Unavailable

10

NUT, SELF-LOCKING

90185-08169-00

$8.49

11

SPRING, TENSION

90506-20009-00

$5.60

12

PIN W/HOLE 307181180000

90240-08013-00

$8.49

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

PIN, COTTER

91490-16020-00

Unavailable

15

RR. MASTER CYLINDER ASSY.

4BP-2583V-01-00

$268.99

16

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

17

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

Unavailable

18

JOINT

4BP-2582A-00-00

Unavailable

19

O-RING

4BP-2585F-01-00

Unavailable

20

JOINT

4BP-27222-02-00

Unavailable

21

NUT

90170-08010-00

Unavailable

22

BOLT, BUTTON HEAD(3YF)

92014-08025-00

Unavailable

23

HOSE, RESERVOIR

4WM-25895-00-00

Unavailable

24

CLIP (5K4)

90467-14057-00

Unavailable

25

TANK, RESERVOIR

31A-25894-01-00

Unavailable

26

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

27

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

28

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

29

COVER, RESERVOIR TANK

4NK-25888-00-00

Unavailable

30

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

31

HOSE, BRAKE 4

4WM-2581J-00-00

Unavailable

32

BAND

1UA-82591-00-00

Unavailable

33

CLAMP(4HM)

90464-15192-00

Unavailable

34

CLAMP 1

90461-08031-00

Unavailable

35

BOLT, FLANGE

95817-06012-00

Unavailable

36

BOLT, UNION(3GM)

90401-10159-00

Unavailable

37

WASHER, PLATE(481)

90201-10118-00

Unavailable
