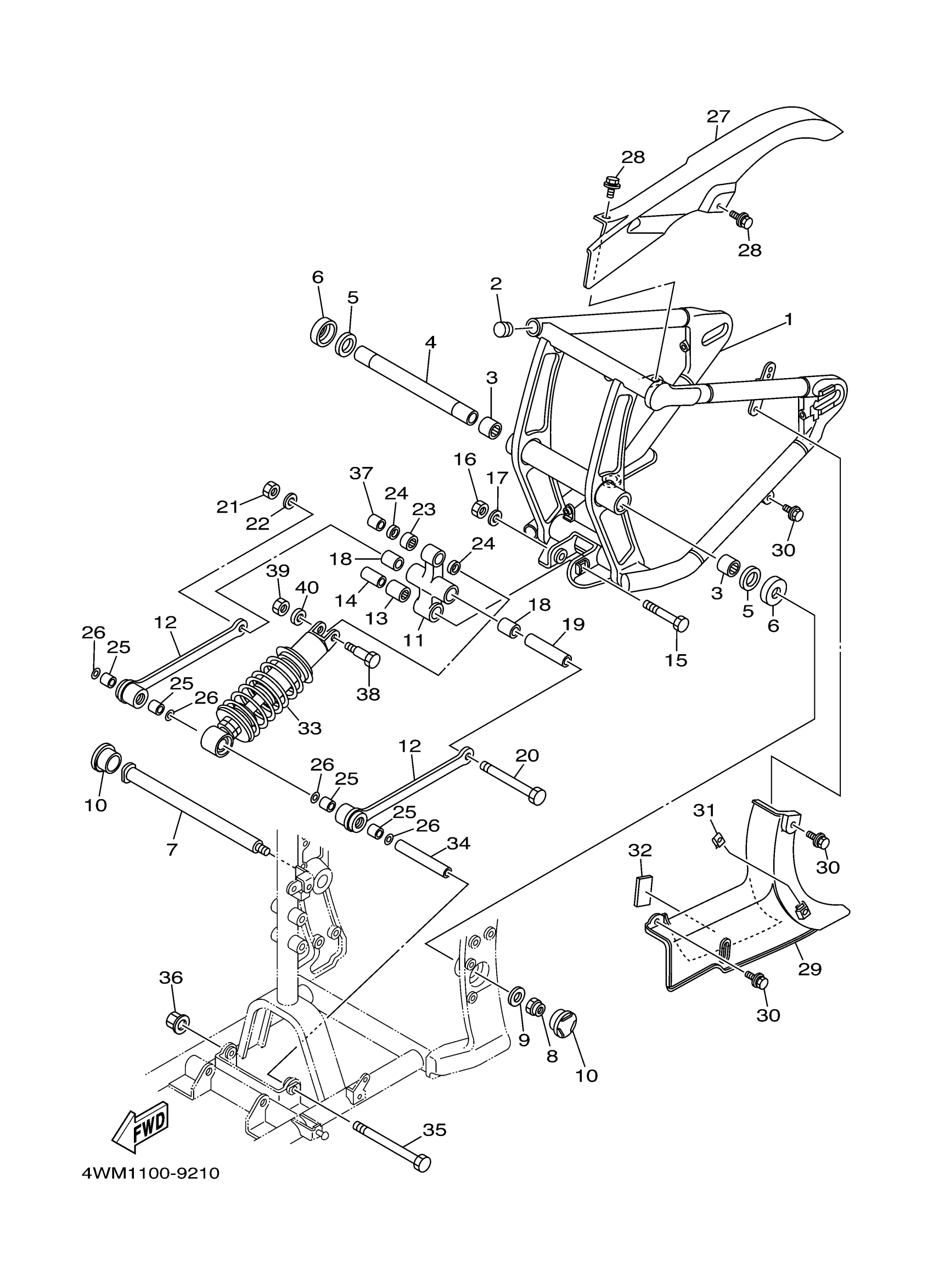

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

4WM-22110-00-00

Unavailable

2

PLUG, TAPER(2HR)

90336-28053-00

$10.49

3

BEARING, CYLINDRICAL(36Y)

93317-42550-00

Unavailable

4

BUSH

4WM-22184-00-00

Unavailable

5

SHIM

3XV-22127-00-00

Unavailable

6

COVER, THRUST 1

3FV-22128-00-00

Unavailable

7

AXLE, WHEEL

3GM-25381-10-00

Unavailable

8

NUT, SELF-LOCKING

90185-18009-00

$18.99

9

WASHER, PLATE (5K7)

90201-18264-00

$8.49

10

COVER

4KM-2219X-00-00

$14.49

11

ARM, RELAY

4WM-2217A-00-00

Unavailable

12

ARM 1

4WM-2217M-00-00

Unavailable

13

BEARING, CYLINDRICAL(2GH)

93317-42060-00

$46.99

14

COLLAR (34L)

90387-122J6-00

Unavailable

15

BOLT

90101-12002-00

Unavailable

16

NUT, U (4PM)

95617-12100-00

Unavailable

17

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

18

BEARING, CYLINDRICAL(2GH)

93317-41761-00

Unavailable

19

COLLAR(2GH)

90387-126T1-00

Unavailable

20

BOLT(2GH)

90101-12673-00

Unavailable

21

NUT, U (4PM)

95617-12100-00

Unavailable

22

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

23

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

24

OIL SEAL

93109-17071-00

Unavailable

25

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

Unavailable

26

O-RING (1L9)

93210-18322-00

Unavailable

27

CASE, CHAIN

4WM-22311-00-00

Unavailable

28

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

29

CASE, CHAIN 2

5VN-22312-00-00

Unavailable

30

BOLT, WITH WASHER

90119-06001-00

Unavailable

31

NUT, SPRING(4ES)

90183-06069-00

Unavailable

32

DAMPER

22F-2139X-00-00

Unavailable

33

SHOCK ABSORBER ASSY, REAR

4WM-22210-00-00

Unavailable

34

COLLAR

90387-1214E-00

Unavailable

35

BOLT(3GD)

90101-12695-00

Unavailable

36

NUT, U FLANGE

95607-12200-00

Unavailable

37

COLLAR(3TJ)

90387-127W0-00

Unavailable

38

BOLT(1WG)

90101-10659-00

Unavailable

39

NUT, U

95617-10100-00

Unavailable

40

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
